Cylinder Bore Honing: Honing

How to use this manual .

1. Cylinder Bore - Honing

   Preconditions

   • Piston/Connecting Rod Assembly Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Measure the cylinder bores - Refer to: Block and Piston Inspection ()  or Cylinder Bore Honing ()

   If the engine block is to be reused, hone the cylinders and remeasure the bores. Only scored or scratched cylinder bore must be honed.

   2. Hone the cylinder bores with honing oil and a fine (400 grit) stone.

   NOTE:

   • Use only a rigid hone with 400 grit or finer stone such as Sunnen, Ammco, or equivalent.
   • Do not use stones that are worn or broken.

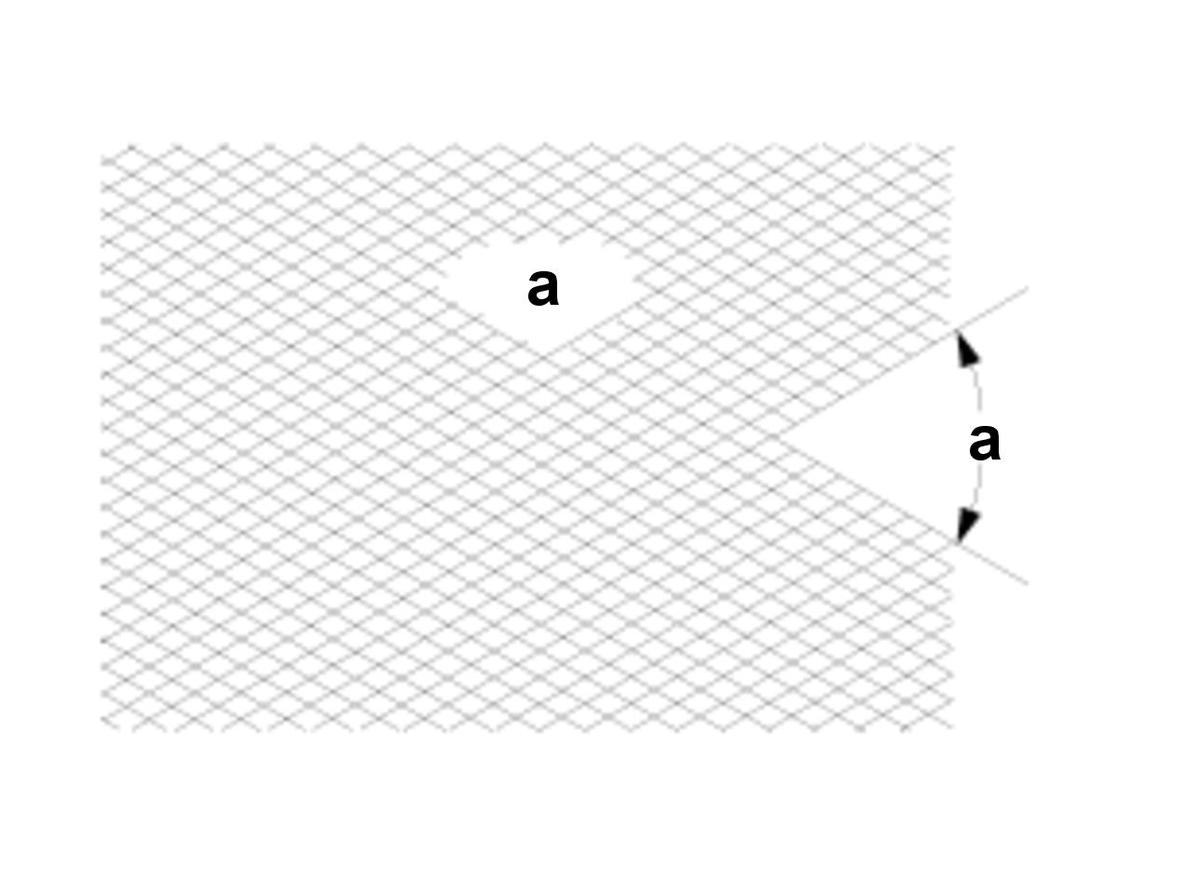

   Honing Pattern

   Standard/Standard Value
   a	Within 30-60 degree, cross-hatch pattern

   3. When honing is complete, thoroughly clean the engine block of all metal particles. Wash the cylinder bores with hot soapy water, then dry and oil them immediately to prevent rusting.

   NOTE:

   Never use solvent, it will only redistribute the grit on the cylinder walls.
