DTC P2127: Inspection

APP Sensor Inspection

NOTE:  Since there is no direct method to test the component itself, troubleshooting is performed on the related components.

Test Procedure

Unit output voltage inspection

• Preparation
  • APP sensor connector (6P): disconnected

• Procedure
  • Jump the APP sensor connector (6P) terminals No. 1 and No. 3 with a jumper wire.
  • Turn the vehicle to the ON mode.
  • Confirm the HDS [APP Sensor B Voltage].

	(Disconnected) APP sensor connector (6P) female terminals
	Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
  • HDS [APP Sensor B Voltage] value is more than 0.12 V  .

Results

• If it is normal, there is a problem with the accelerator pedal module.
• If it is abnormal, there is a problem with other related components.

VCC5, APS2 Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
  • APP sensor connector (6P): disconnected
  • PCM connector B (72P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

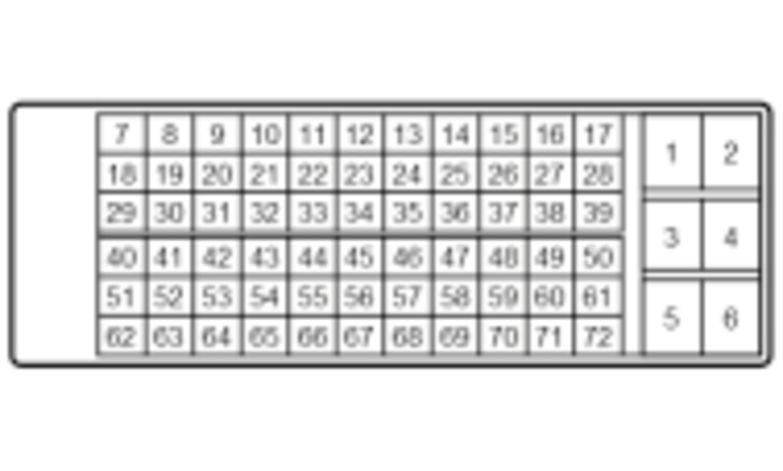

			(Disconnected) APP sensor connector (6P) female terminals	(Disconnected) PCM connector B (72P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	APS2 open wire inspection	OFF			There is less than 1 Ω
	VCC5 open wire inspection	OFF			There is less than 1 Ω
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	APS2 shorted to ground inspection	OFF			There is more than 1 MΩ

Results

• If it is abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
