Fuel Line/Quick-Connect Fitting Installation: Notes

NOTICE:

• Check the contact area (n) of the line (o) for dirt, and clean it if needed. (Figure 10)
• If the quick-connect fittings is hard to connect, apply engine oil on the line end (p). (Figure 10)

Lubricant Specifications (Figure 10)

Application Position	Type	Amount
p	Engine Oil	Small amount

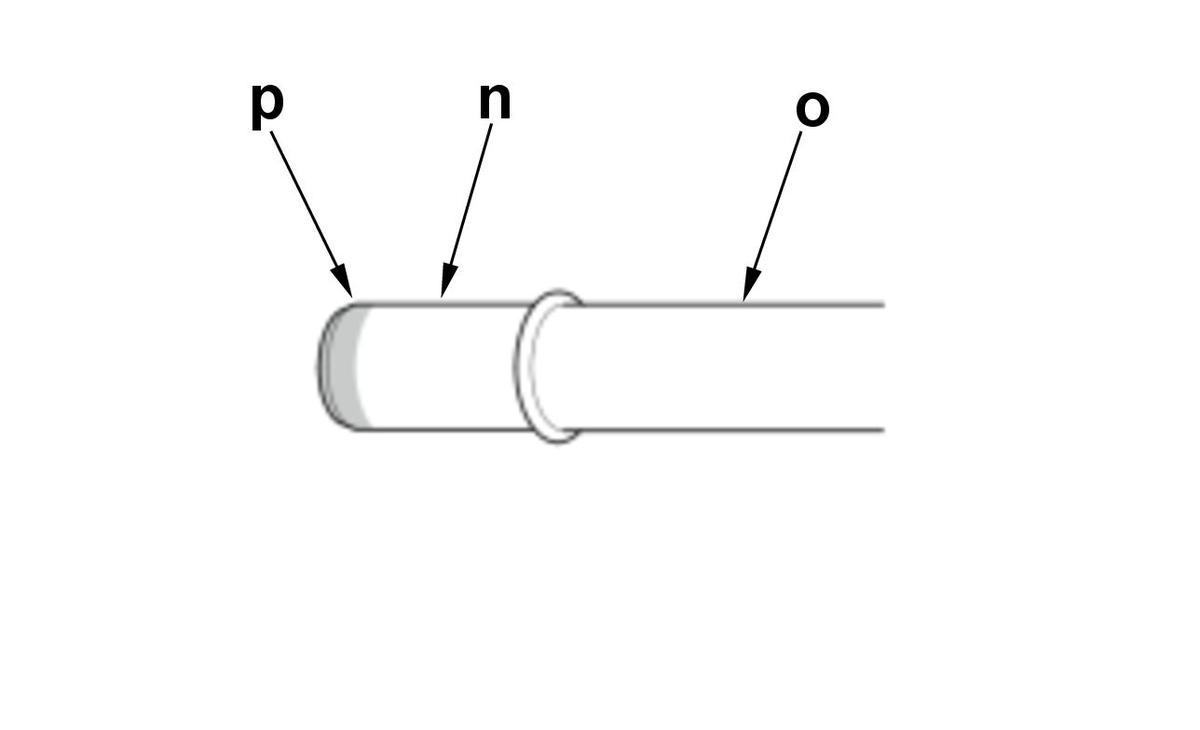

Figure 10

Courtesy of HONDA, U.S.A., INC.
