Repair Procedure

WARNING:

SRS components are located in this area. Before doing repairs or service:
- Review the SRS component locations .
- Review the precautions and procedures .

How to use this manual .

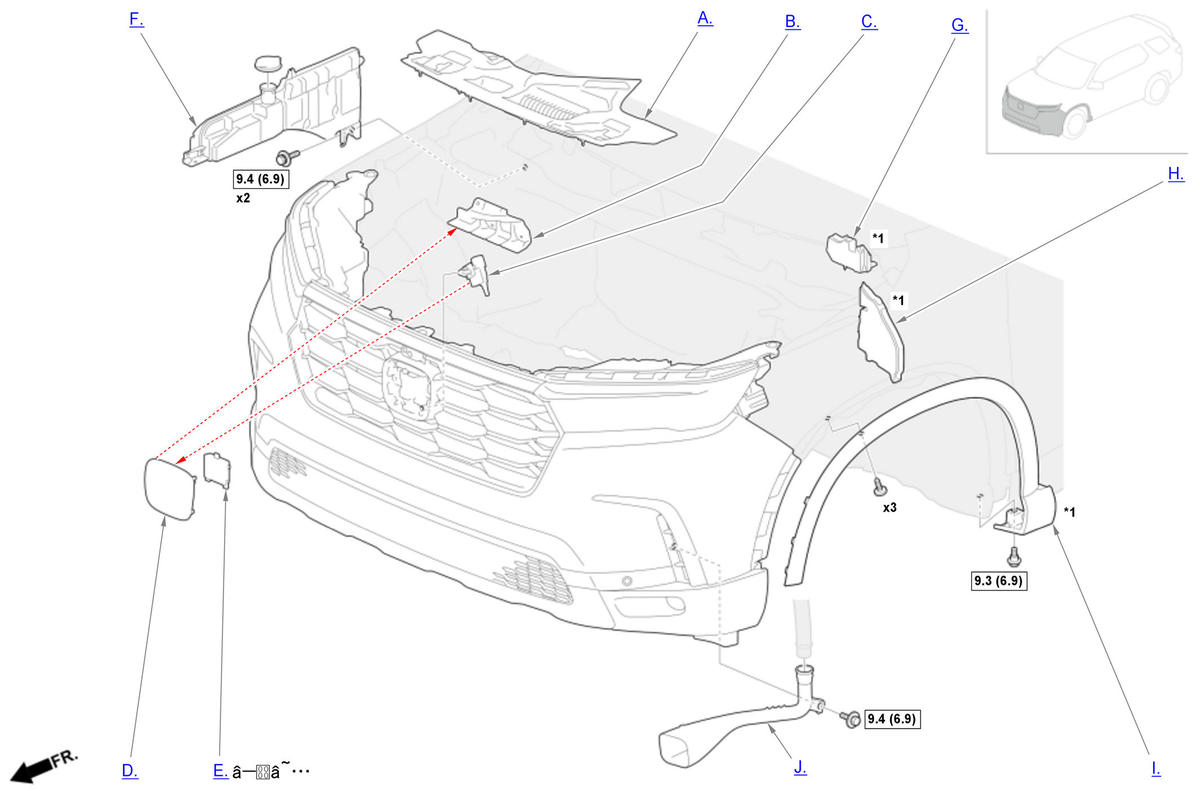

Front Bumper Area Replacement Components With Torque Specifications (1 Of 4)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

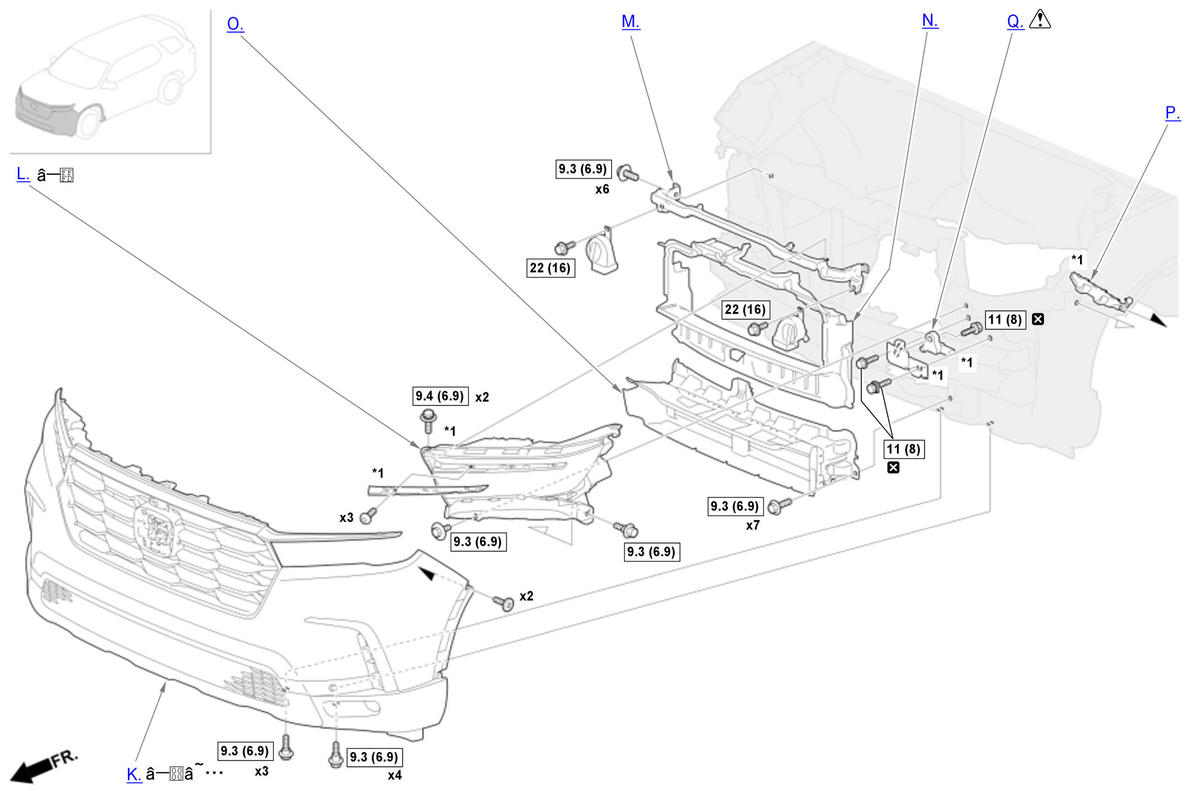

Front Bumper Area Replacement Components With Torque Specifications (2 Of 4)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

Front Bumper Area Replacement Components (3 Of 4)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

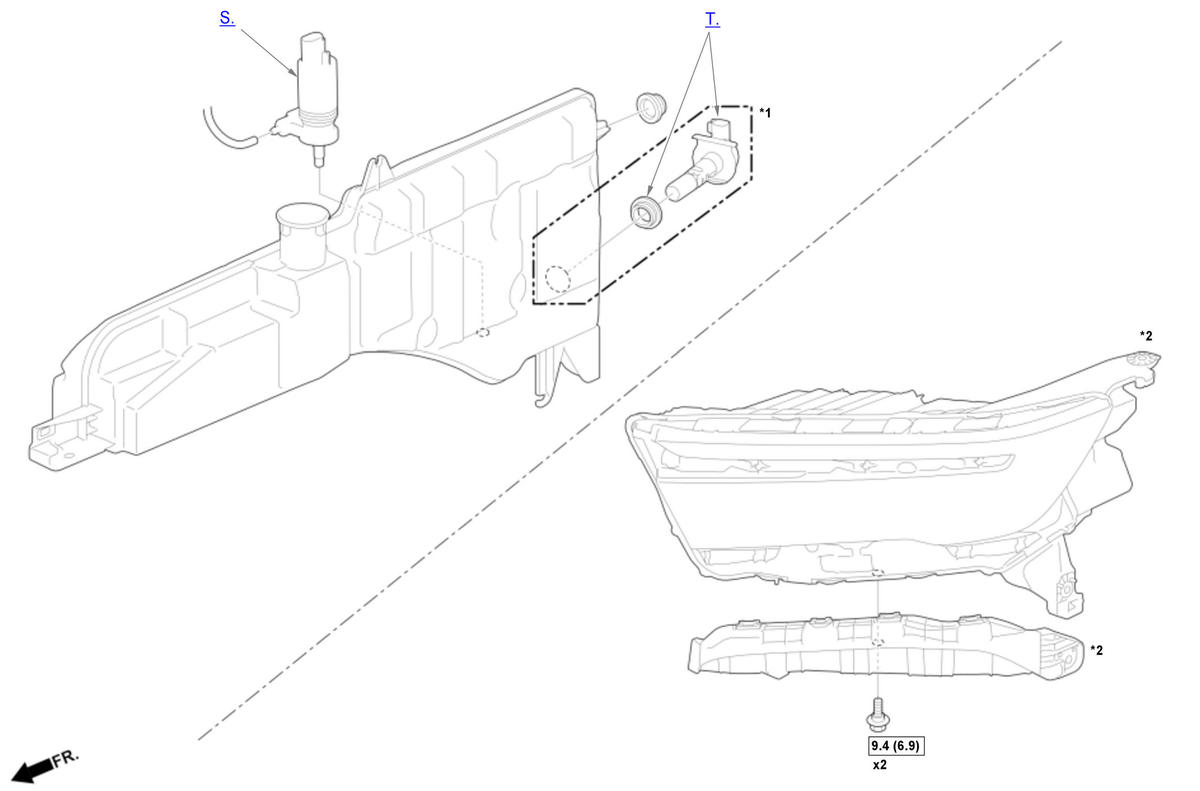

Front Bumper Area Replacement Components With Torque Specifications (4 Of 4)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: With washer fluid level switch
*2: Part(s) are shown for one side only as the procedure is the same for both sides.

A.-
Sub-Procedure

Removal

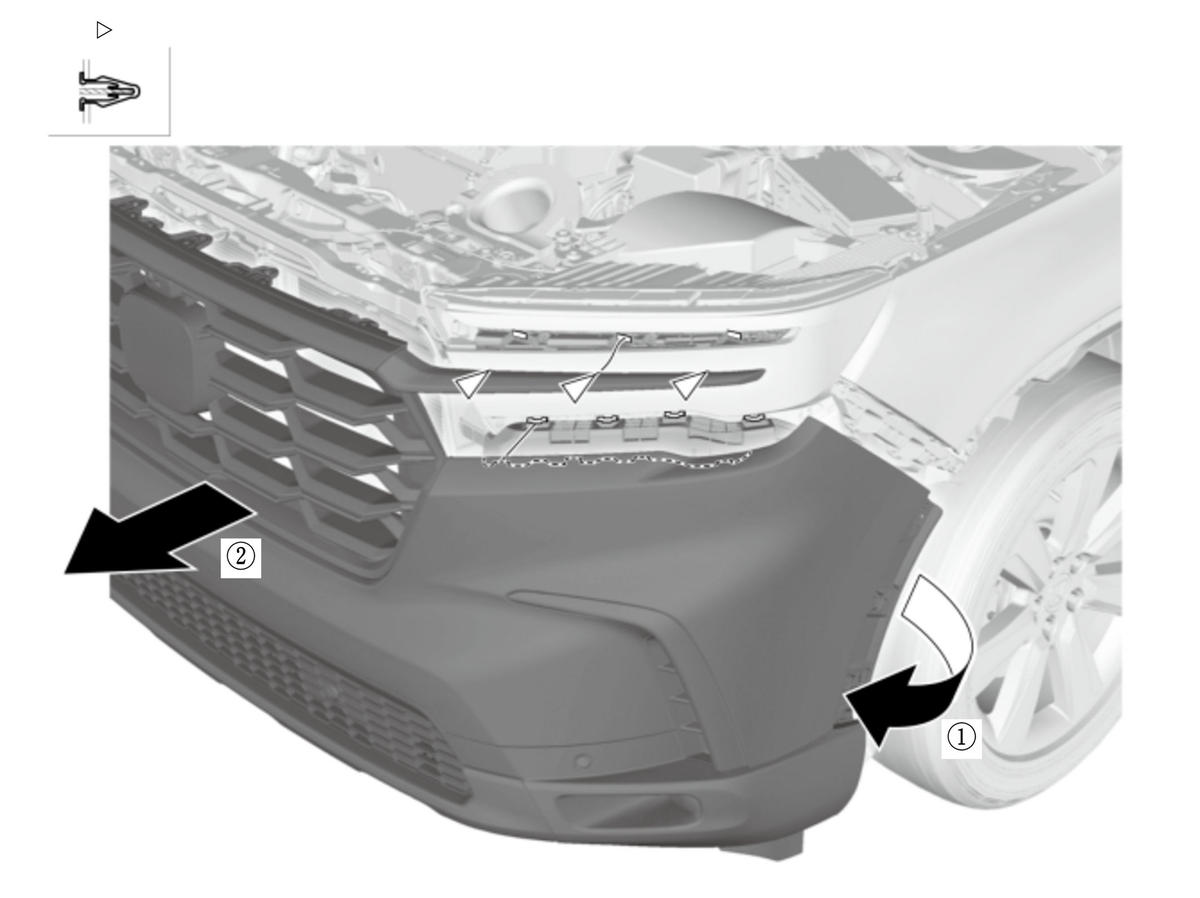

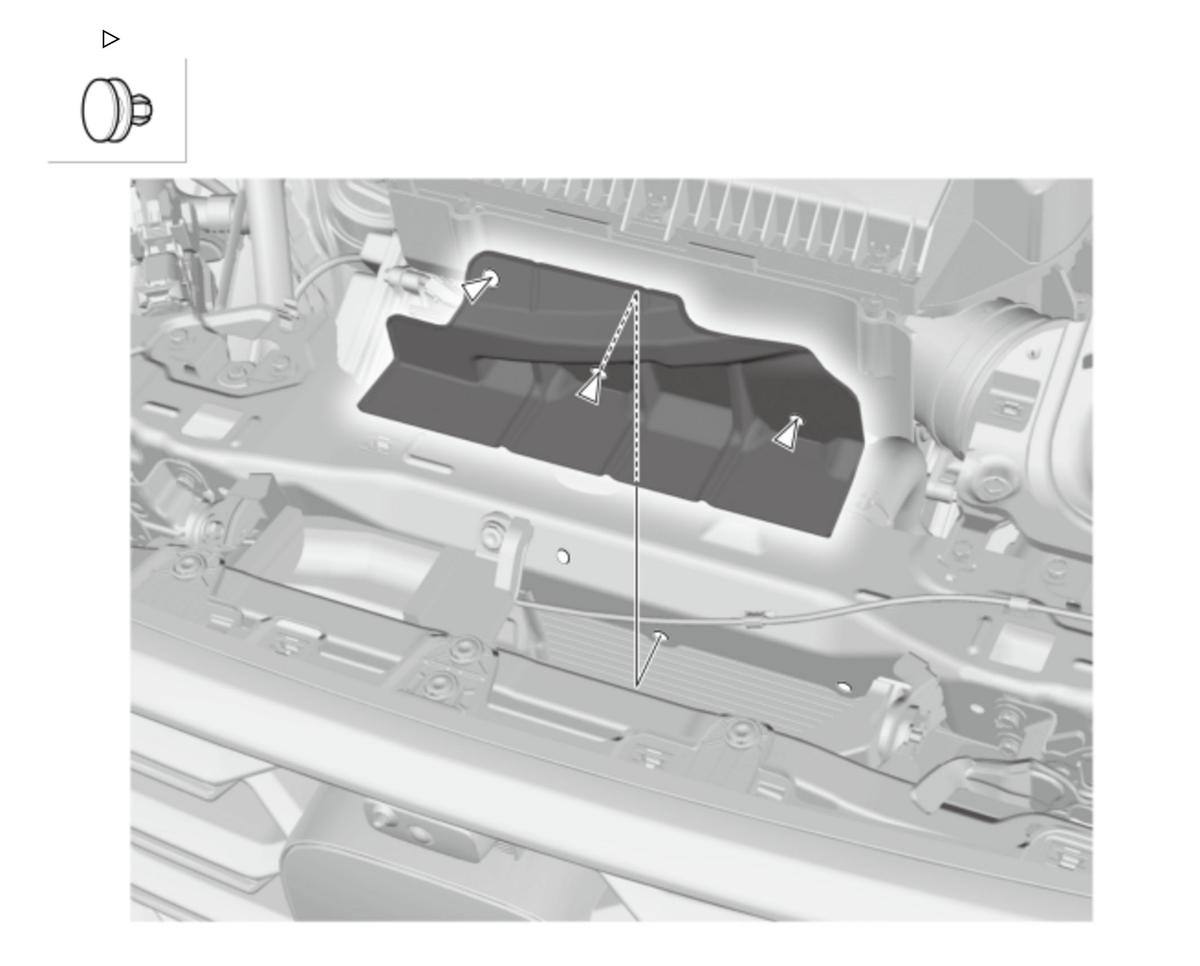

1. Refer to the figure 1.

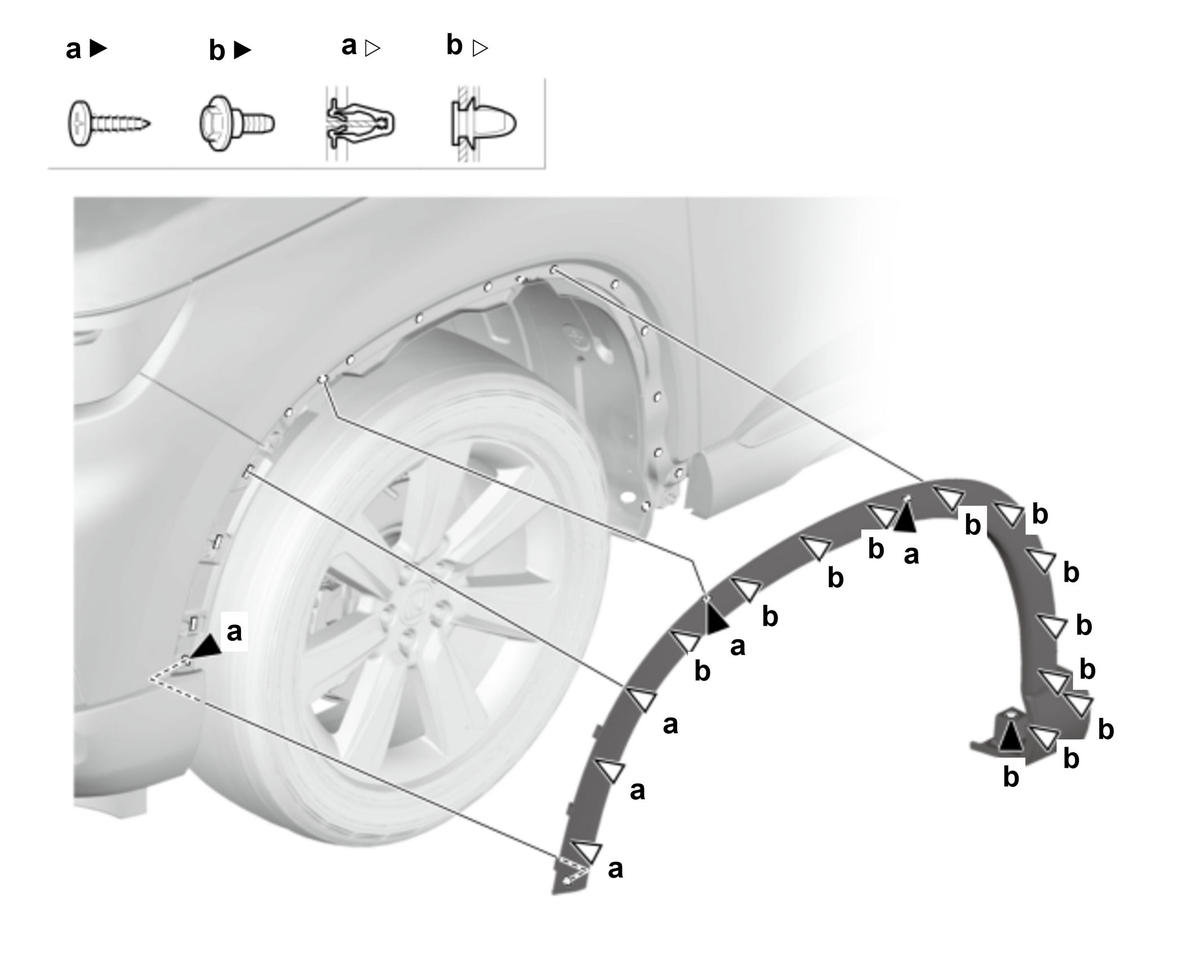

Figure 1

Courtesy of HONDA, U.S.A., INC.

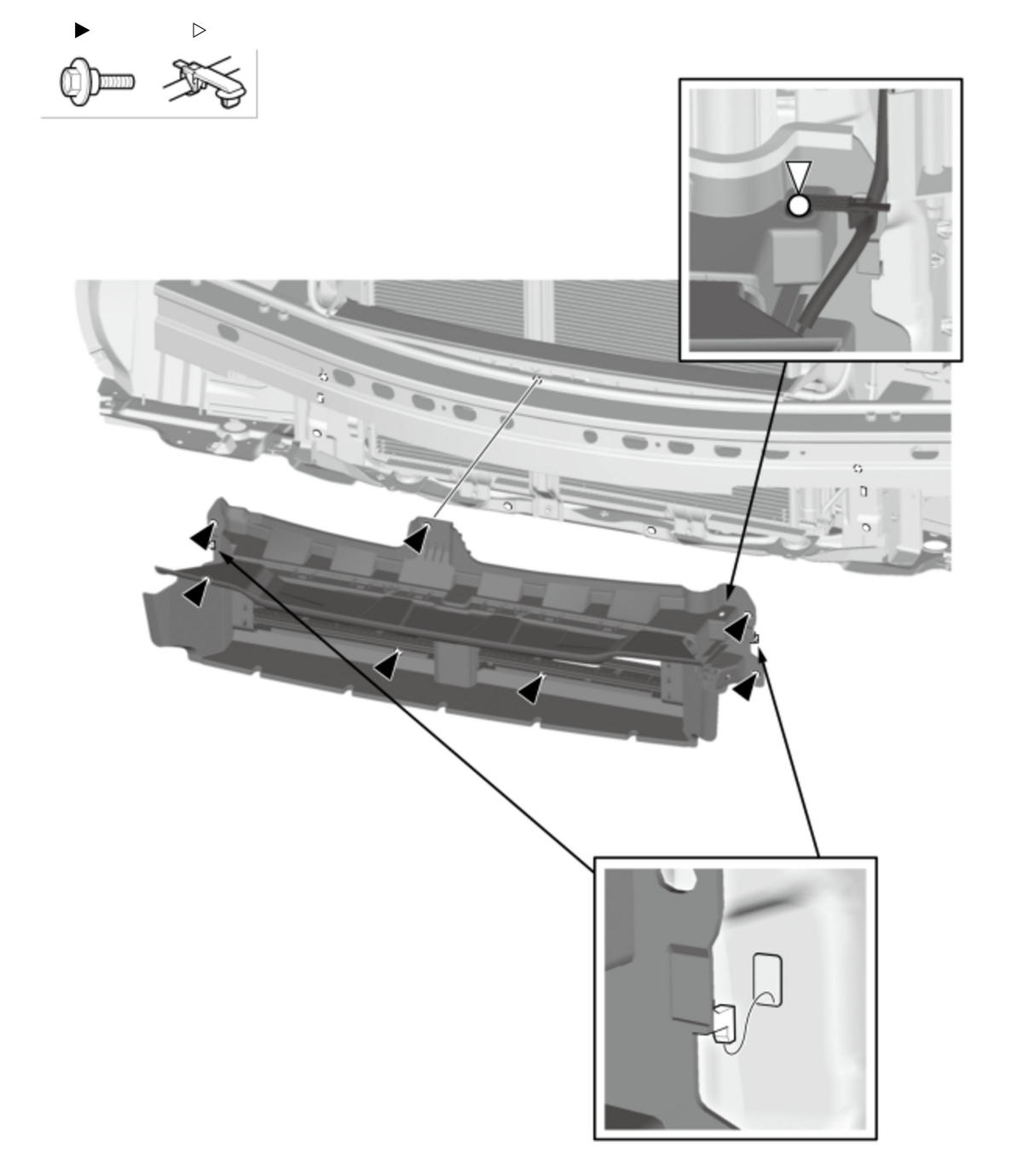

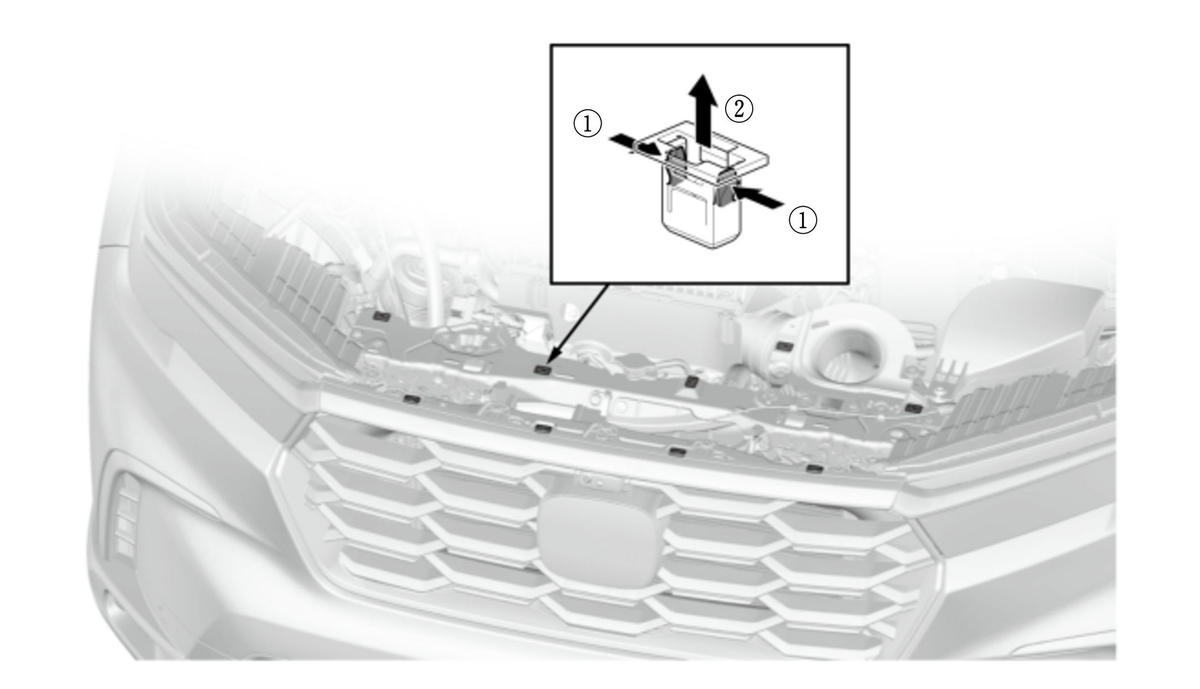

2. Refer to the figure 2.

Figure 2

Courtesy of HONDA, U.S.A., INC.
B.-

Courtesy of HONDA, U.S.A., INC.
C.-
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal

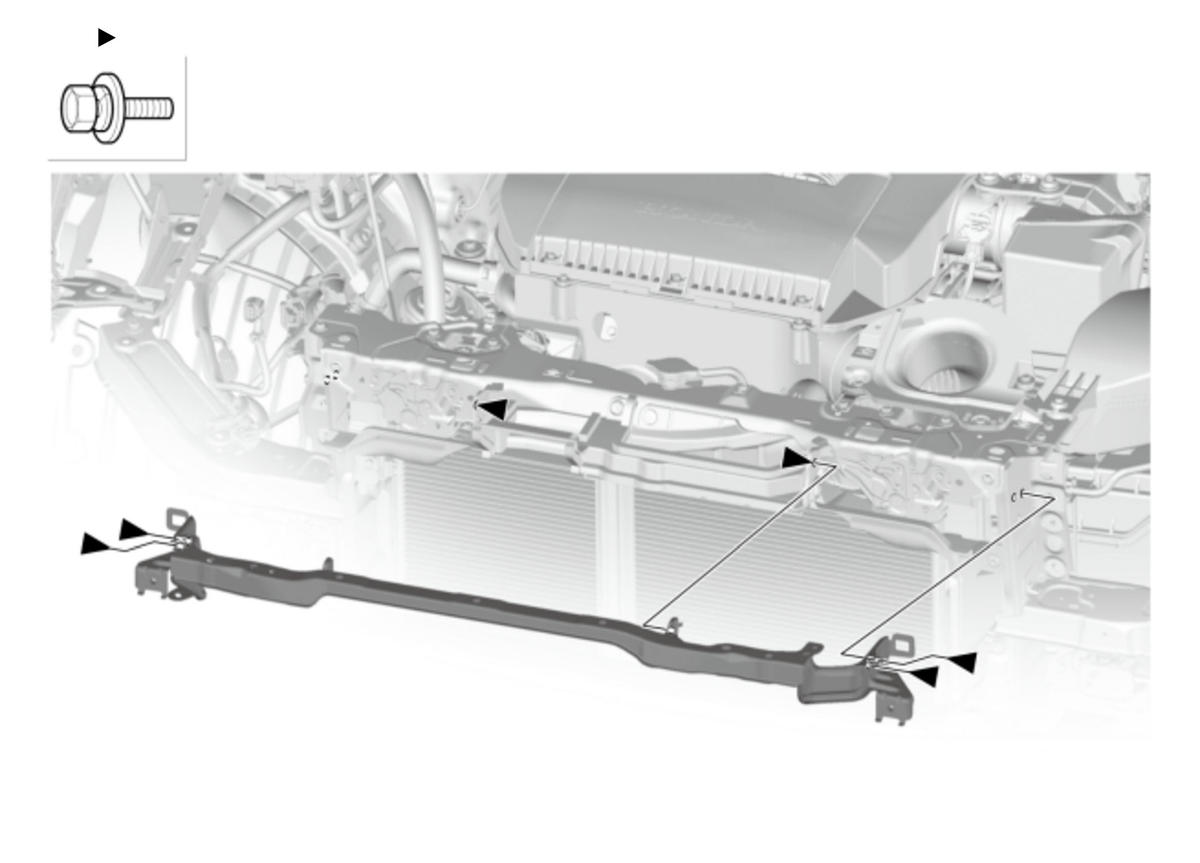

- Refer to the figure.
D.-
Sub-Procedure

Removal

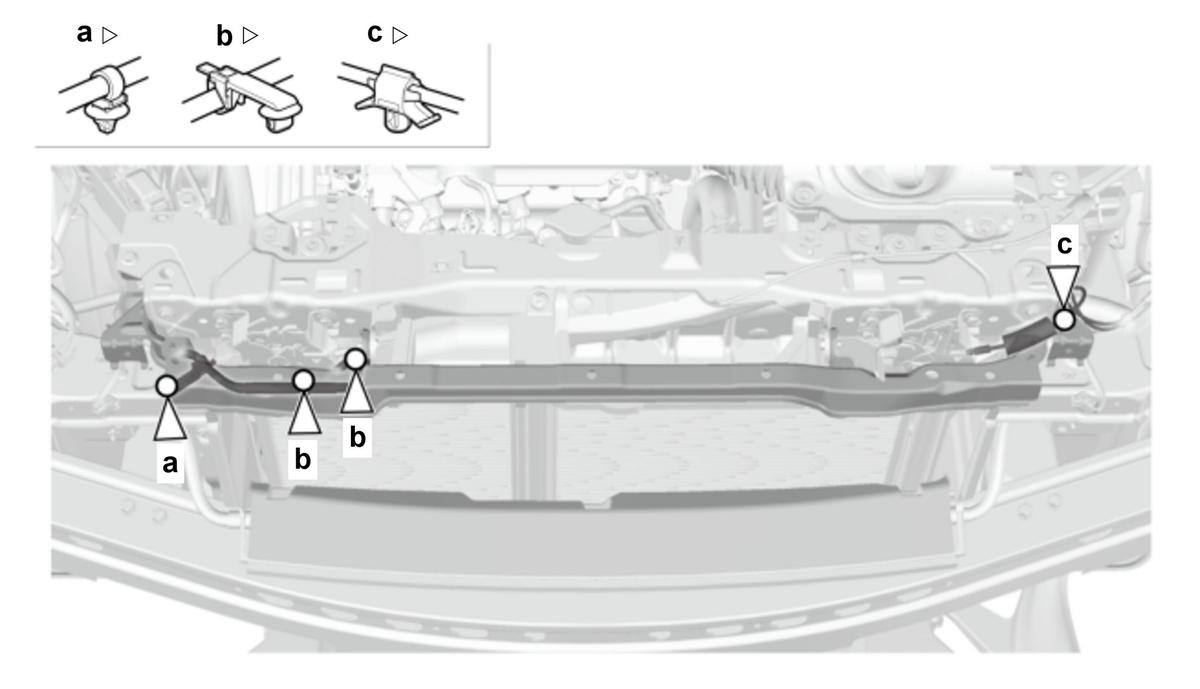

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
E.-
Sub-Procedure

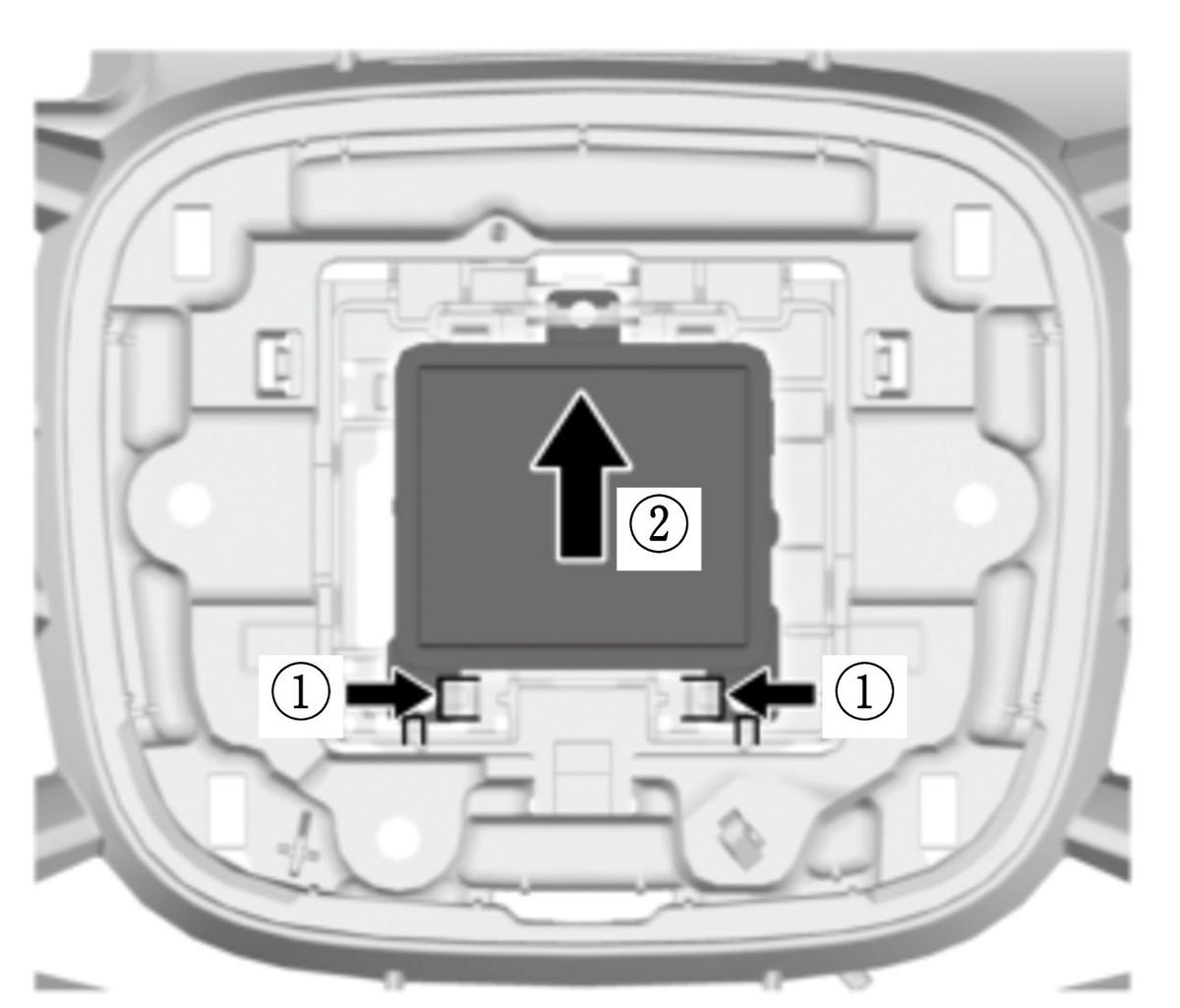

Figure 1

Courtesy of HONDA, U.S.A., INC.

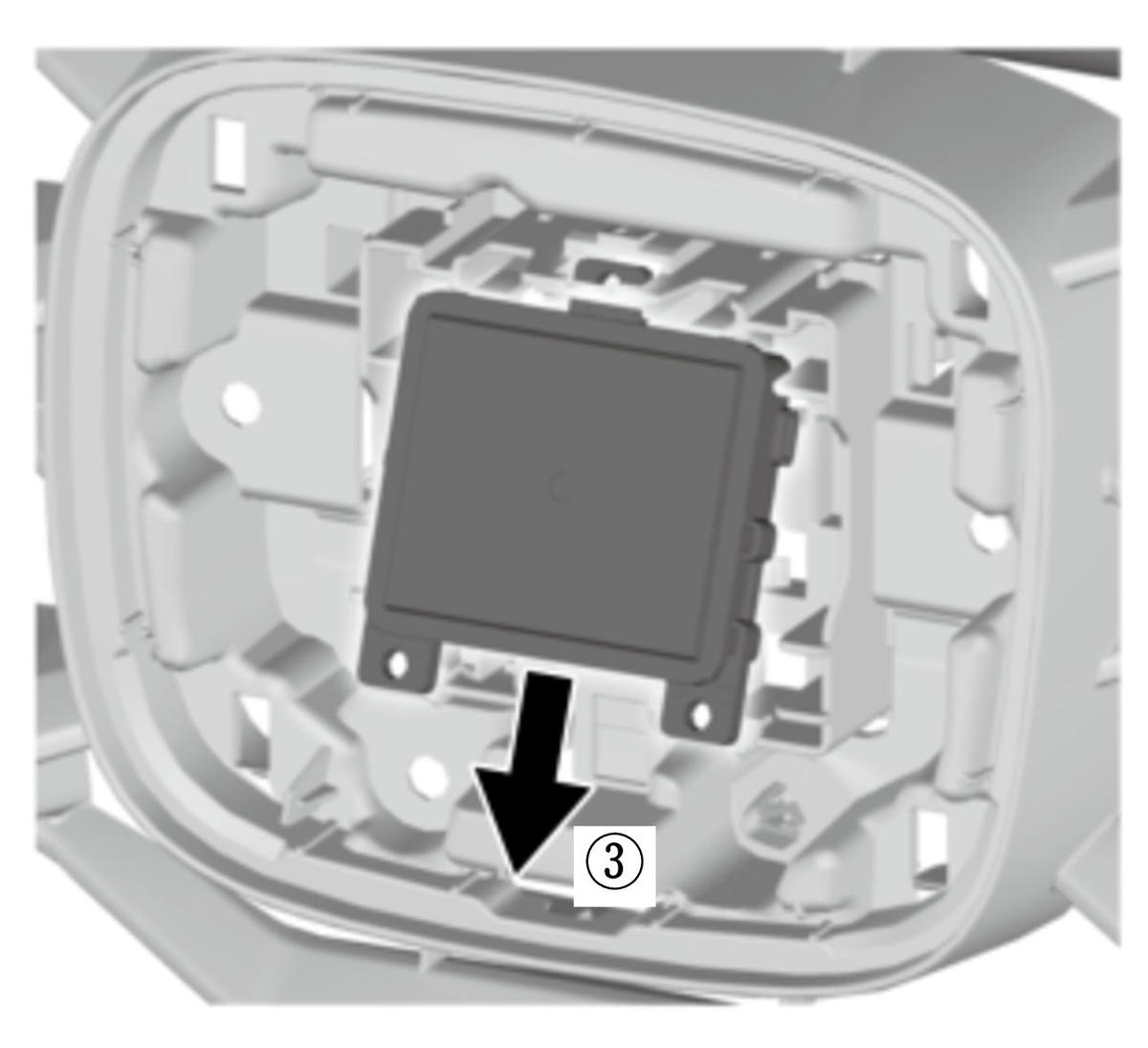

Figure 2

Courtesy of HONDA, U.S.A., INC.

Removal

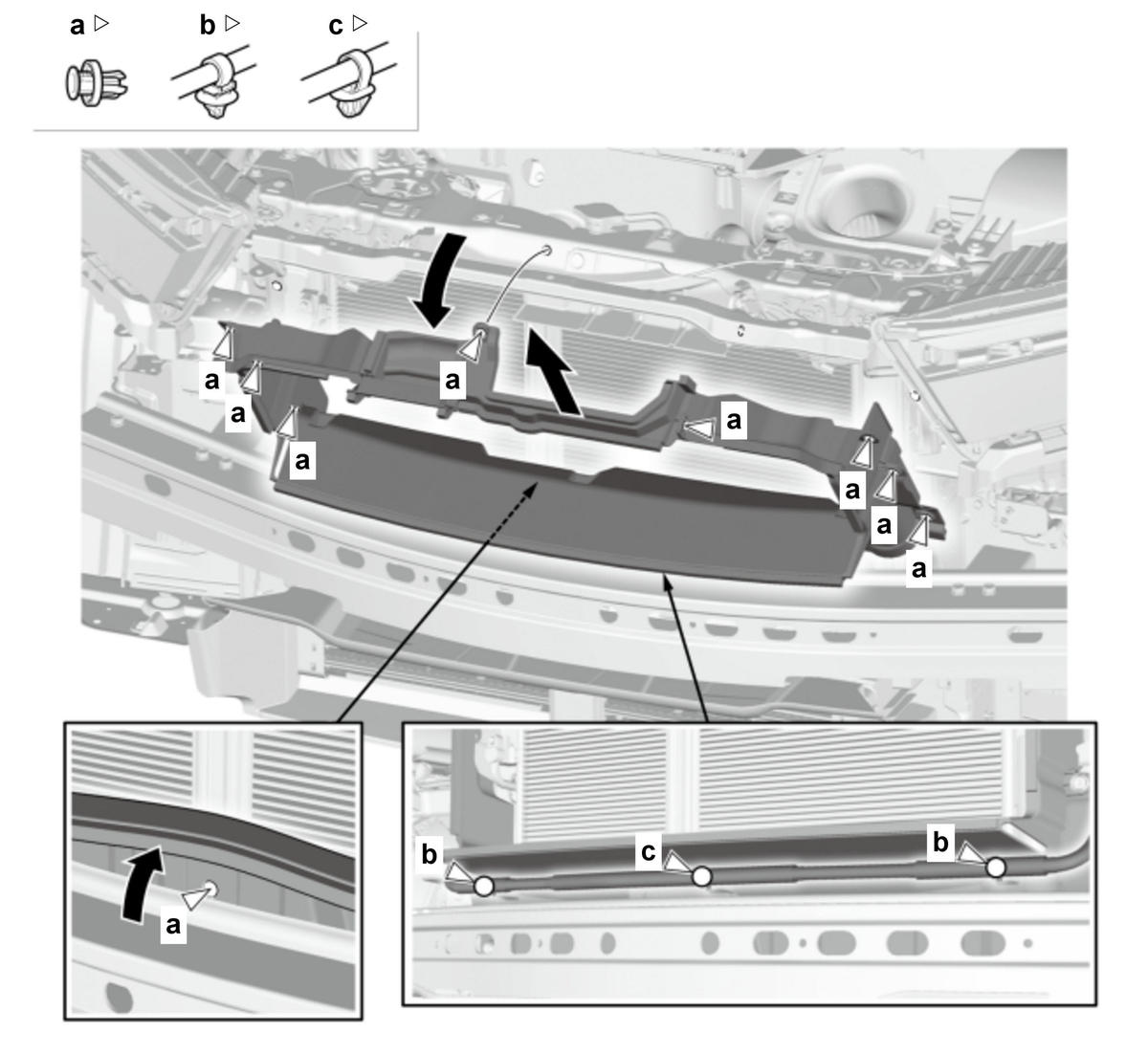

- Refer to figure 1 and 2.
After Installation
- Millimeter Wave Radar Update - Refer to: Vehicle Conditions that require Millimeter Wave Radar Aiming () or Millimeter Wave Radar Aiming(Dynamic Aiming) () or Millimeter Wave Radar Aiming(Static Aiming) () or Millimeter Wave Radar Update ()
- Millimeter Wave Radar Aiming - Refer to: Vehicle Conditions that require Millimeter Wave Radar Aiming () or Millimeter Wave Radar Aiming(Dynamic Aiming) () or Millimeter Wave Radar Aiming(Static Aiming) () or Millimeter Wave Radar Update ()

F.-

Key Information

Do the following before starting your work.

Remove:

Right Front Inner Fender (as needed)

Sub-Procedure

Removal

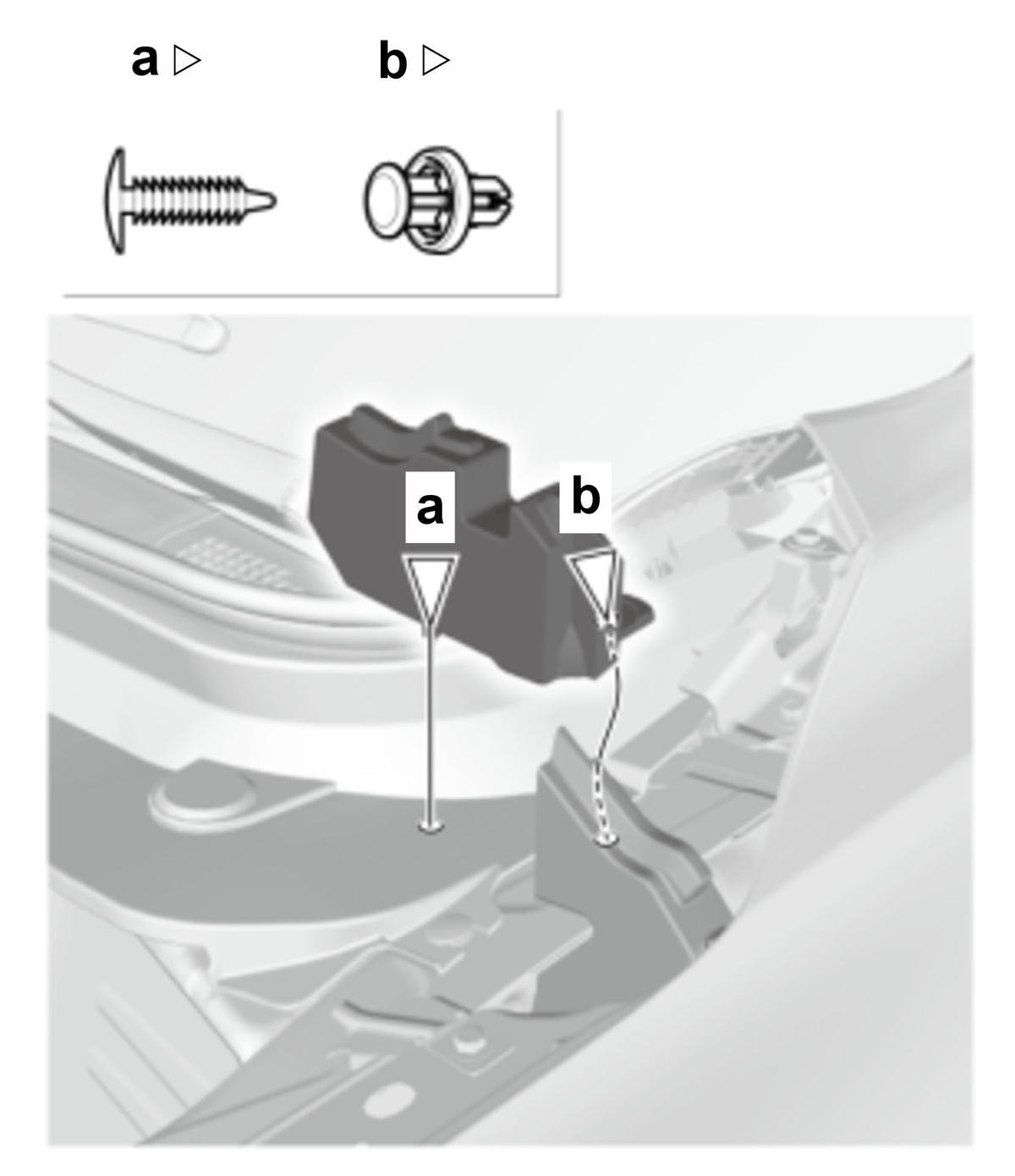

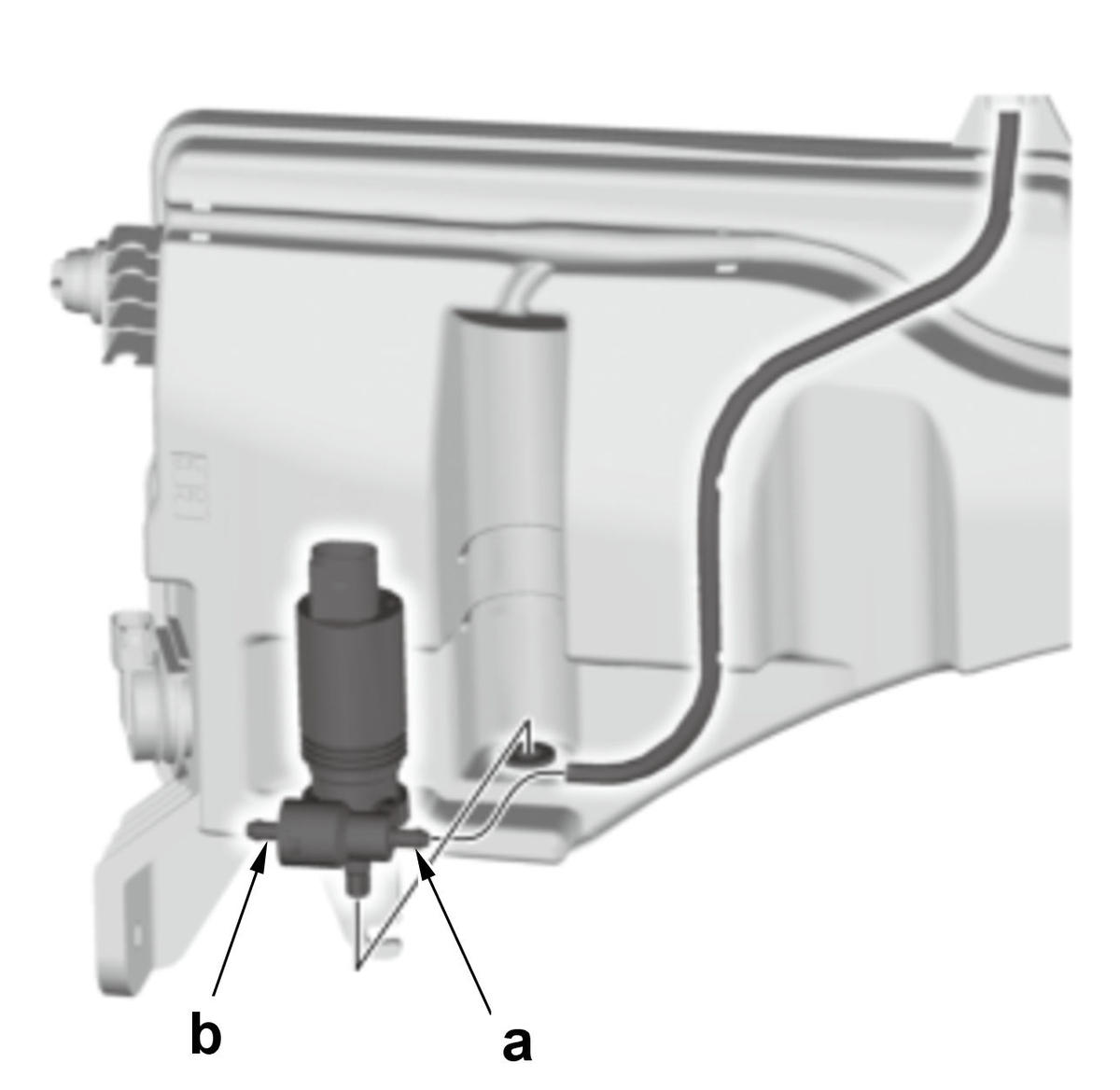

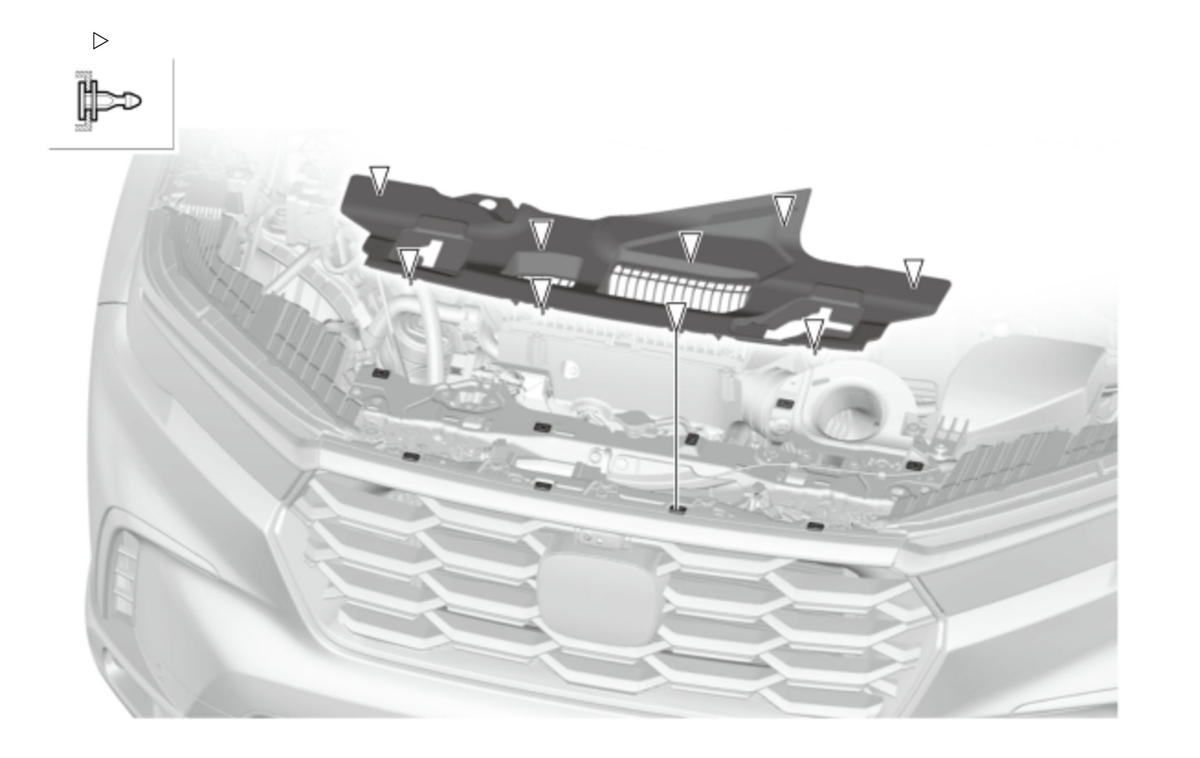

1. Refer to the figure 1.

Figure 1

Courtesy of HONDA, U.S.A., INC.

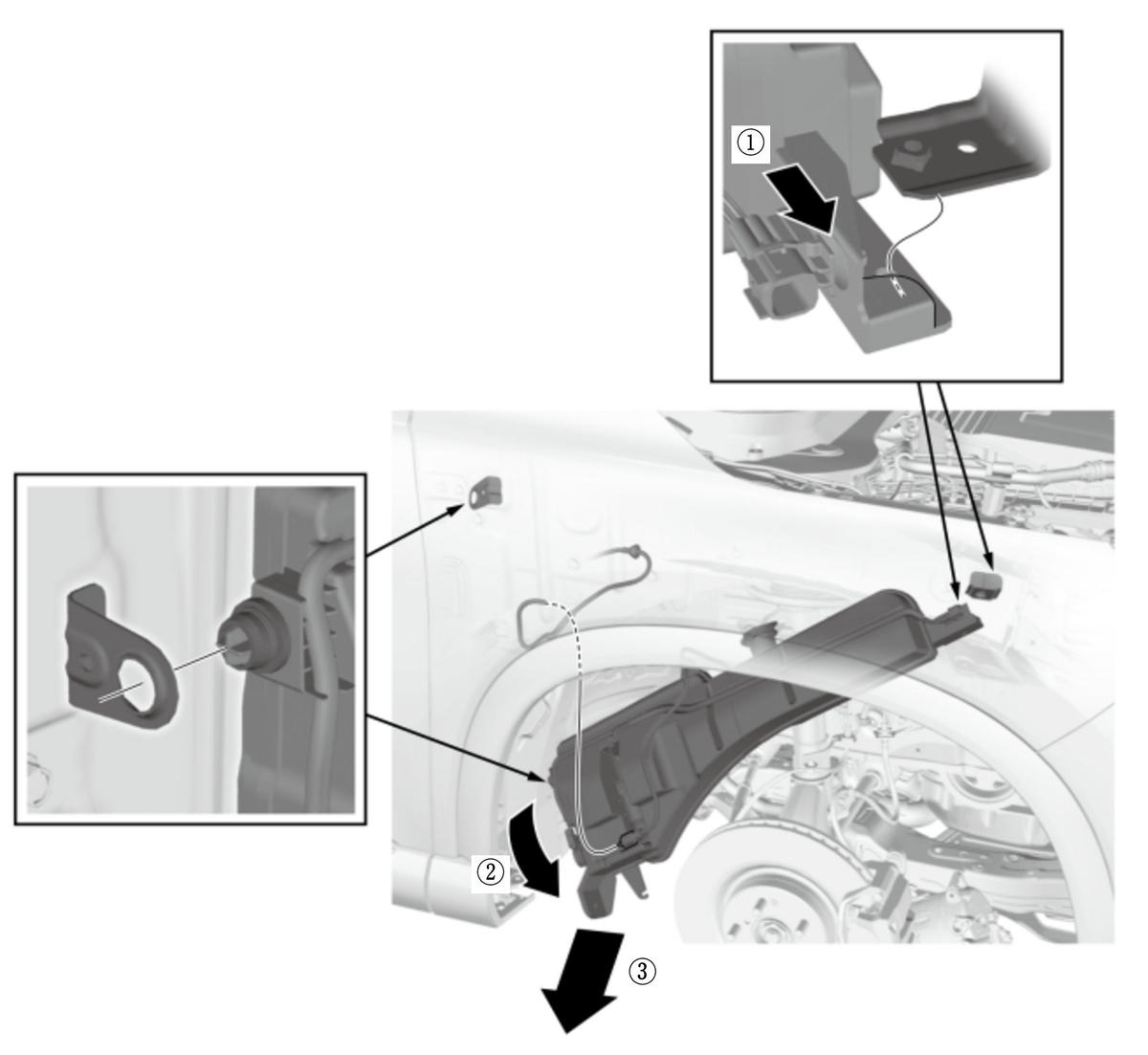

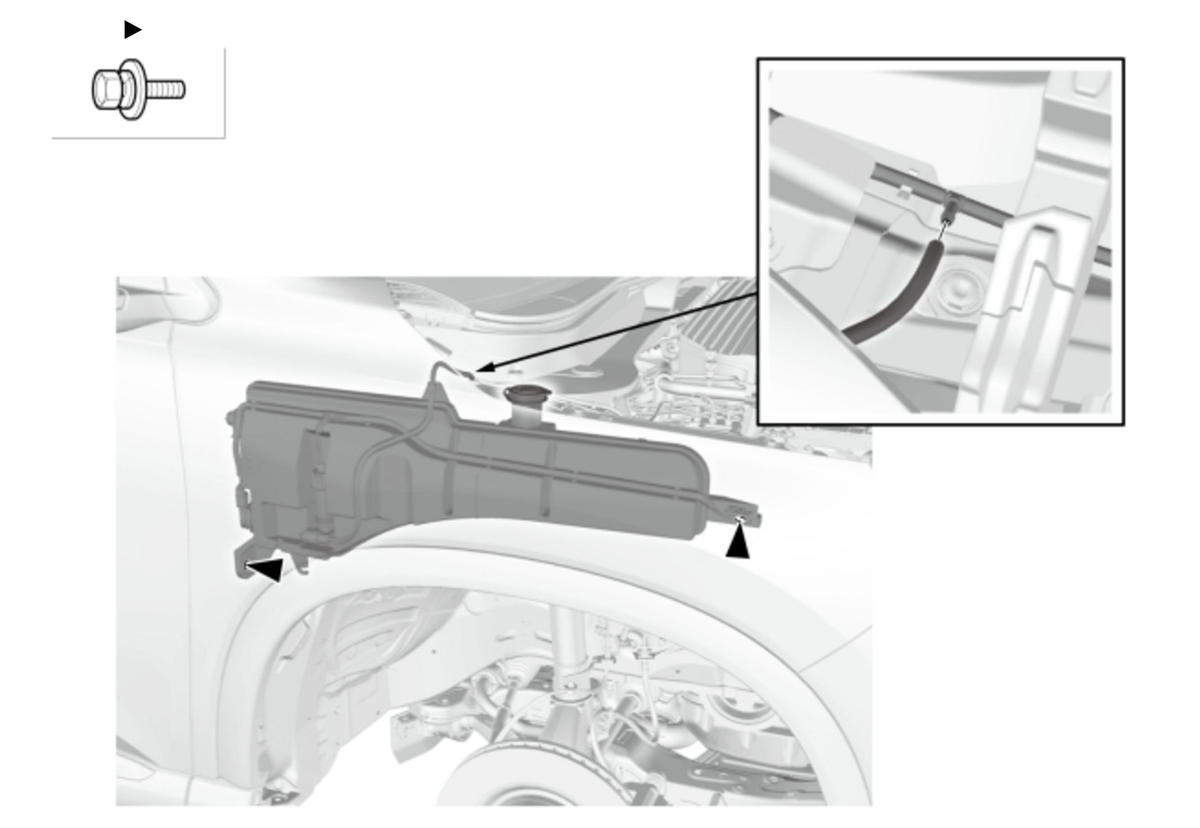

2. Refer to the figure 2.

Figure 2

Courtesy of HONDA, U.S.A., INC.

Installation

Washer Reservoir Specifications

Capacity
With front camera washer	4.5 L (4.8 Us qt)
Without front camera washer	2.5 L (2.6 Us qt)

G.-

Courtesy of HONDA, U.S.A., INC.
H.-
Key Information

Do the following before starting your work.

Remove:
- Front Inner Fender (as needed)
- Right Side: Washer Tank
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal

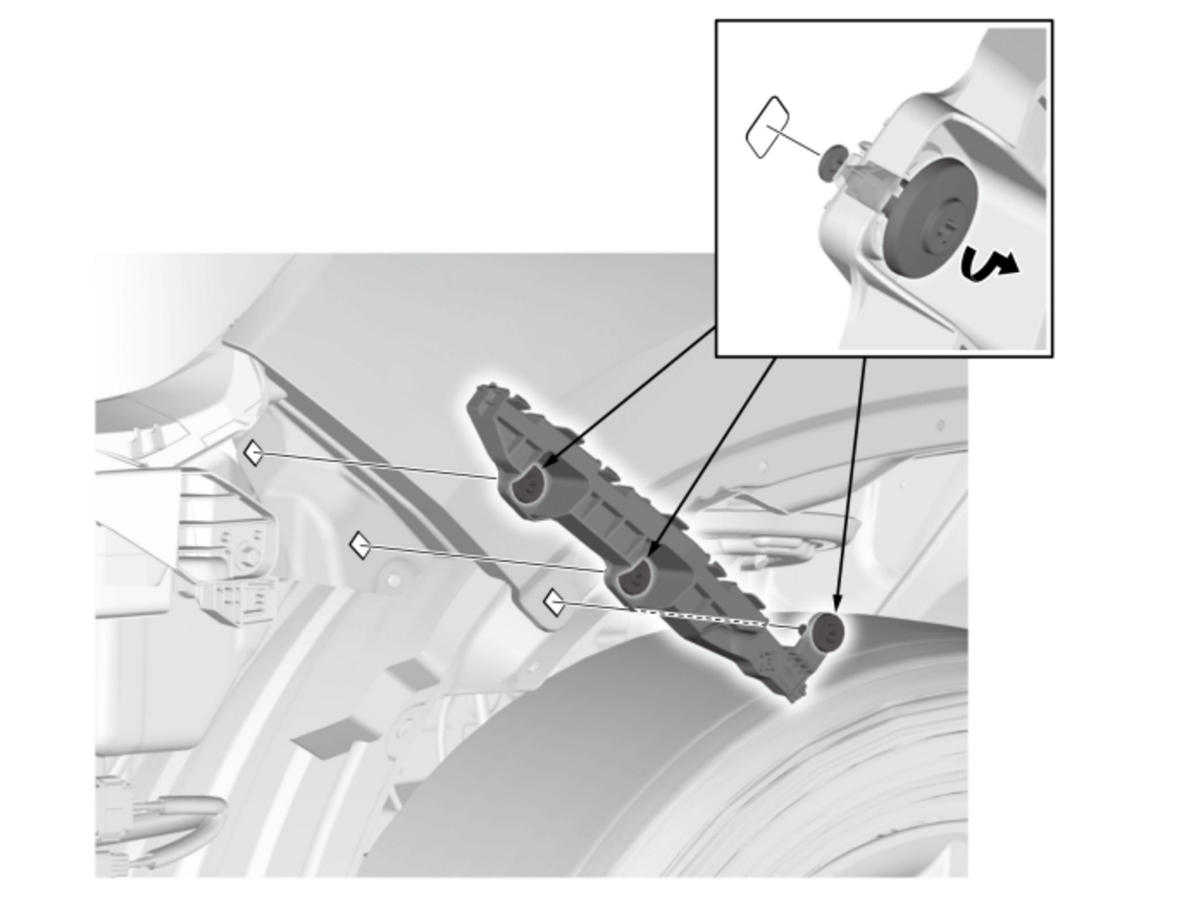

- Refer to the figure.
I.-

Courtesy of HONDA, U.S.A., INC.
J.-
Key Information

Do the following before starting your work.

Remove:
- Left Front Inner Fender (as needed)
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal

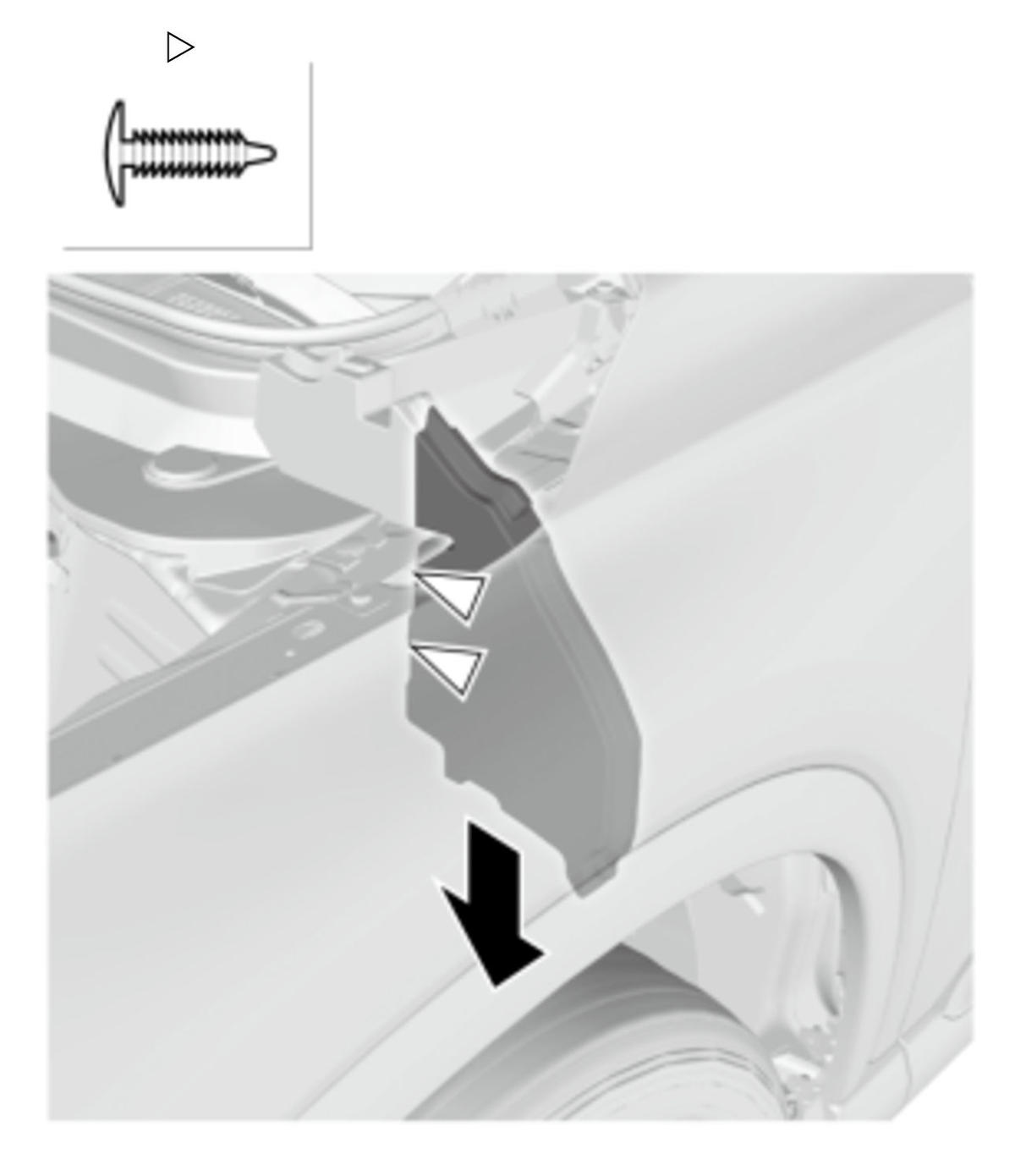

Refer to the figure.
K.-
Key Information

Do the following before starting your work.

Remove:
- Front Grille Cover
- Front wheel Arch Protector (as needed)
- Front Inner Fender (as needed)

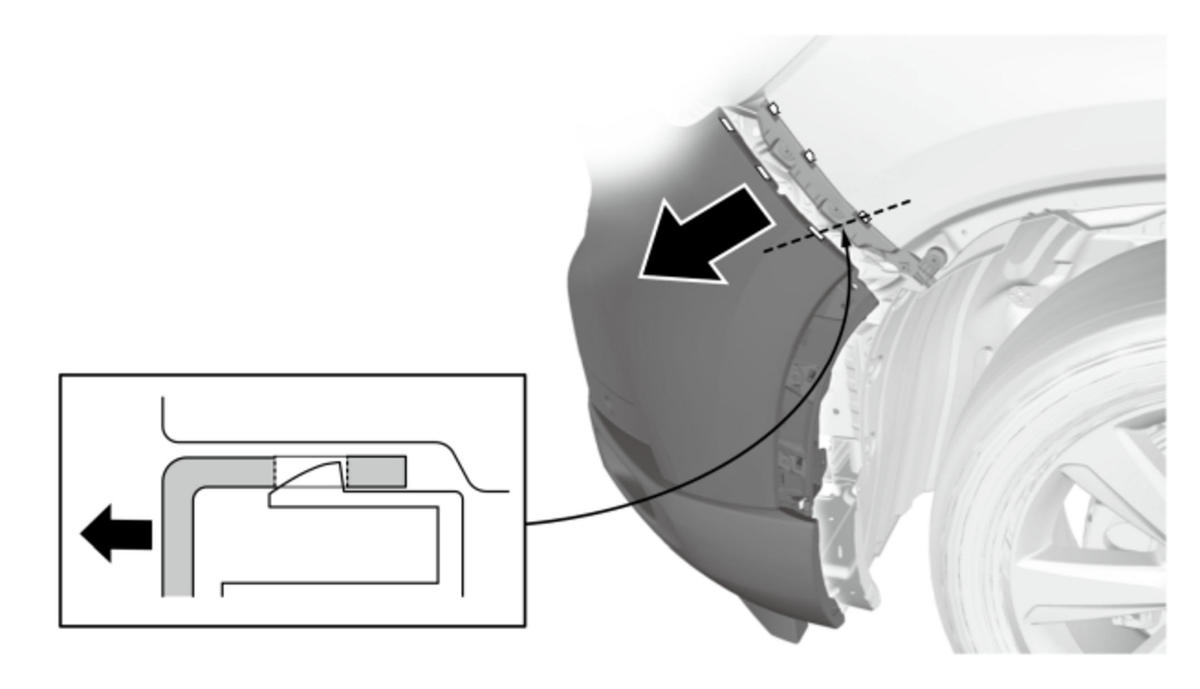

NOTE: The front bumper can be removed without removing the front center emblem/radar cover.

Sub-Procedure

Removal

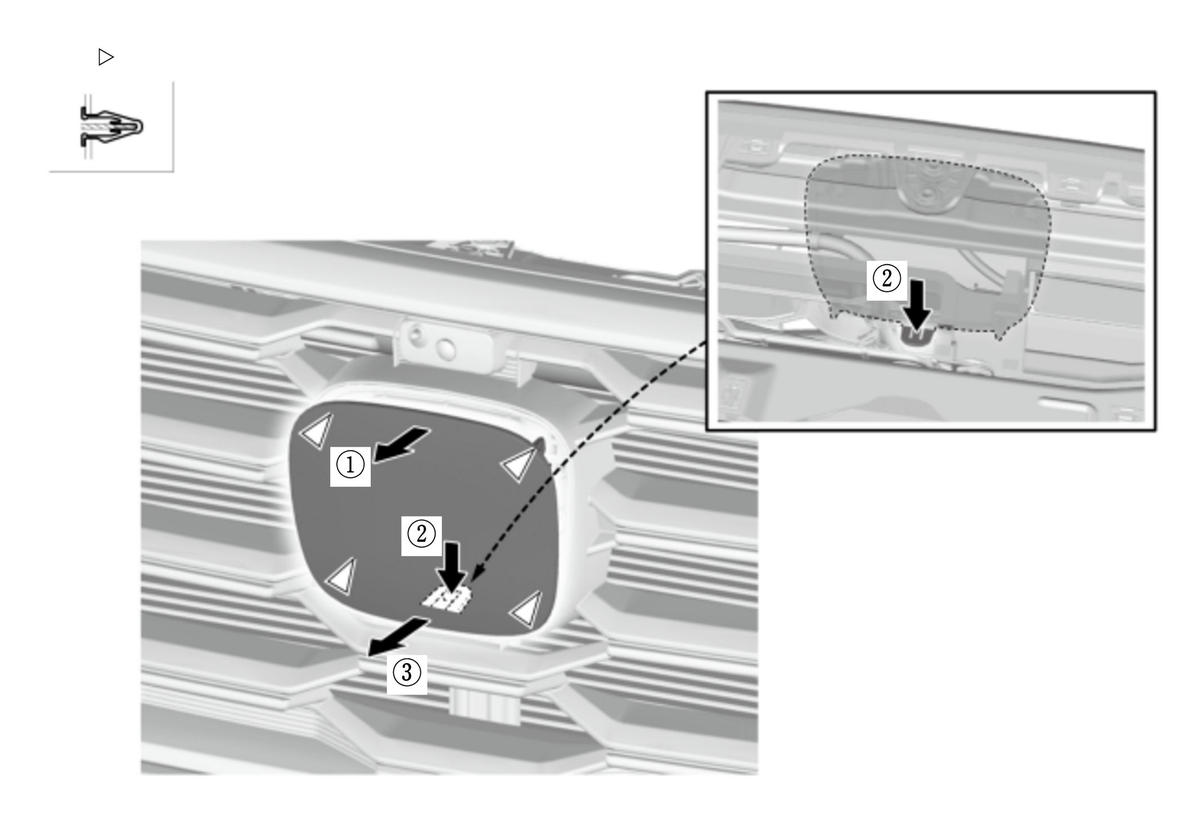

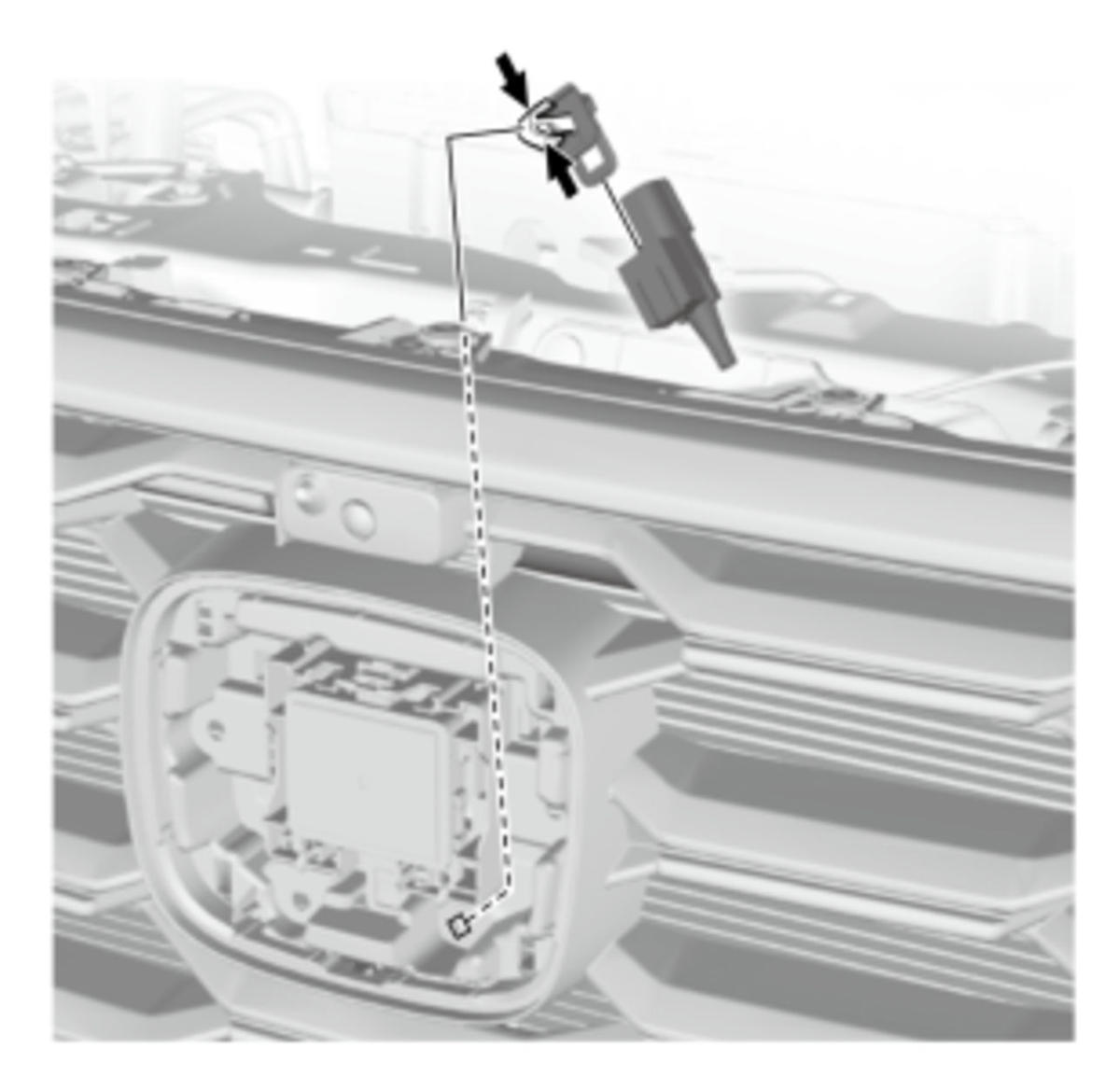

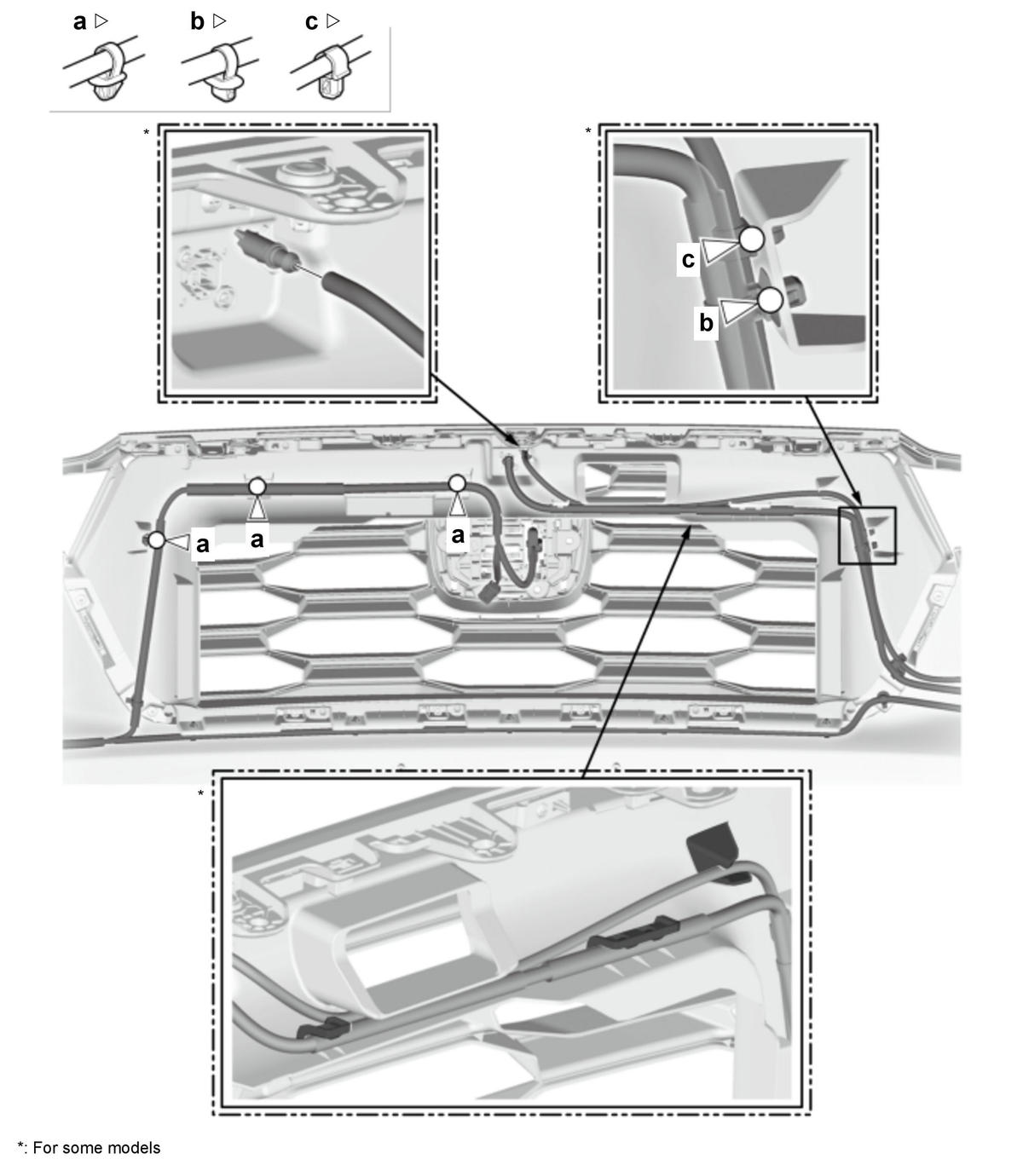

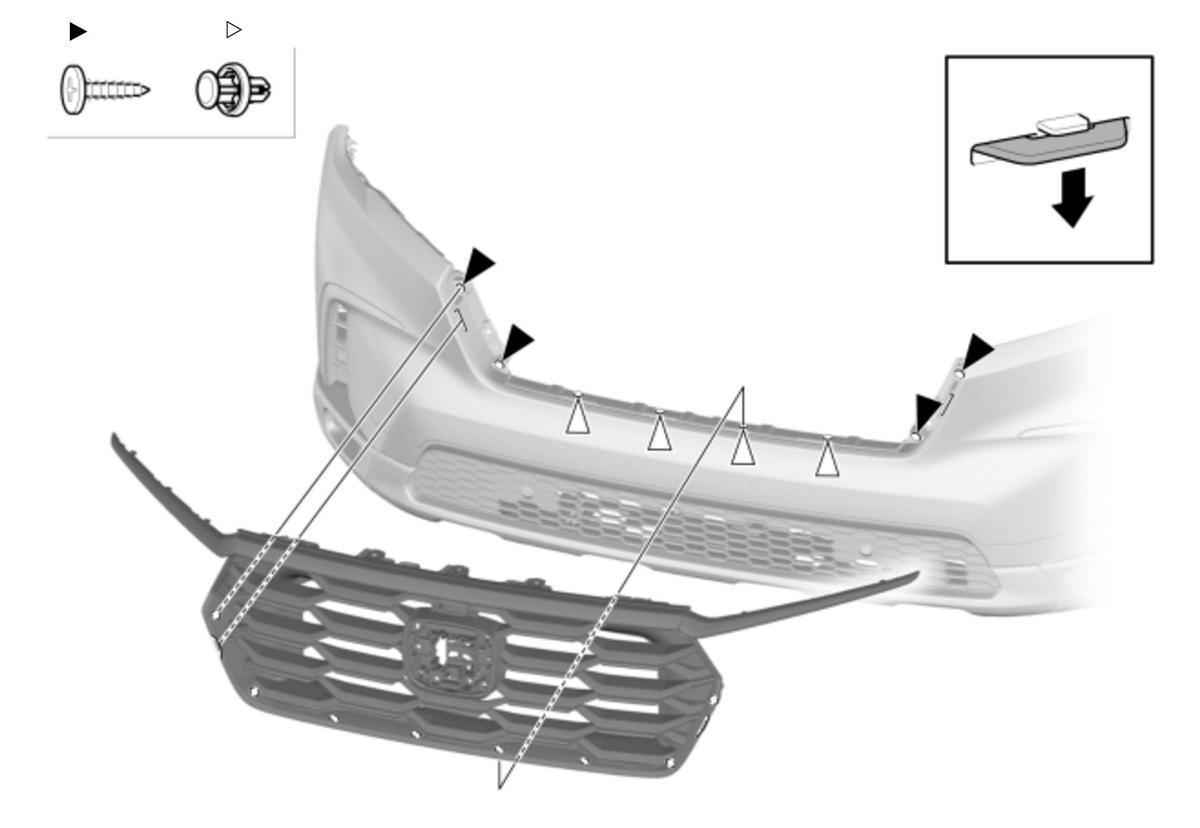

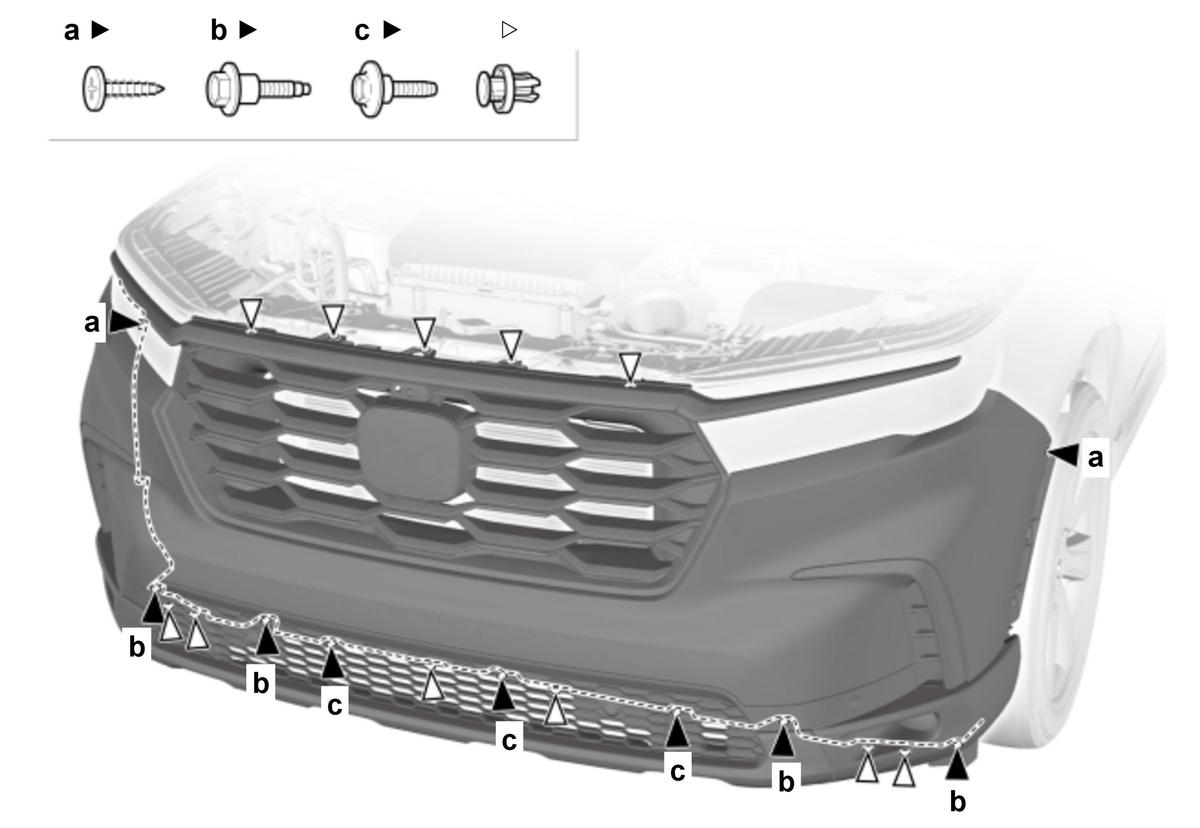

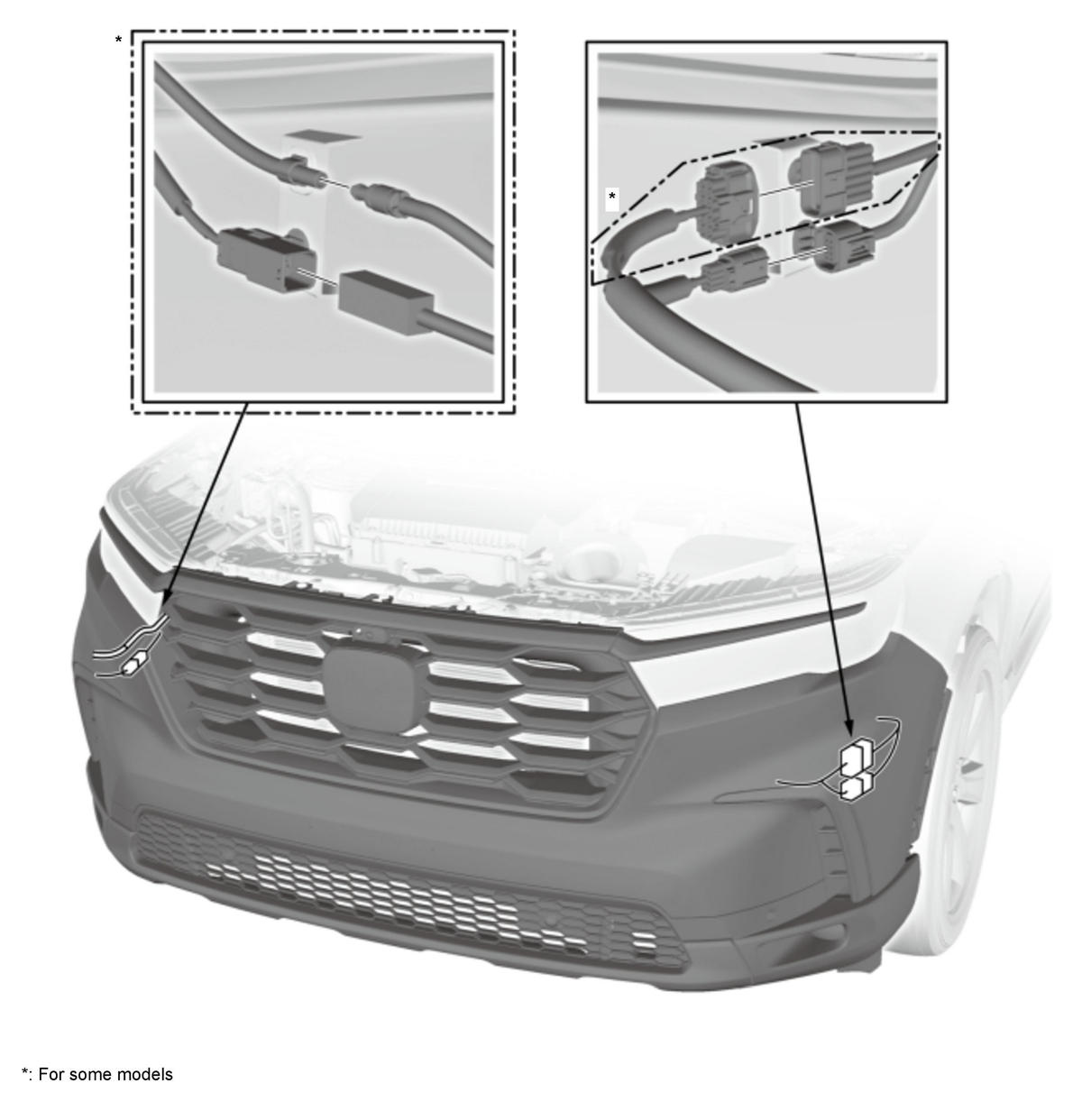

- Refer to the figure 1, 2, 3, and 4.
Figure 1

Courtesy of HONDA, U.S.A., INC.

Figure 2

Courtesy of HONDA, U.S.A., INC.

Figure 3

Courtesy of HONDA, U.S.A., INC.

Figure 4

Courtesy of HONDA, U.S.A., INC.

After Installation
- With Multi View Camera System: Multi View Front Camera Aiming - Refer to: Multi View Camera Aiming () or Multi View Camera Picture Inspection ()
- If the front bumper has been replaced, do the following:
  NOTE: The millimeter wave radar aiming is not required if the front bumper is removed and installed without replacement.
  - Millimeter Wave Radar Update - Refer to: Vehicle Conditions that require Millimeter Wave Radar Aiming () or Millimeter Wave Radar Aiming(Dynamic Aiming) () or Millimeter Wave Radar Aiming(Static Aiming) () or Millimeter Wave Radar Update ()
  - Millimeter Wave Radar Aiming - Refer to: Vehicle Conditions that require Millimeter Wave Radar Aiming () or Millimeter Wave Radar Aiming(Dynamic Aiming) () or Millimeter Wave Radar Aiming(Static Aiming) () or Millimeter Wave Radar Update ()
L.-
After Installation
- Headlight Adjustment
M.-
Sub-Procedure

Removal
- Refer to the figure 1 and 2.
Figure 1

Courtesy of HONDA, U.S.A., INC.

Figure 2

Courtesy of HONDA, U.S.A., INC.
N.-
Sub-Procedure

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
O.-
Sub-Procedure

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
P.-
Sub-Procedure

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
Q.-
WARNING:
- Review the precautions and procedures before doing repairs or service .
- Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
NOTICE:
- If you are replacing the front impact sensor after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: Airbag and Tensioner Disposal () or SRS Component Replacement/Inspection After Deployment () for a complete list of other parts that must also be replaced.
- Be careful not to bump (by impact wrench, hammer, etc.) the area around the front impact sensor.
Preconditions
- 12 Volt Battery Negative Terminal Disconnected
Sub-Procedure

Installation

NOTICE:

Before installing the front bumper, make sure the SRS indicator works normally.

After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
R.-
Sub-Procedure

Removal

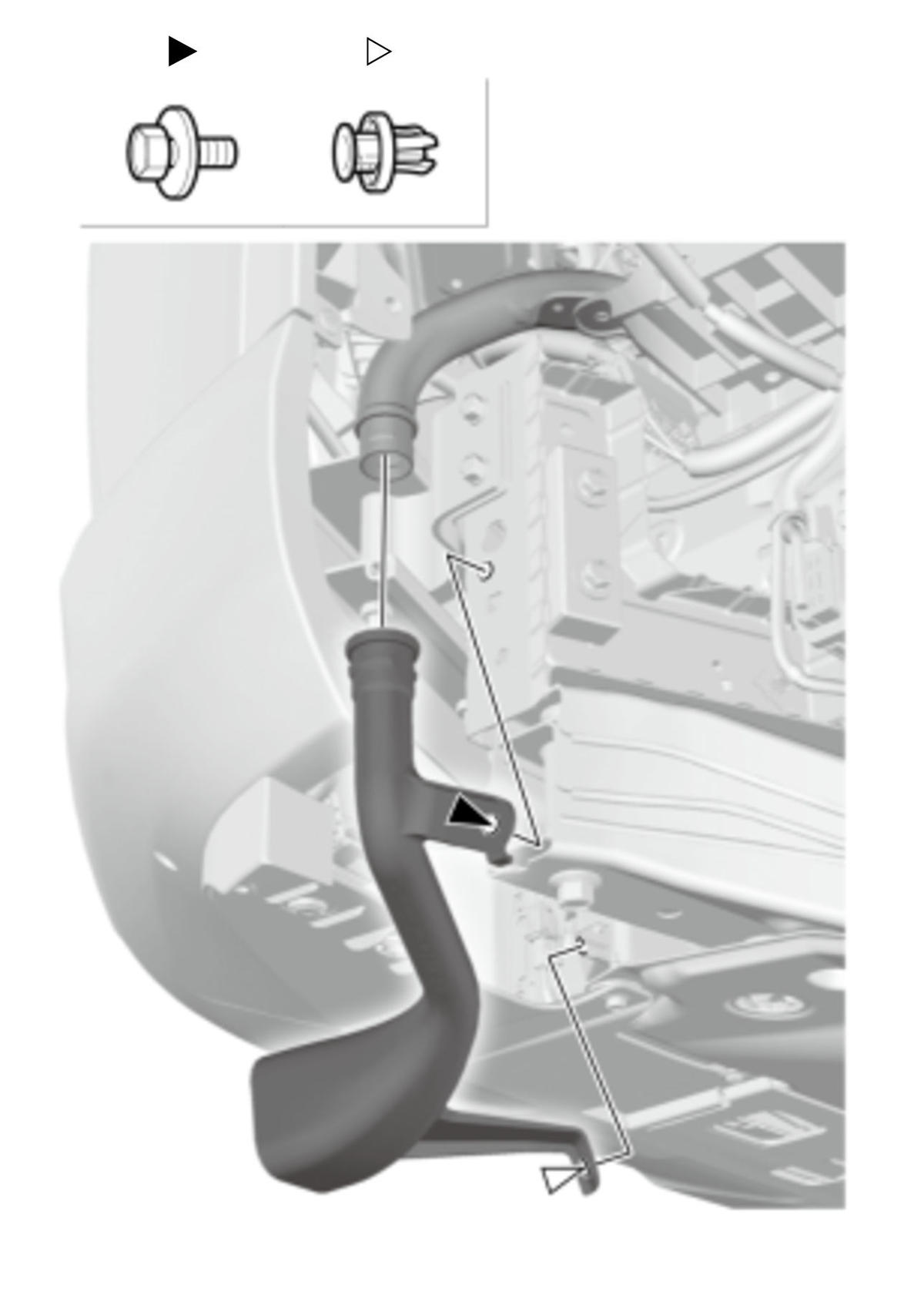

- Refer to figure 1 and 2.
Figure 1

Courtesy of HONDA, U.S.A., INC.

Figure 2

Courtesy of HONDA, U.S.A., INC.

After Installation
- Millimeter Wave Radar Update - Refer to: Vehicle Conditions that require Millimeter Wave Radar Aiming () or Millimeter Wave Radar Aiming(Dynamic Aiming) () or Millimeter Wave Radar Aiming(Static Aiming) () or Millimeter Wave Radar Update ()
- Millimeter Wave Radar Aiming - Refer to: Vehicle Conditions that require Millimeter Wave Radar Aiming () or Millimeter Wave Radar Aiming(Dynamic Aiming) () or Millimeter Wave Radar Aiming(Static Aiming) () or Millimeter Wave Radar Update ()
