DTC Advanced Diagnostics: P16E4: General Description

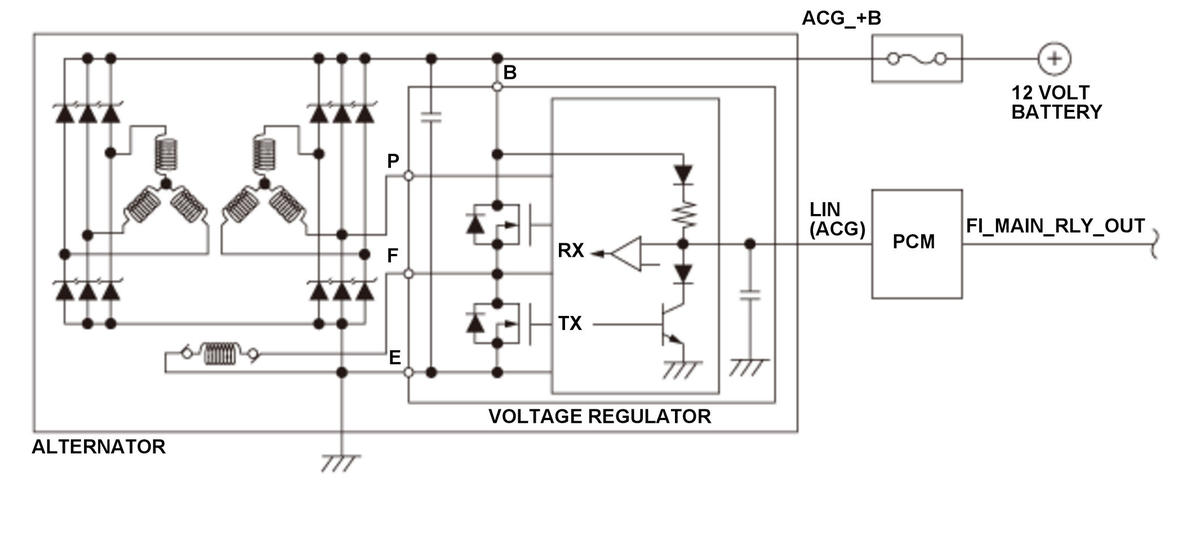

The powertrain control module (PCM) monitors the temperature of the alternator. If the alternator temperature is a specified value, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 60 seconds or more |
| DTC Type | One drive cycle, MIL off |
