Confirmation Procedure

Operating Condition

Courtesy of HONDA, U.S.A., INC.

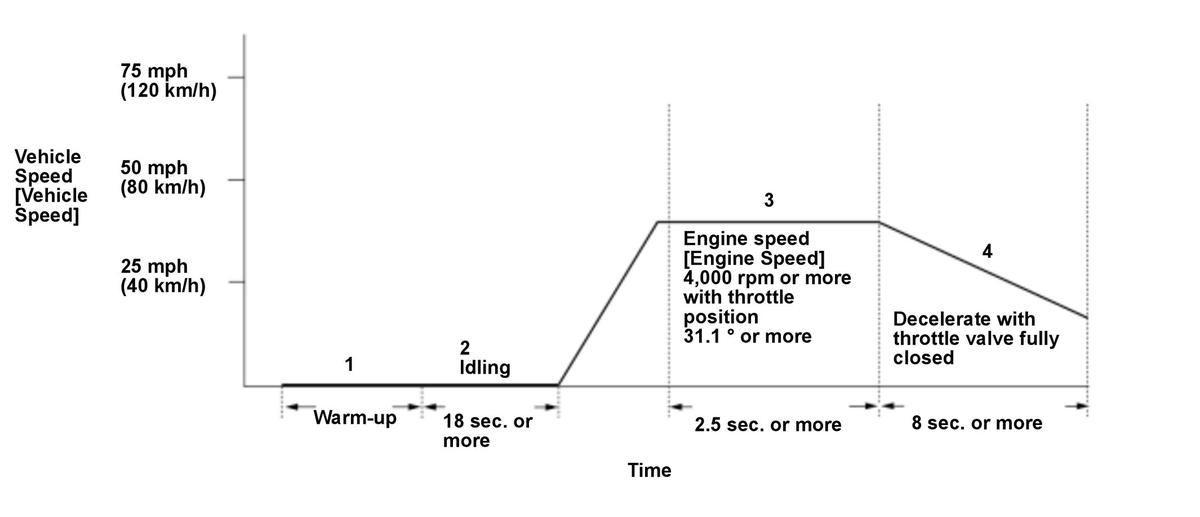

• Enter the maintenance mode, then start the engine. Hold the engine speed [Engine Speed] at 3, 000 rpm without load (in P or N) until the radiator fan comes on. After warming up the engine, cancel the maintenance mode.
• Let the engine idle for at least 18 seconds.
• Drive the vehicle at engine speed [Engine Speed] 4, 000 rpm or more with throttle position 31.1° or more for at least 2.5 seconds.
• Decelerate with the throttle valve fully closed for at least 8 seconds.

• When freeze data or the on-board snapshot is stored, drive the vehicle under those conditions instead of Driving Pattern step 4.
• Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
