Keyless Access System Component Location Index

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

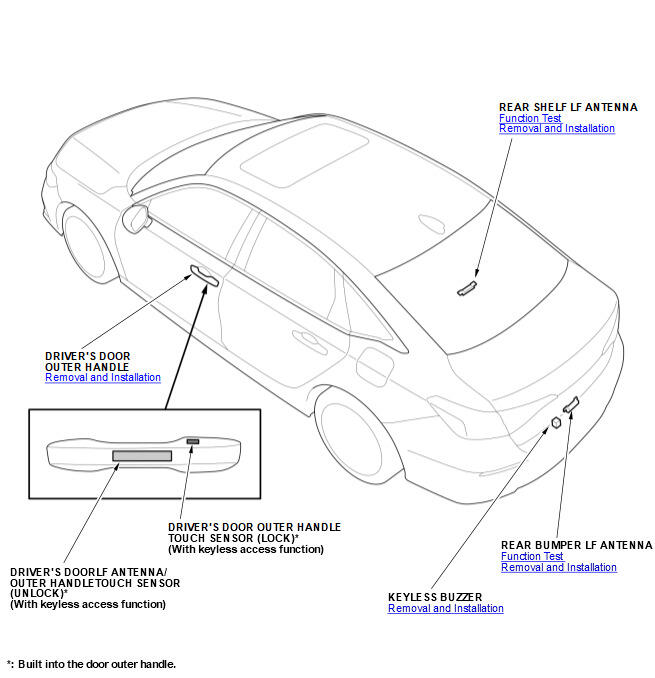

4-door

Courtesy of HONDA, U.S.A., INC.

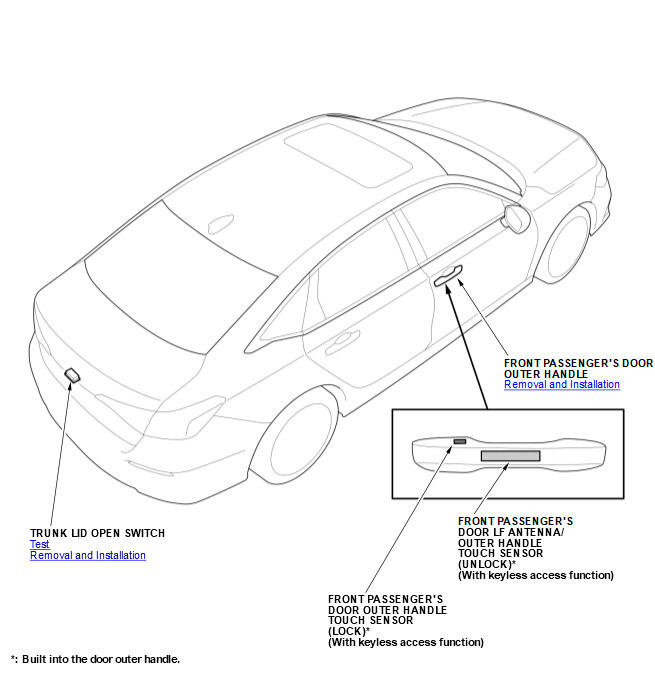

4-door

Courtesy of HONDA, U.S.A., INC.

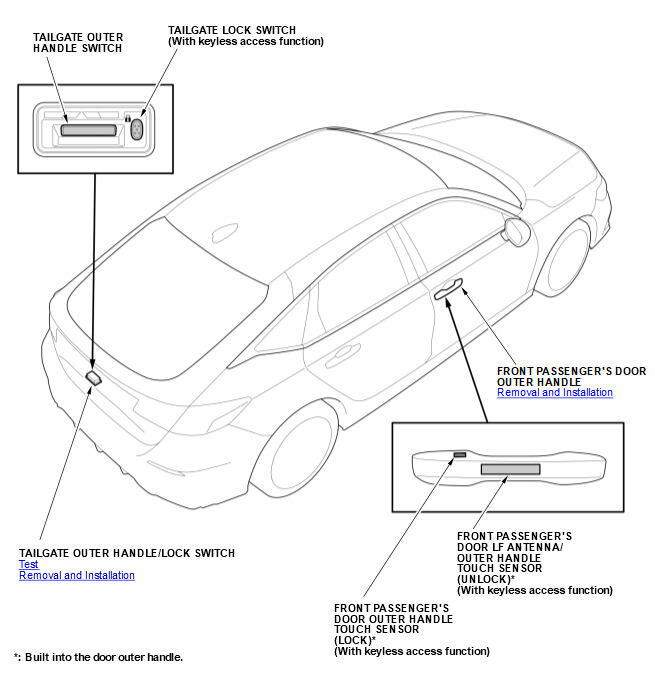

5-door

Courtesy of HONDA, U.S.A., INC.

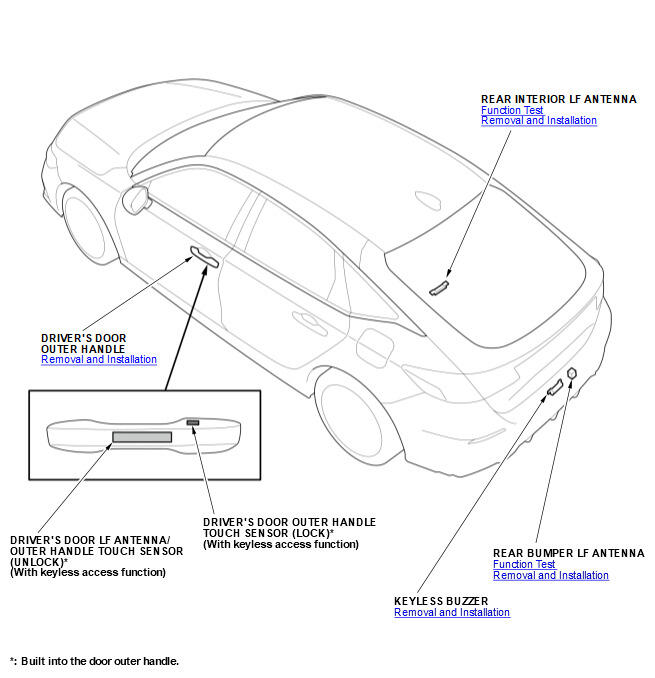

5-door

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
