Safety Support Switch Test: Test

How to use this service information .

1. Safety Support Switch - Test

   Preconditions

   • Driver's Dashboard Lower Cover Removed

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1, 2, 3 and 4)

     NOTICE:

     • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
     • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

     NOTE:  The switch location of the safety support switch is different depending on the model. (Figure 1, 3)

   Figure 1 (5P connector type)

   Courtesy of HONDA, U.S.A., INC.

   Figure 2 (5P connector type)

   Courtesy of HONDA, U.S.A., INC.

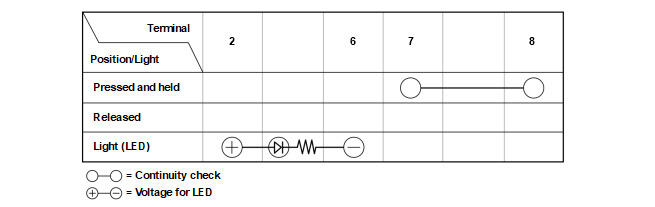

   Figure 3 (8P connector type)

   Courtesy of HONDA, U.S.A., INC.

   Figure 4 (8P connector type)

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If the result is not as specified, replace the safety support switch .
