1. Driver's Power Window Motor - Test

   Preconditions

   • Driver's Door Power Window Switch Panel Removed

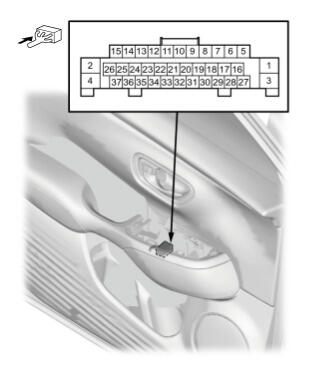

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

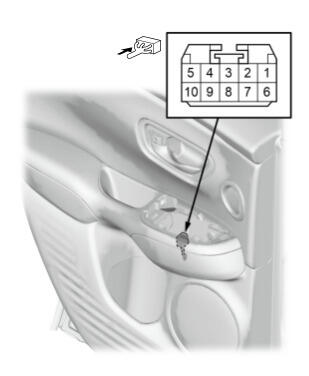

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Test the motor according to the table. When the motor stops running, disconnect 12 volt battery power immediately. (Figure 1 and 2)

   NOTE:

   Before testing, make sure not to short the power window motor circuit.

   • If the motor does not run or fails to run smoothly, then go to step 2.

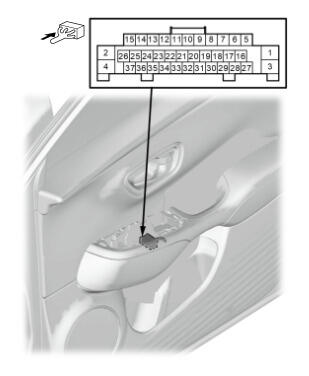

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

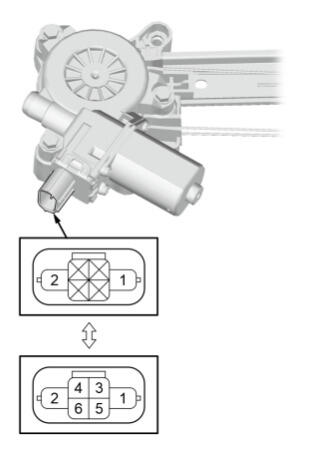

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the driver's door regulator .

   3. Test the motor according to the table. When the motor stops running, disconnect 12 volt battery power immediately. (Figure 3 and 4)

   Result

   • If the motor does not run or fails to run smoothly, the driver's power window motor is faulty; replace the driver's door regulator .
   • If the motor runs smoothly, replace the wire harnesses or adjust the driver's door glass .

   After Test

   • Power Window Control Unit Reset

   Front Passenger's

2. Front Passenger's Power Window Motor - Test

   Preconditions

   • Front Passenger's Door Power Window Switch Panel Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Test the motor according to the table. When the motor stops running, disconnect 12 volt battery power immediately. (Figure 1 and 2)

   NOTE:

   Before testing, make sure not to short the power window motor circuit.

   • If the motor does not run or fails to run smoothly, then go to step 2.

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the front passenger's door regulator .

   3. Test the motor according to the table. When the motor stops running, disconnect 12 volt battery power immediately. (Figure 3 and 4)

   Result

   • If the motor does not run or fails to run smoothly, the front passenger's power window motor is faulty; replace the front passenger's door regulator .
   • If the motor runs smoothly, replace the wire harnesses or adjust the front passenger's door glass .

   After Test

   • With front power windows AUTO UP/DOWN function: Power Window Control Unit Reset

   Rear

3. Rear Power Window Motor - Test

   Preconditions

   • Rear Door Power Window Switch Panel Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Test the motor according to the table. When the motor stops running, disconnect 12 volt battery power immediately. (Figure 1 and 2)

   NOTE:

   Before testing, make sure not to short the power window motor circuit.

   • If the motor does not run or fails to run smoothly, then go to step 2.

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the rear door regulator .

   3. Test the motor according to the table. When the motor stops running, disconnect 12 volt battery power immediately. (Figure 3 and 4)

   Result

   • If the motor does not run or fails to run smoothly, the rear power window motor is faulty; replace the rear door regulator .
   • If the motor runs smoothly, replace the wire harnesses or adjust the rear door glass .
