DTC Advanced Diagnostics: P1714: General Description

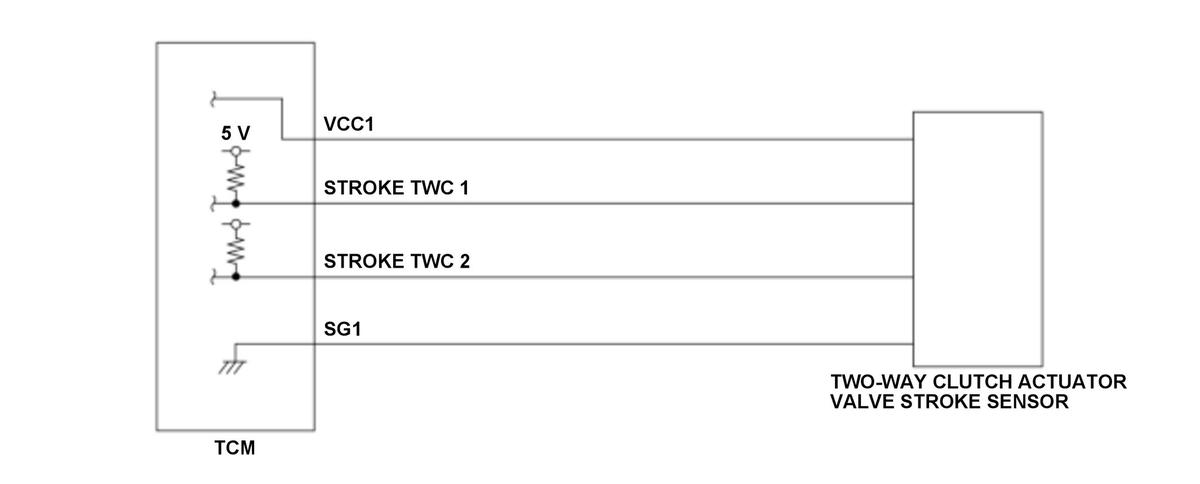

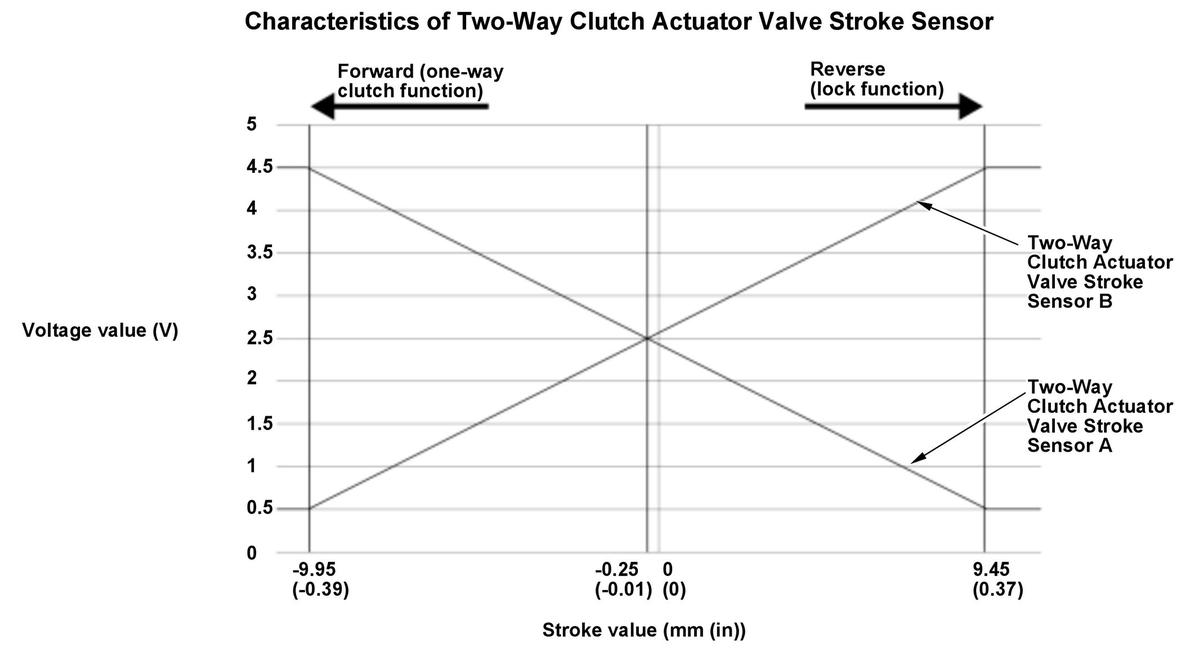

The transmission control module (TCM) judges the two-way clutch position by the output voltage from the two-way clutch actuator valve stroke sensor. The TCM monitors the total value of the two-way clutch actuator valve stroke sensor A output voltage and the two-way clutch actuator valve stroke sensor B output voltage, and when the total voltage is out of specified range for a specified duration, the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1.0 second or more |
| DTC Type | One drive cycle, MIL on, shift position indicator blinks |
