DTC Advanced Diagnostics: P07BE: General Description

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

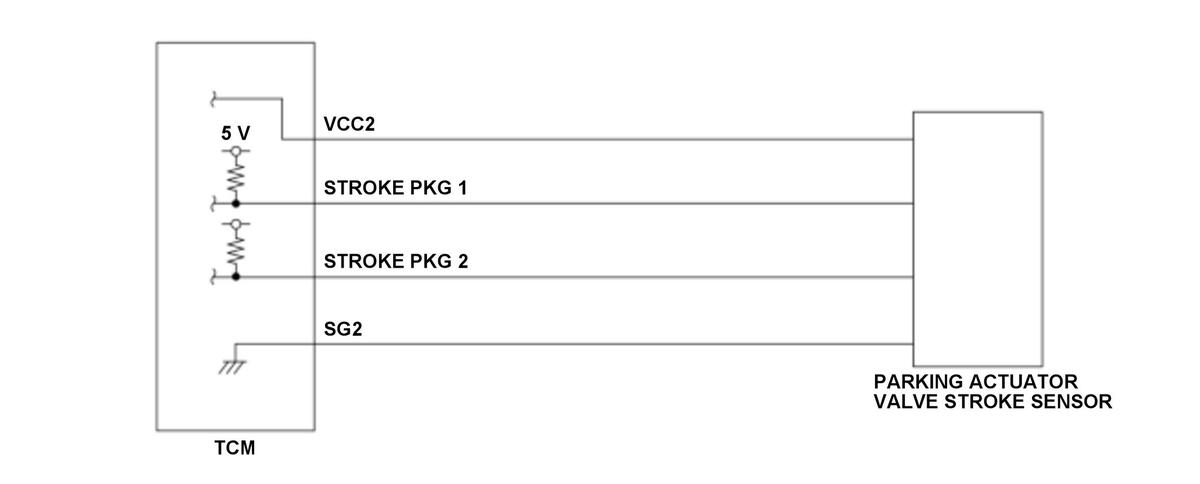

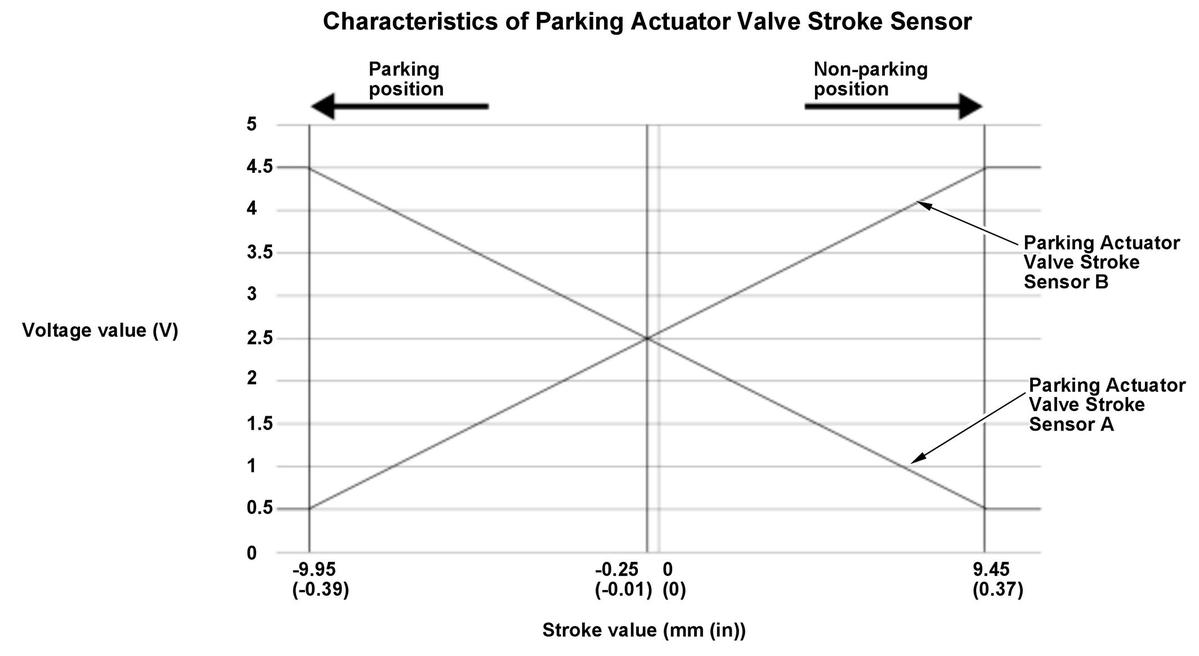

The transmission control module (TCM) judges the parking position by the output voltage from the parking actuator valve stroke sensor. The TCM monitors the total value of the parking actuator valve stroke sensor A output voltage and the parking actuator valve stroke sensor B output voltage, and when the total voltage is out of specified range for a specified duration, the TCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type
