Enable Conditions
| Condition | Minimum | Maximum | |
|---|---|---|---|
| Engine speed [Engine Speed] | - | 4,000 rpm | |
| 12 volt battery voltage [Battery Voltage] | 10 V | - | |
| Line pressure commanded pressure | - | 900 kPa (9.17 kgf/cm 2, 130.5 psi) | |
| Other | Steady 2nd to 10th gear ratio or reverse preparation | ||

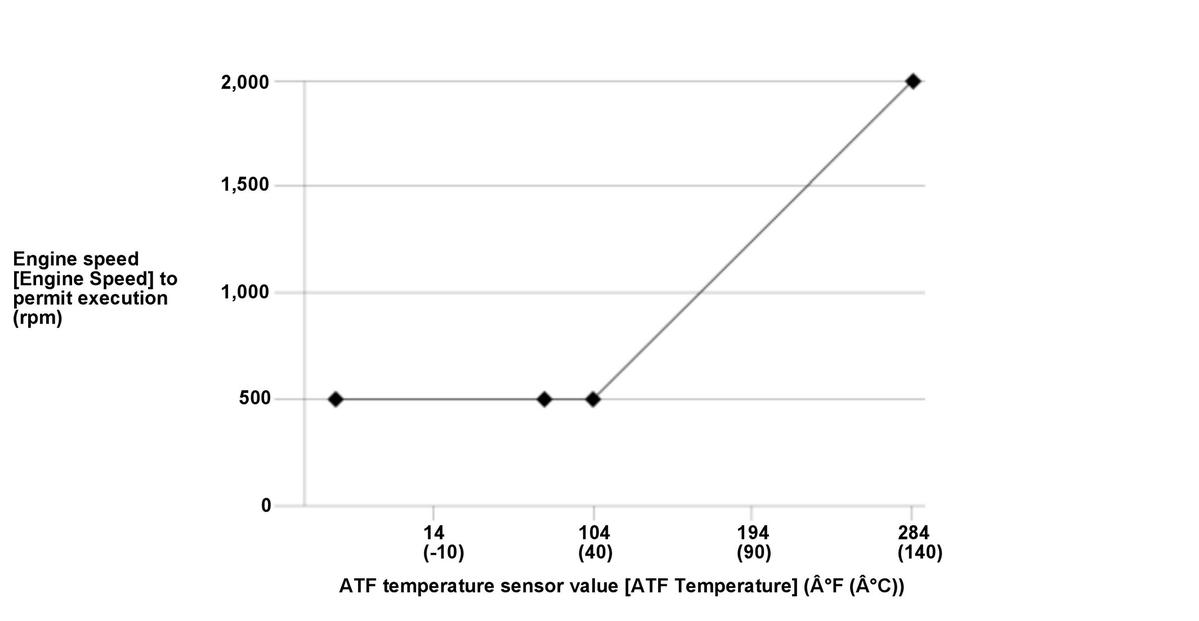

| The engine speed [Engine Speed] to permit execution of the malfunction diagnosis must be the value or more shown in the following graph depending on the ATF temperature sensor value [ATF Temperature] | |||
[ ]:HDS Parameter
