Rear Brake Area

For Replacement of components listed below, see Repair Procedure

Special Tools Required

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Screwdriver, Torque, Adjustable Snap-On QDRIVER4*
Courtesy of HONDA, U.S.A., INC.	Bit, Power, TORX, T10 Snap-On SDMT310A*

*Available through the Honda Tool and Equipment Program 888-424-6857

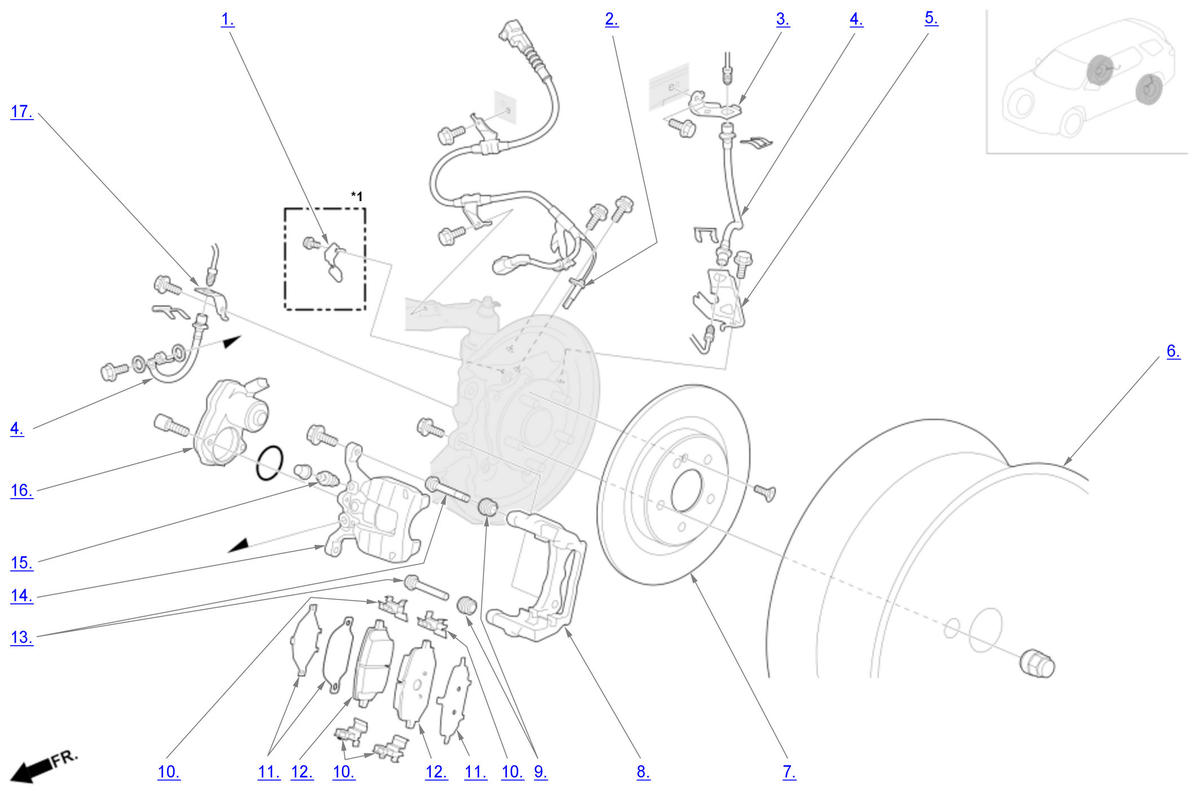

Exploded View Of Rear Brake Area (Items 1 thru 17) (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

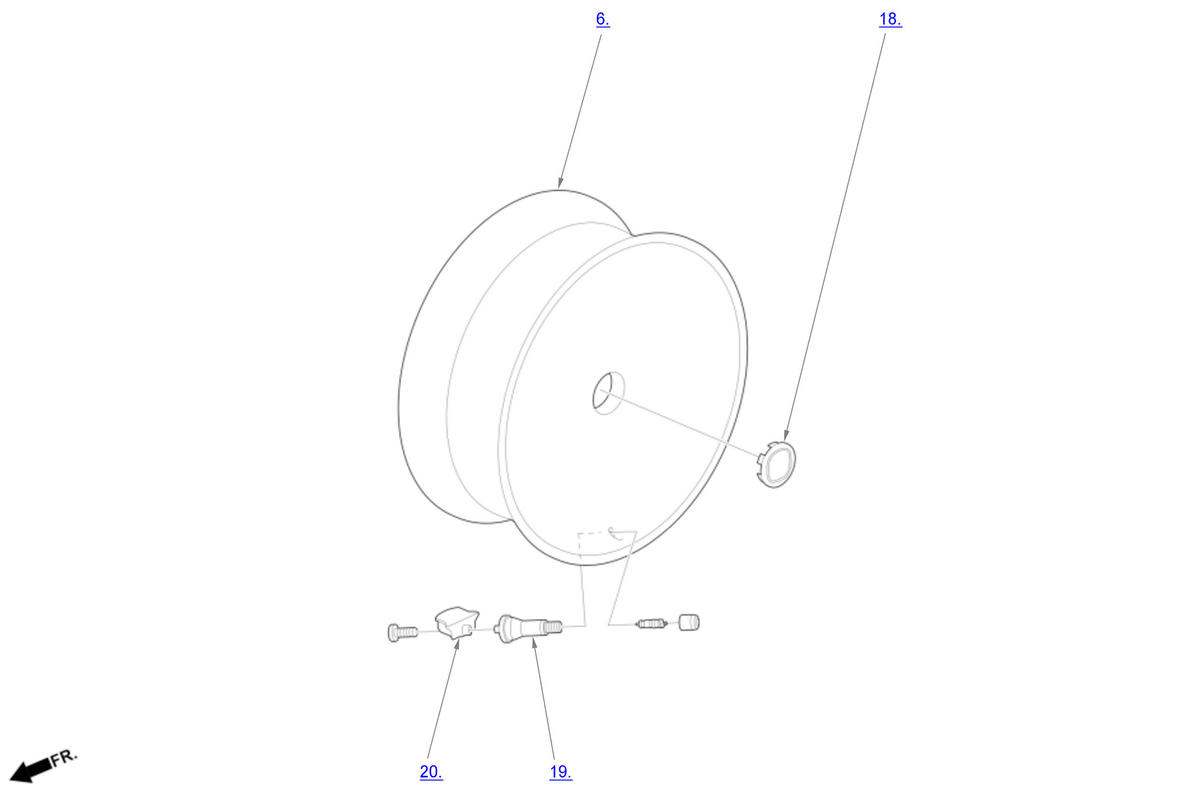

Exploded View Of Rear Brake Area (Items 18 thru 20) (2 Of 2)

Courtesy of HONDA, U.S.A., INC.
