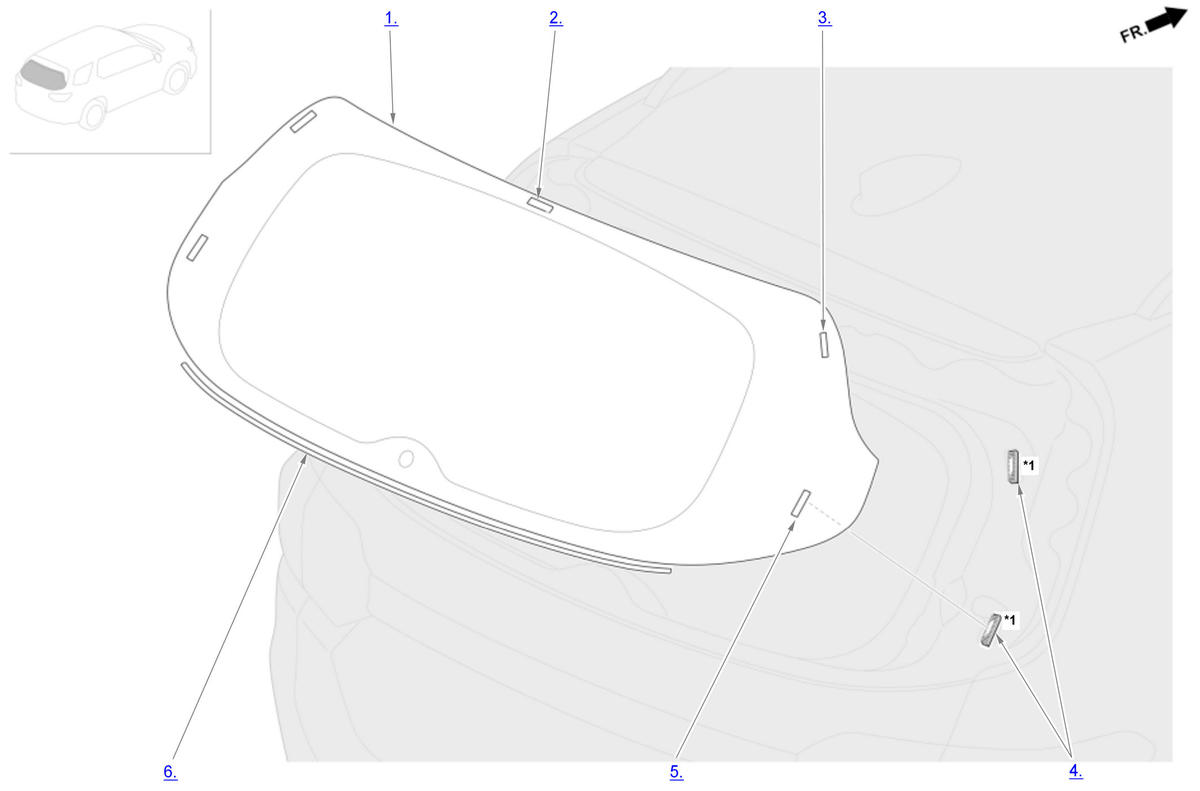

Exploded View
For Replacement of components listed below, see Repair Procedure
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |
Rear Window Area
| Component Name | Callout |
|---|---|
| Rear Window | 1 |
| Rear Window Spacer | 2 |
| Fastener A | 3 |
| Fastener (Body) | 4 |
| Fastener B | 5 |
| Rubber Dam | 6 |
