Power Windows System Description

Basic Control/Function

• Manual Up/Down Function

  The 1-step operation of the power window switch moves the window up or down.

  This is available when the vehicle is in the ON mode or while the vehicle OFF operation function.

• Auto Up/Down Function

  The 2-step operation of the power window switch moves the window up or down automatically.

  This is available when the vehicle is in the ON mode or while the vehicle OFF operation function.

Note: If the engine is restarted at the time of the power window UP/DOWN operation during idling stop, the UP/DOWN operation may stop temporarily and resume due to the temporary battery voltage drop caused by cranking.

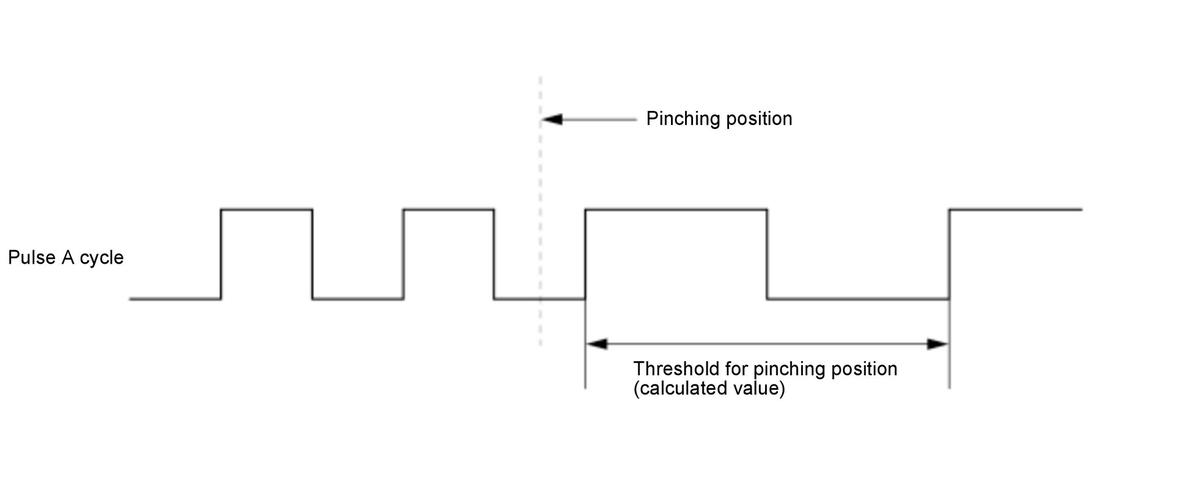

Auto Reverse Power Window Function

When an object is detected during the auto up operation, the window stops closing and reverses about 70 mm (2.76 in). If the window is less than halfway opened (about 220 mm (8.66 in)), it will reverse to the half open position (about 220 mm (8.66 in)). In manual operation, this function is active for the passenger power windows equipped with AUTO UP/DOWN function. This function is activated based on the calculation of the rotation speed and load change of motor's pulse A.

Courtesy of HONDA, U.S.A., INC.

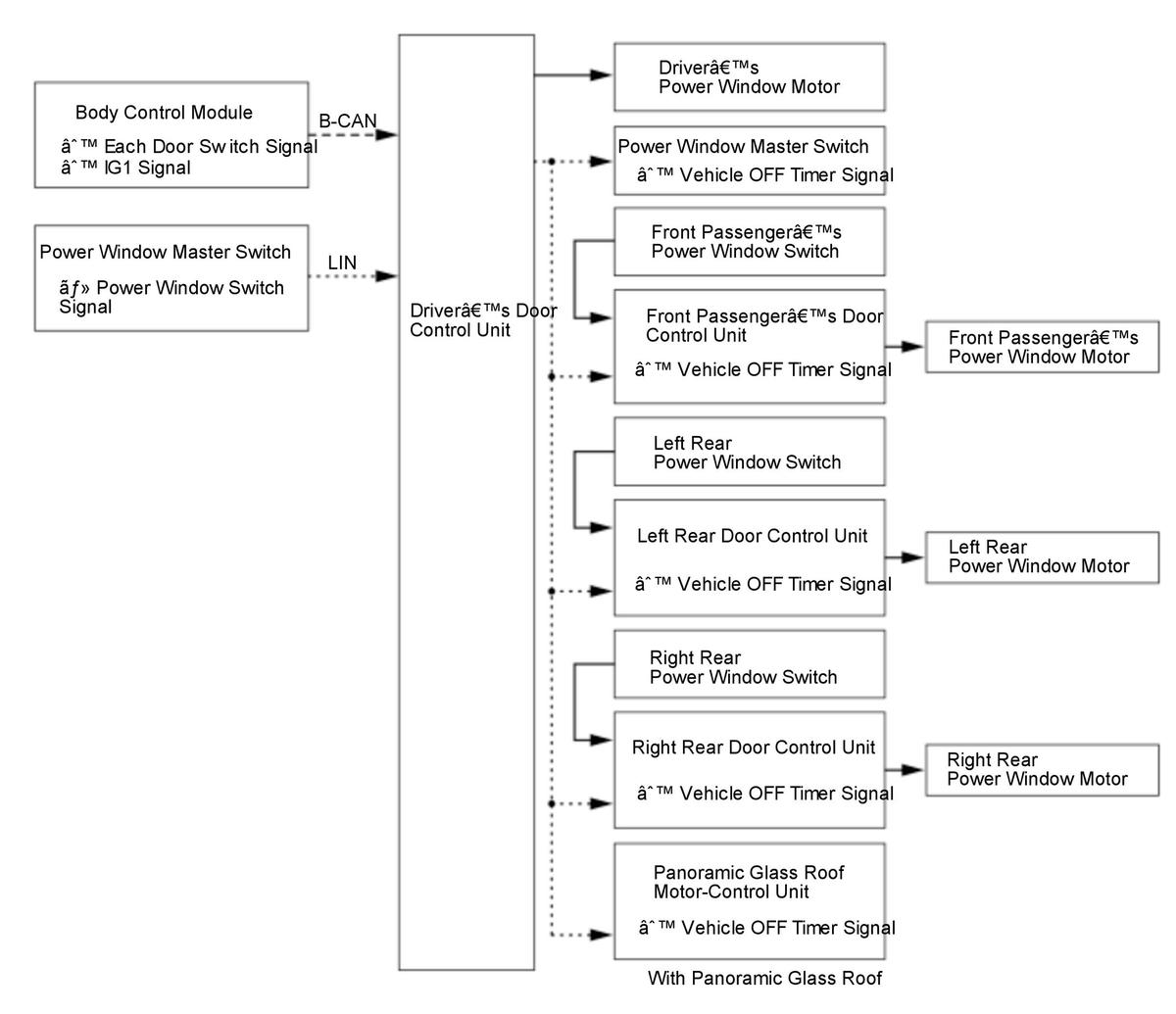

Vehicle OFF Operation Function

The vehicle OFF operation is controlled by the driver's door control unit. During a certain period of time after the vehicle OFF (LOCK) mode, the window's open/close operation by the power window switches is available.

Courtesy of HONDA, U.S.A., INC.

Vehicle OFF Operation Start Condition		Vehicle ON mode → OFF (LOCK) mode Driver's door switch OFF (Door close) Front passenger's door switch OFF (Door close)
Vehicle OFF Operation Cancel Condition	Timer	Vehicle ON mode → OFF (LOCK) mode and elapsed 10 minutes
	Door	Driver's door or front passenger's door switch ON (Door open)

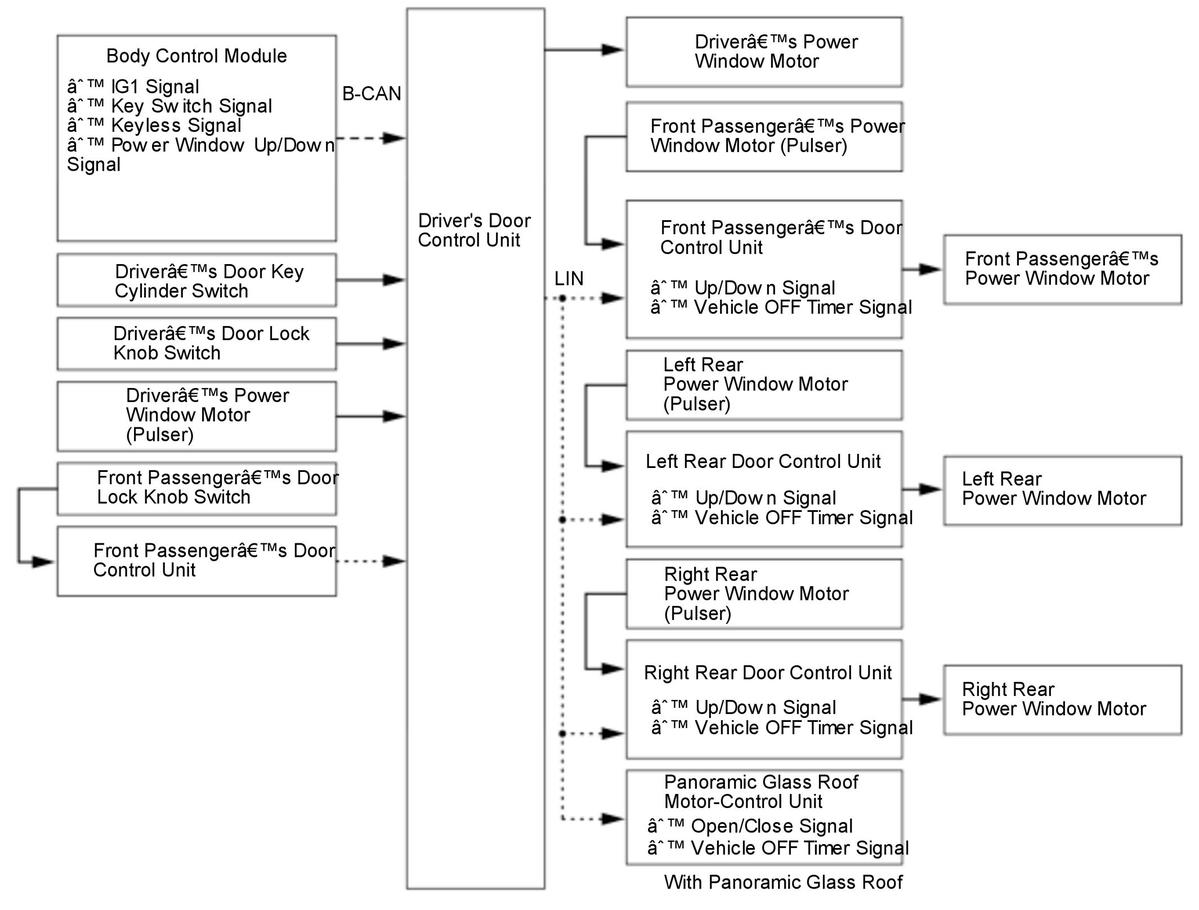

Keyless/Key Cylinder Operation Function

By pressing the UNLOCK (or LOCK) button on the remote a second time and holding it, the windows and the panoramic glass roof open (or close). The windows and the panoramic glass roof stop moving when the UNLOCK (or LOCK) button is released.

By turning the key a second time and holding it with the key inserted into the driver's door key cylinder, the windows and the panoramic glass roof close (or open) (turn the key to UNLOCK direction to open, turn the key to LOCK direction to close). The windows and the sunroof stop moving when the key is returned to the neutral position.

Courtesy of HONDA, U.S.A., INC.

Keyless Operation	Open	Possible
	Close	Possible
Key Cylinder Operation	Open	Possible
	Close	Possible

Continuous Operation Stop Function

With the vehicle in the ON mode, when reciprocating movement "upper end → lower end → upper end" is repeated 5 times using the AUTO or MANUAL operation of each seat, the DOWN operation is prohibited for about 30 seconds.

Courtesy of HONDA, U.S.A., INC.

Failsafe Function

When a failure occurs in the inputs of the motor pulses and power window switches, the failsafe function stops the control of each function.
