DTC B1649 (Keyless Access Control Unit)
›
Inspection Outline
Inspection Outline

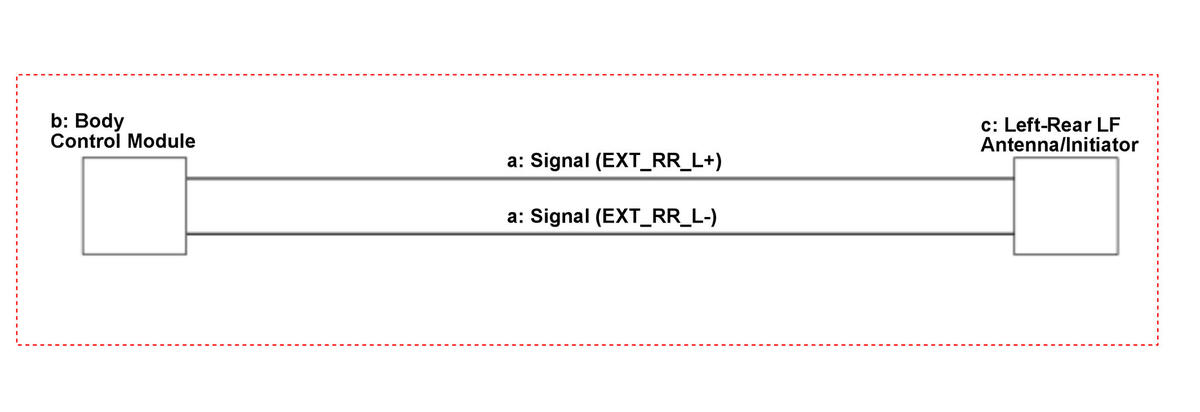

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
EXT_RR_L+, EXT_RR_L- Shorted Wire Inspection
b
Body Control Module
Body Control Module Inspection
c
Left-Rear LF Antenna/Initiator
Left-Rear LF Antenna/Initiator Inspection
