Removal and Installation

How to use this manual .

WARNING:

Flammable - Keep Fire Away

NOTICE:

• Refer to the Fuel and Emissions Systems Service Precautions before doing the procedure.
• When replacing the fuel injector, always replace all three injectors on the same bank as a set and the fuel joint pipe. Failure to do so will cause poor engine performance and fuel leaks.

NOTE:

• Where icon is shown, click for further information.
• If you reuse the injector after removal, note the cylinder number and install it to the same cylinder.

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes and precautions

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes and precautions

1. Fuel Pressure - Relieve - Refer to: Fuel Pressure Relieving () or Fuel Pressure Test ()
2. 12 Volt Battery Terminal - Disconnect

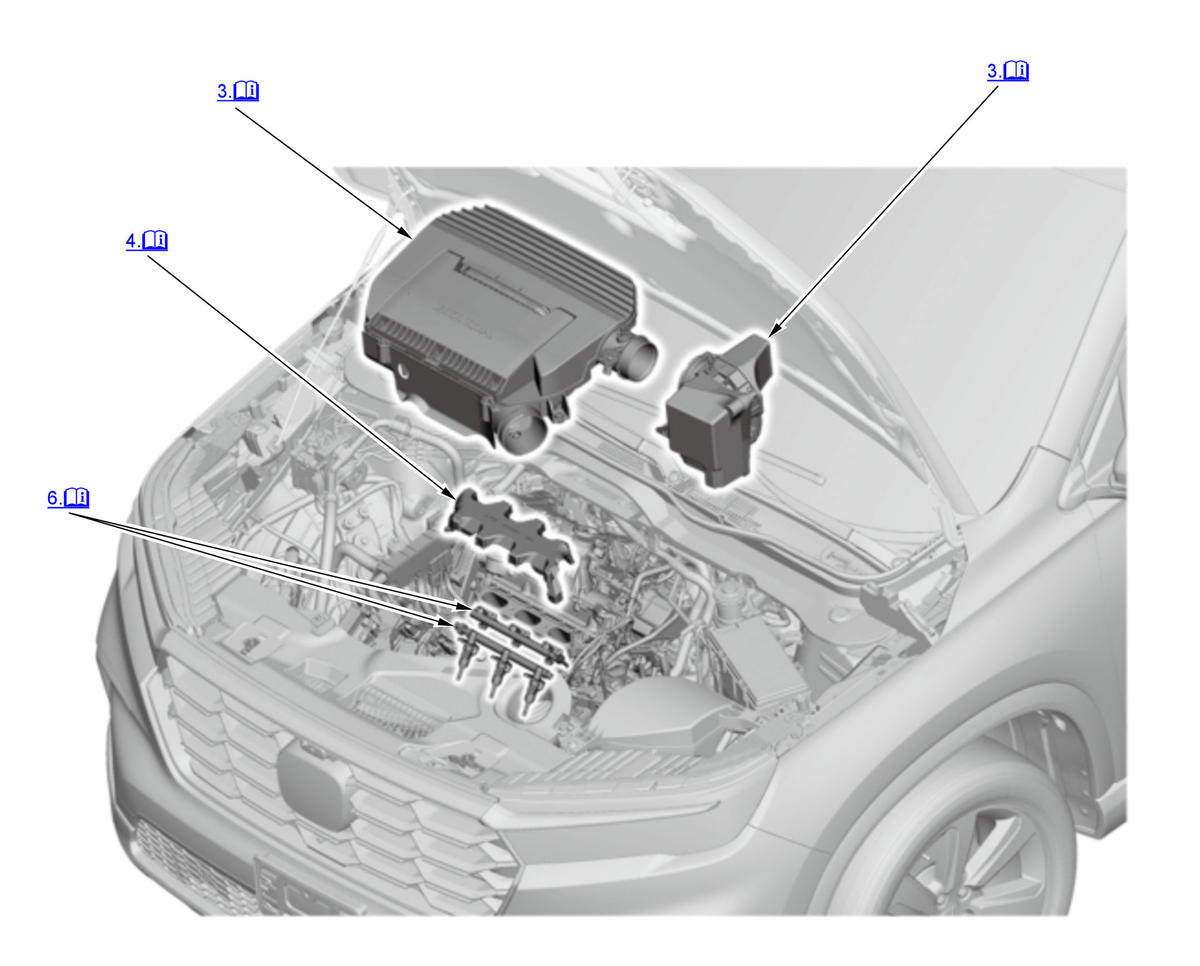

3. Air Cleaner Area Parts - Remove
   • Air Cleaner Area
   • • Air Flow Tube
     • Air Cleaner Housing
4. Intake Manifold Area Parts - Remove
   • Intake Manifold Area
   • • Intake Manifold
     • Intake Manifold Base
     • High Pressure Fuel Pump Cover
     • Fuel Joint Pipe
     • Fuel Rail Cover

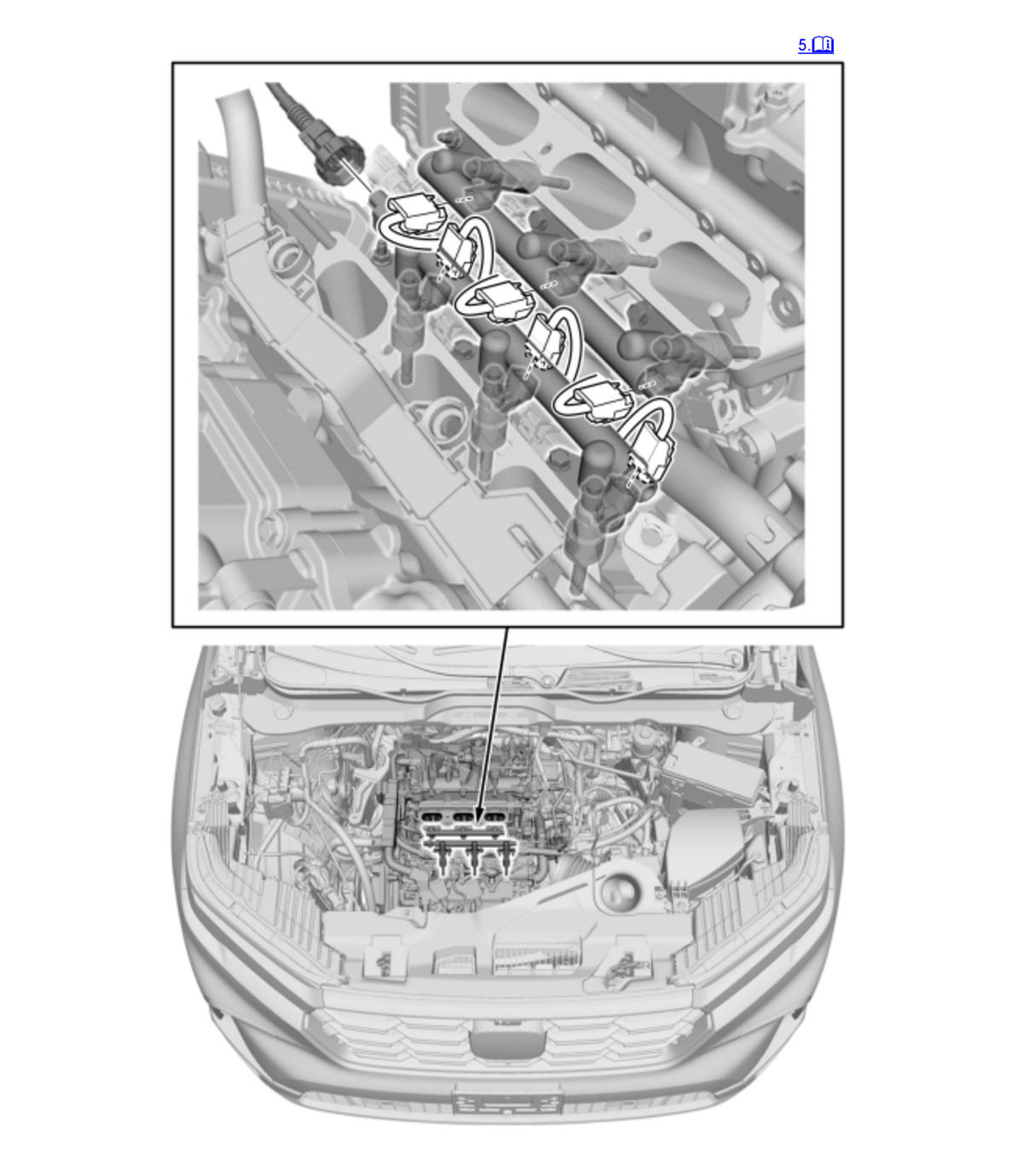

5. Connector - Disconnect
   • Injector Connector
   • Fuel Pressure Sensor Connector
6. Fuel Rail/Injector - Remove
   • Fuel Rail/Injector
7. All Removed Parts - Install
   • Install the parts in the reverse order of removal.
8. 12 Volt Battery Terminal - Reconnect
9. Fuel Leak - Check (High Pressure Side)
