Installation Procedure

    Fig 1: View Of Oil Level Sensor
    GM260123Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the oil level sensor to the oil pan.

    Tighten:  Tighten the oil level sensor to 13 N.m (115 lb in).

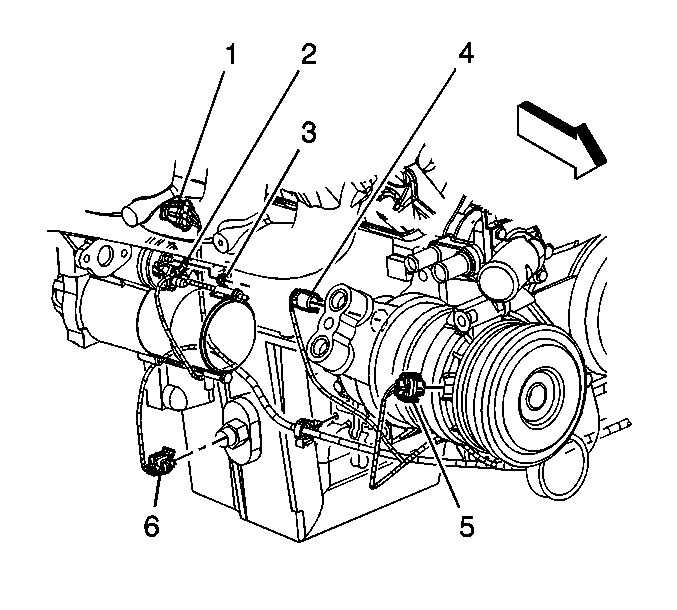

    2. Fig 2: View Of RH Side Of Engine Electrical Connectors
    GM662991Courtesy of GENERAL MOTORS CORP.
  2. Connect the oil level sensor electrical connector (6).
  3. Fill the engine oil. Refer to Engine Oil and Oil Filter Replacement .
