Memory Seats Schematics

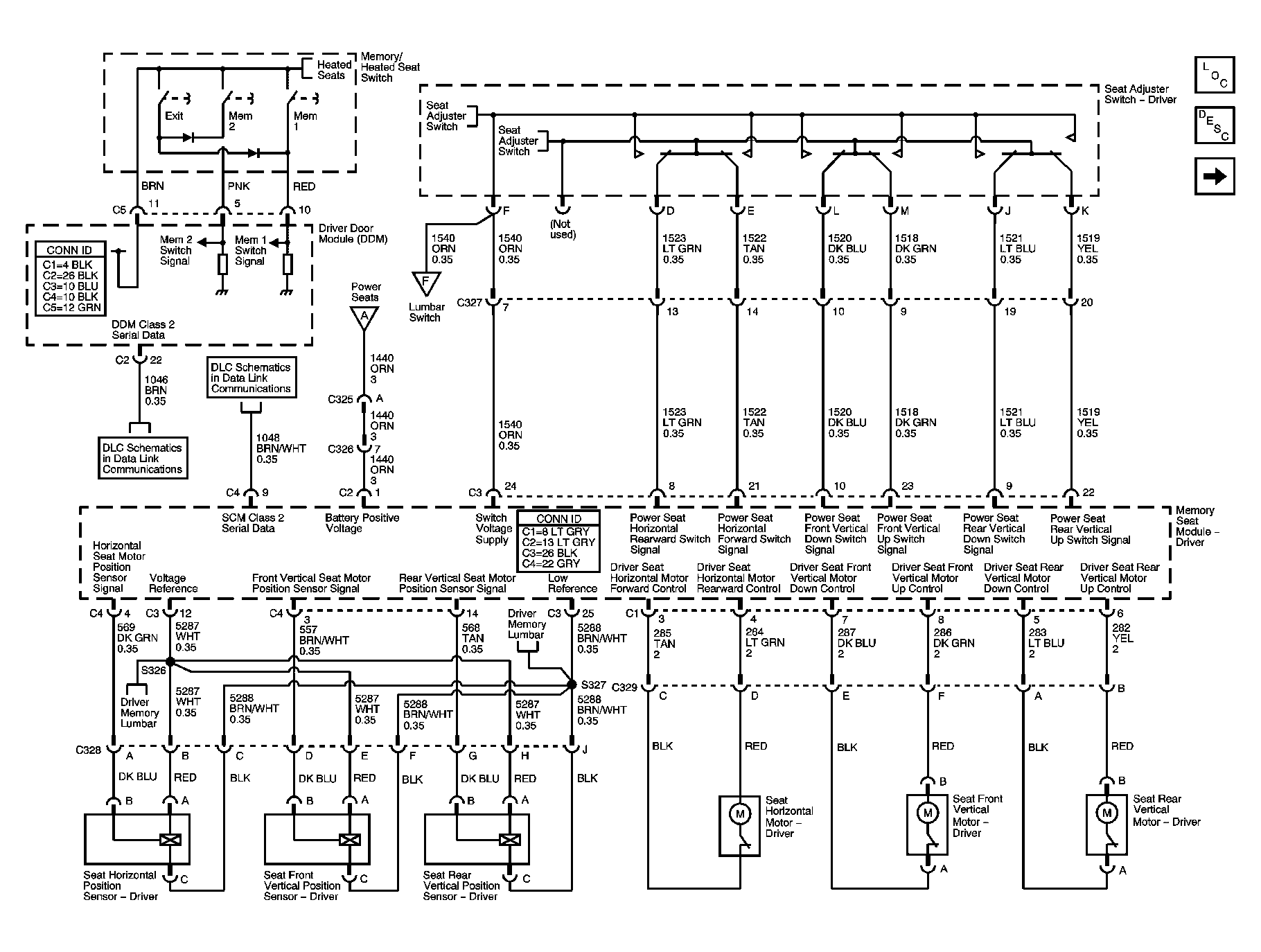

Fig 1: Driver Memory Seat & Memory Switch Schematic
GM839898Courtesy of GENERAL MOTORS CORP.

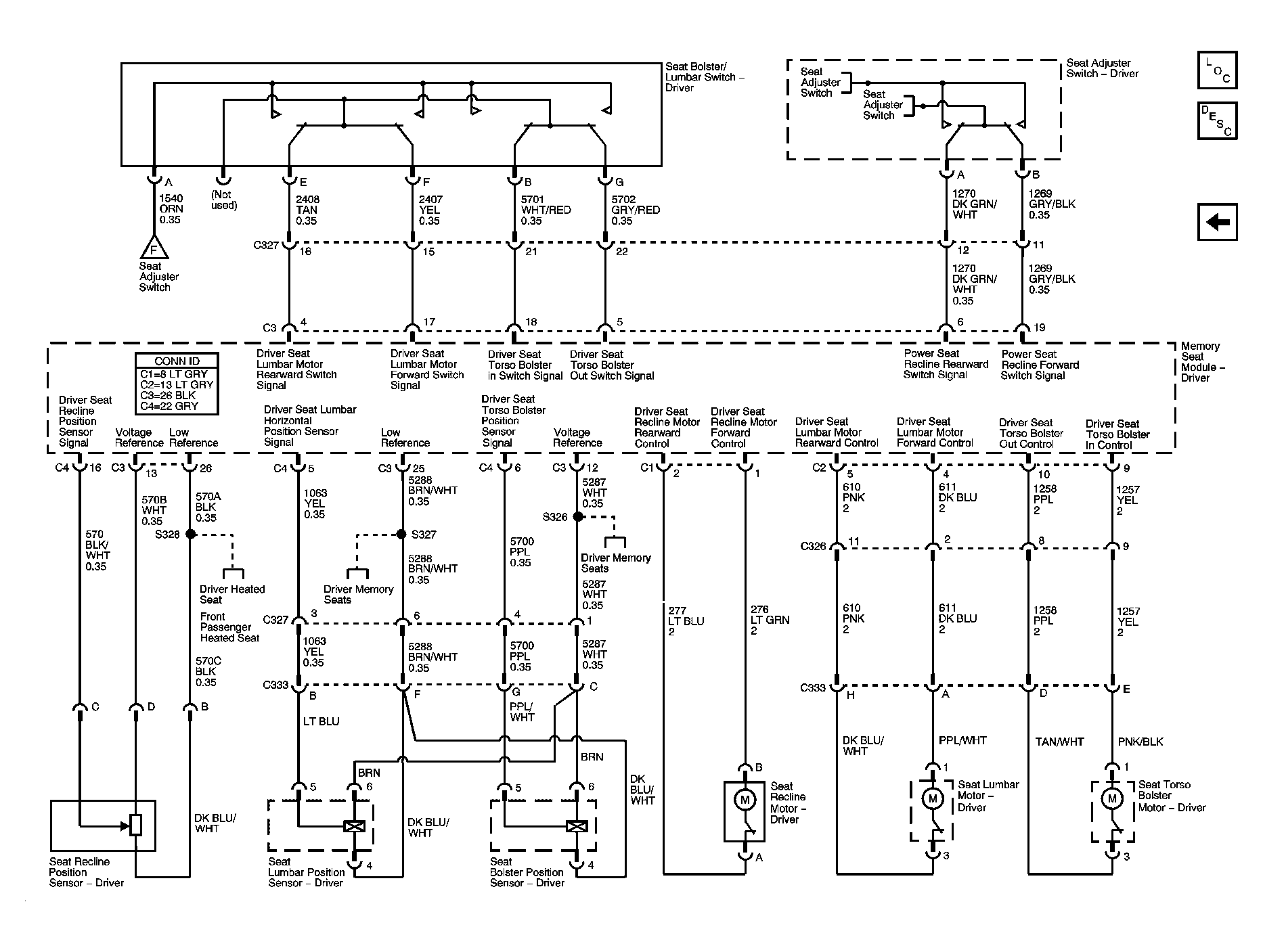

Fig 2: Driver Memory Lumbar, Torso Bolster & Recline Schematic
GM839899Courtesy of GENERAL MOTORS CORP.
