Hummer
›
2003
›
H2
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Doors, Mirrors & Windows
›
Schematic & Routing Diagrams
›
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

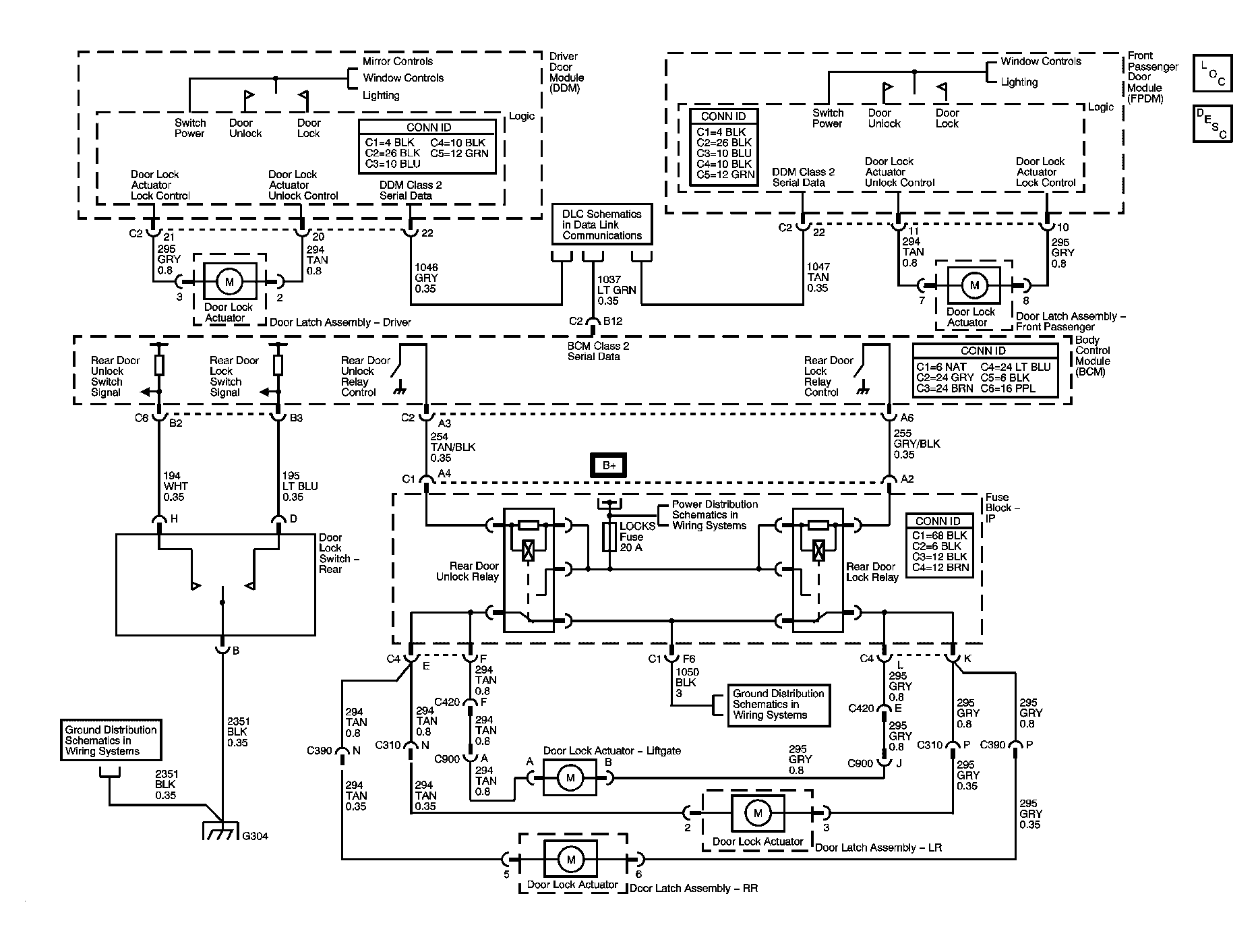

Fig 1: Door Lock/Indicator Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
