Inside Rearview Mirror Schematics

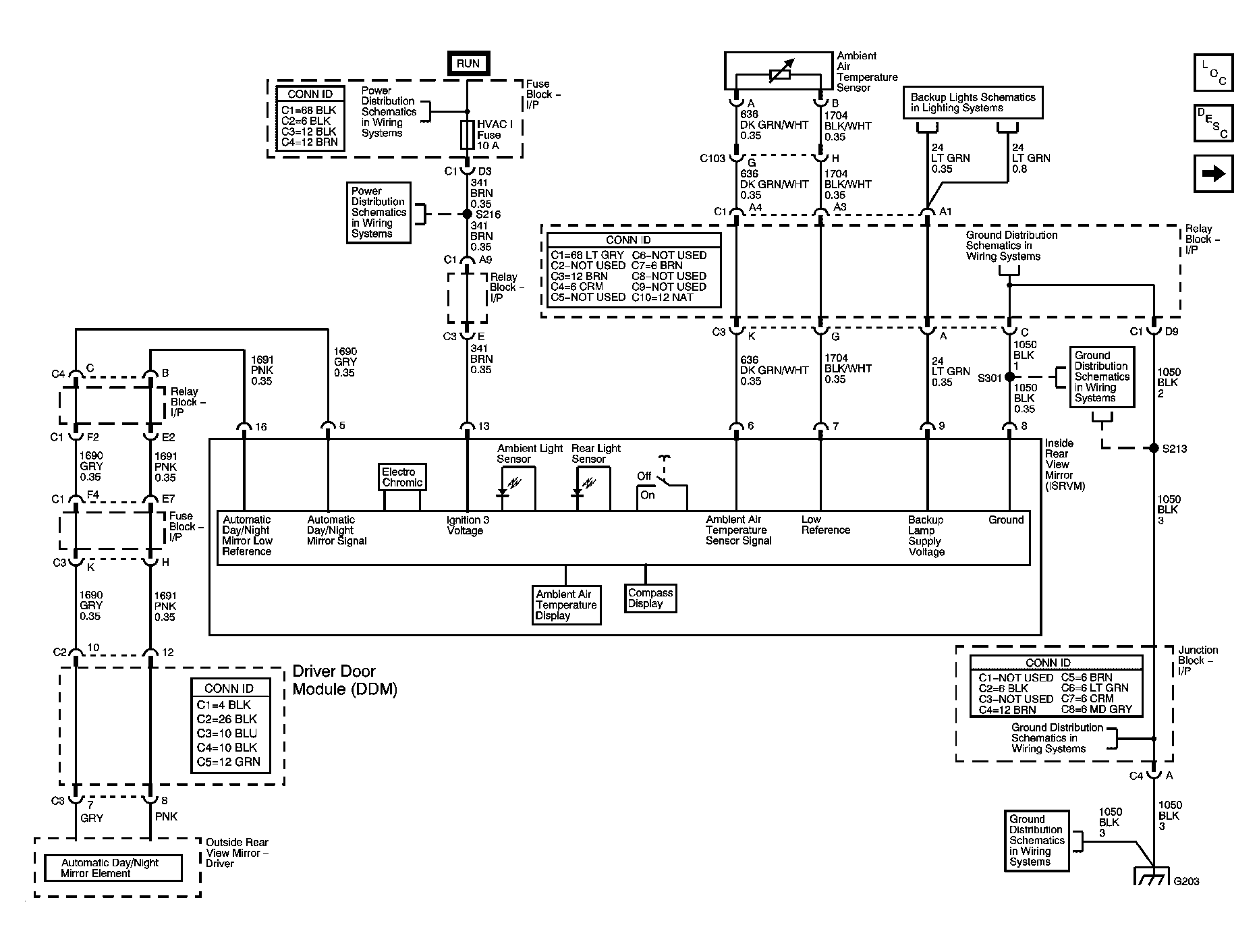

Fig 1: Inside Rearview Mirror (Without Sunroof) Schematic

Courtesy of GENERAL MOTORS CORP.

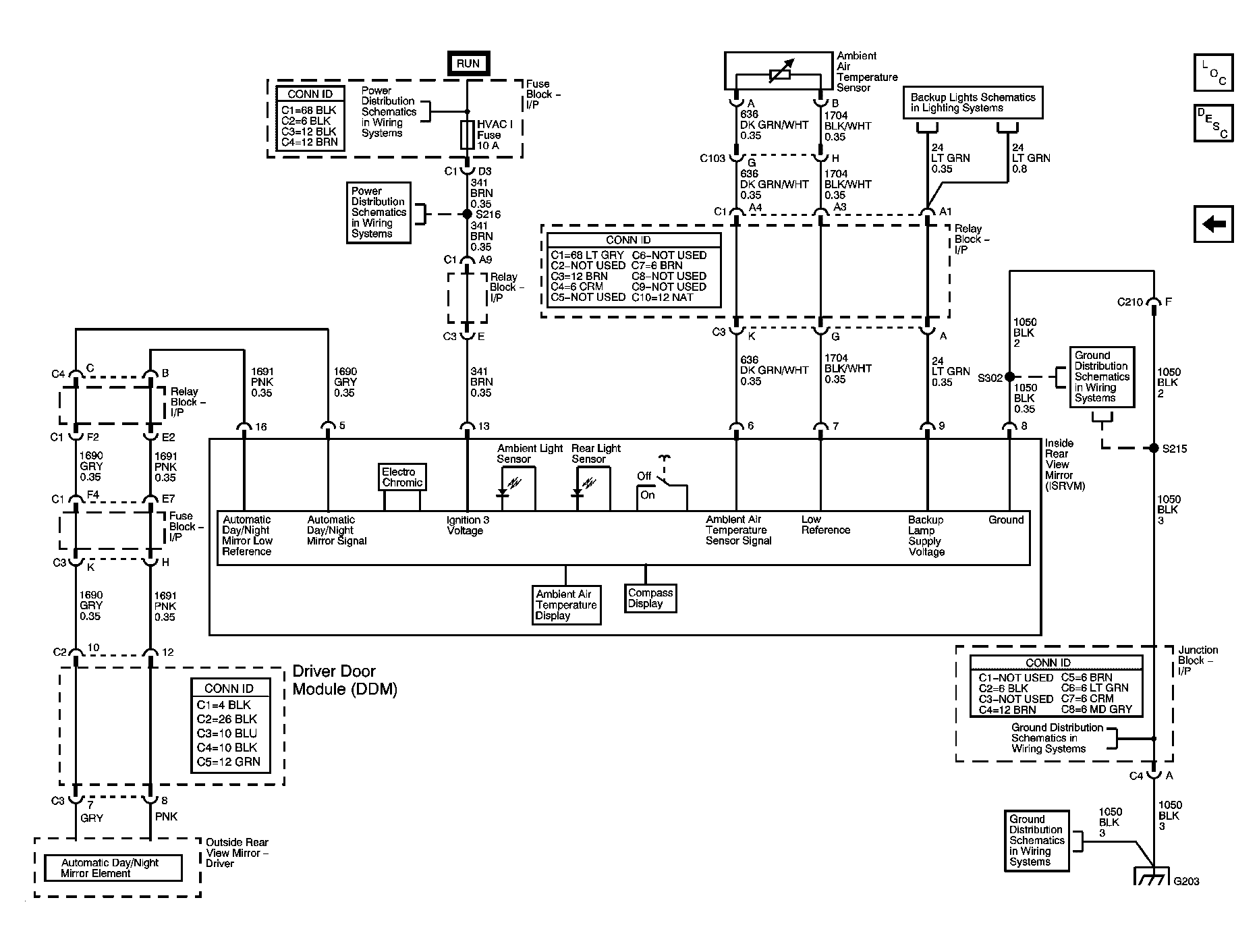

Fig 2: Inside Rearview Mirror (With Sunroof) Schematic

Courtesy of GENERAL MOTORS CORP.
