Correct Contact Pattern: Condition

The backlash and pinion depth is correct.

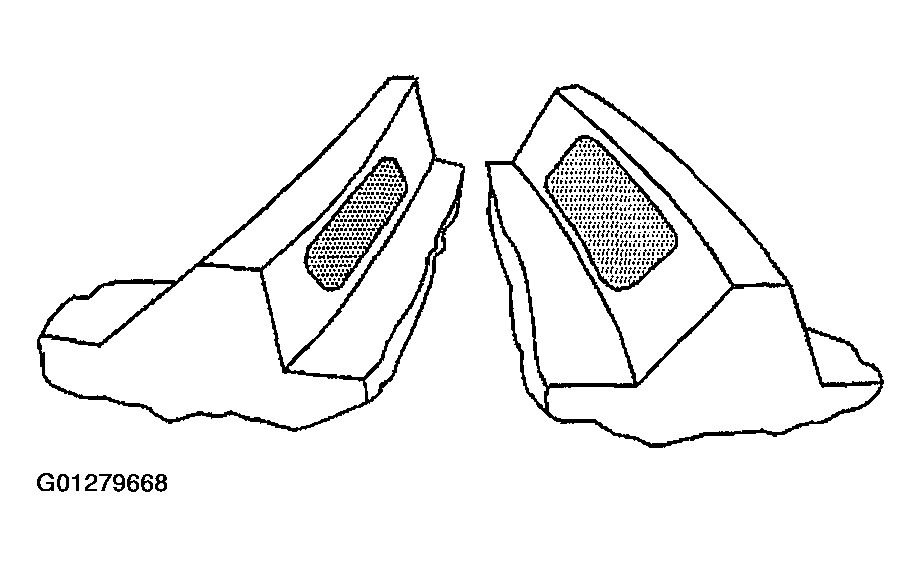

Fig 1: Identifying Correct Ring & Pinion Gear Contact Pattern
G01279668Courtesy of GENERAL MOTORS CORP.
