Specifications
›
Axle Preload & Backlash Specifications
Axle Preload & Backlash Specifications

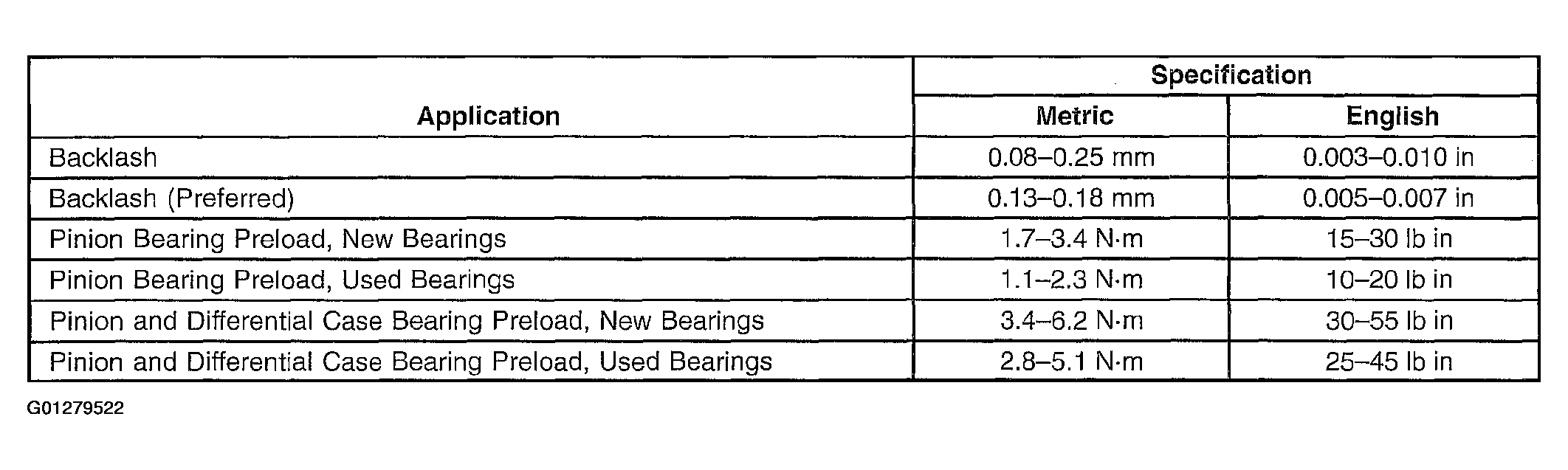

Fig 1: Axle Preload & Backlash Specifications Table
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
