PID Values

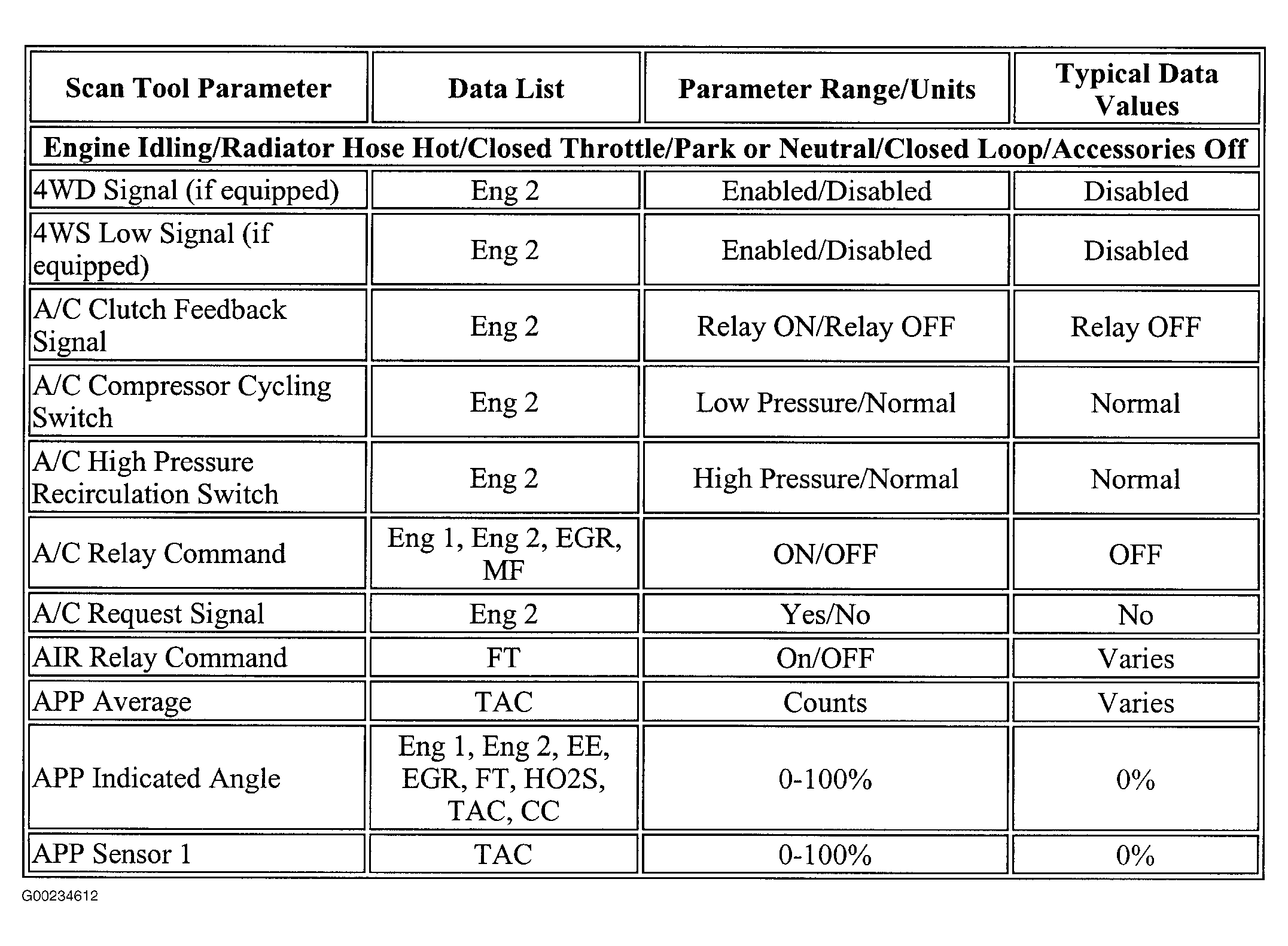

Fig 1: PID Values (1 Of 5)
G00234612Courtesy of GENERAL MOTORS CORP.

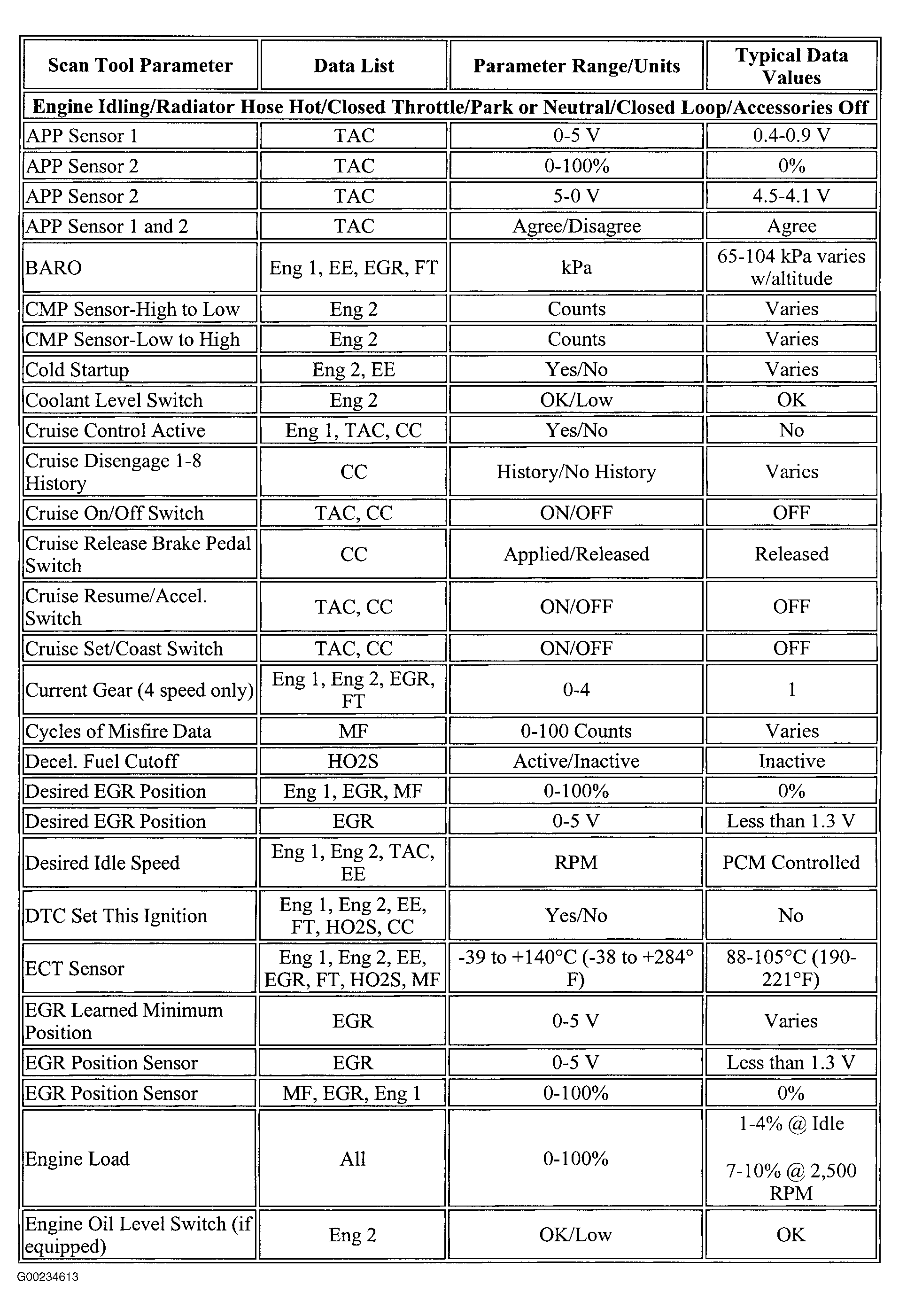

Fig 2: PID Values (2 Of 5)
G00234613Courtesy of GENERAL MOTORS CORP.

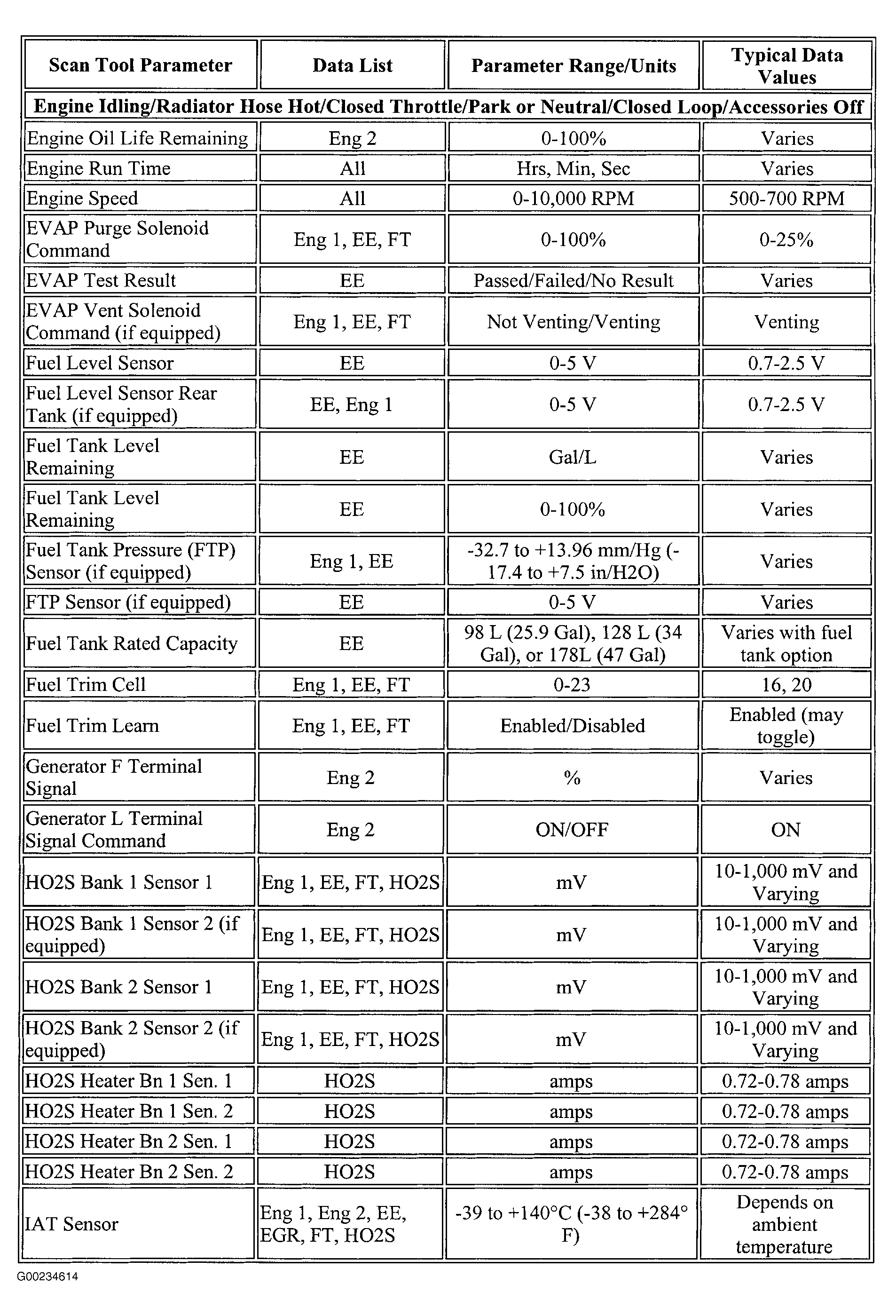

Fig 3: PID Values (3 Of 5)
G00234614Courtesy of GENERAL MOTORS CORP.

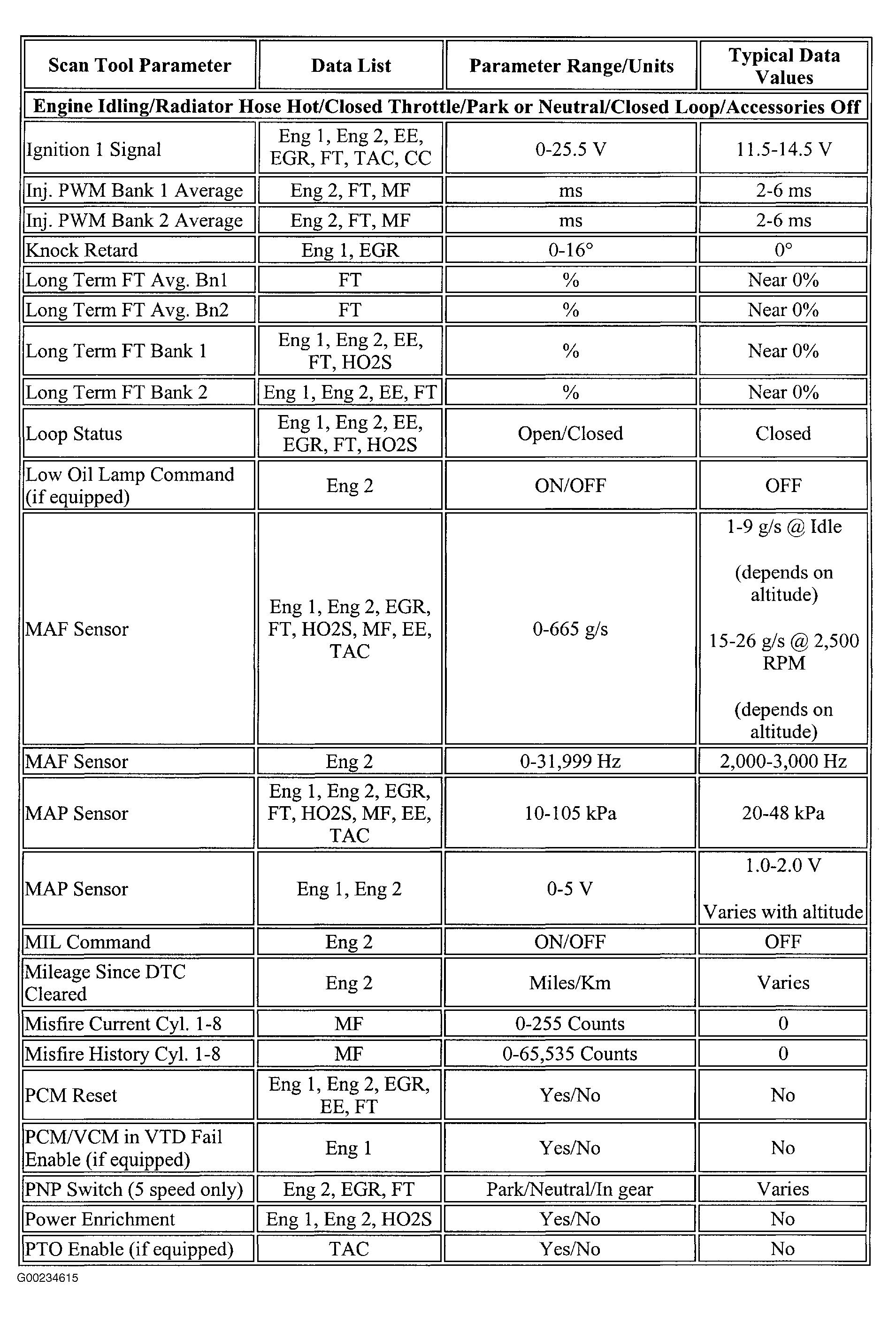

Fig 4: PID Values (4 Of 5)
G00234615Courtesy of GENERAL MOTORS CORP.

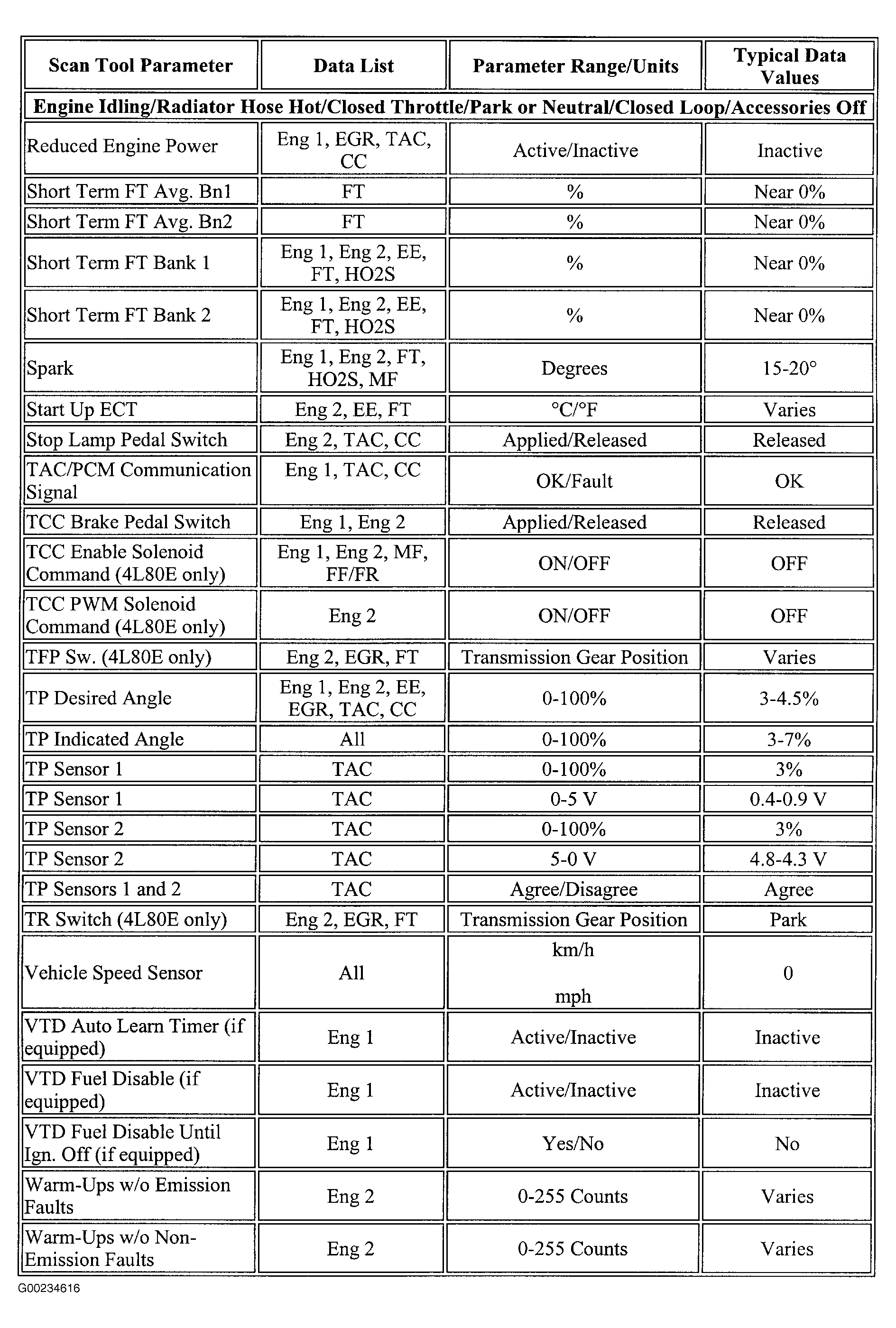

Fig 5: PID Values (5 Of 5)
G00234616Courtesy of GENERAL MOTORS CORP.
