Accelerator Pedal Position Sensor Connector End View (Hummer H2)

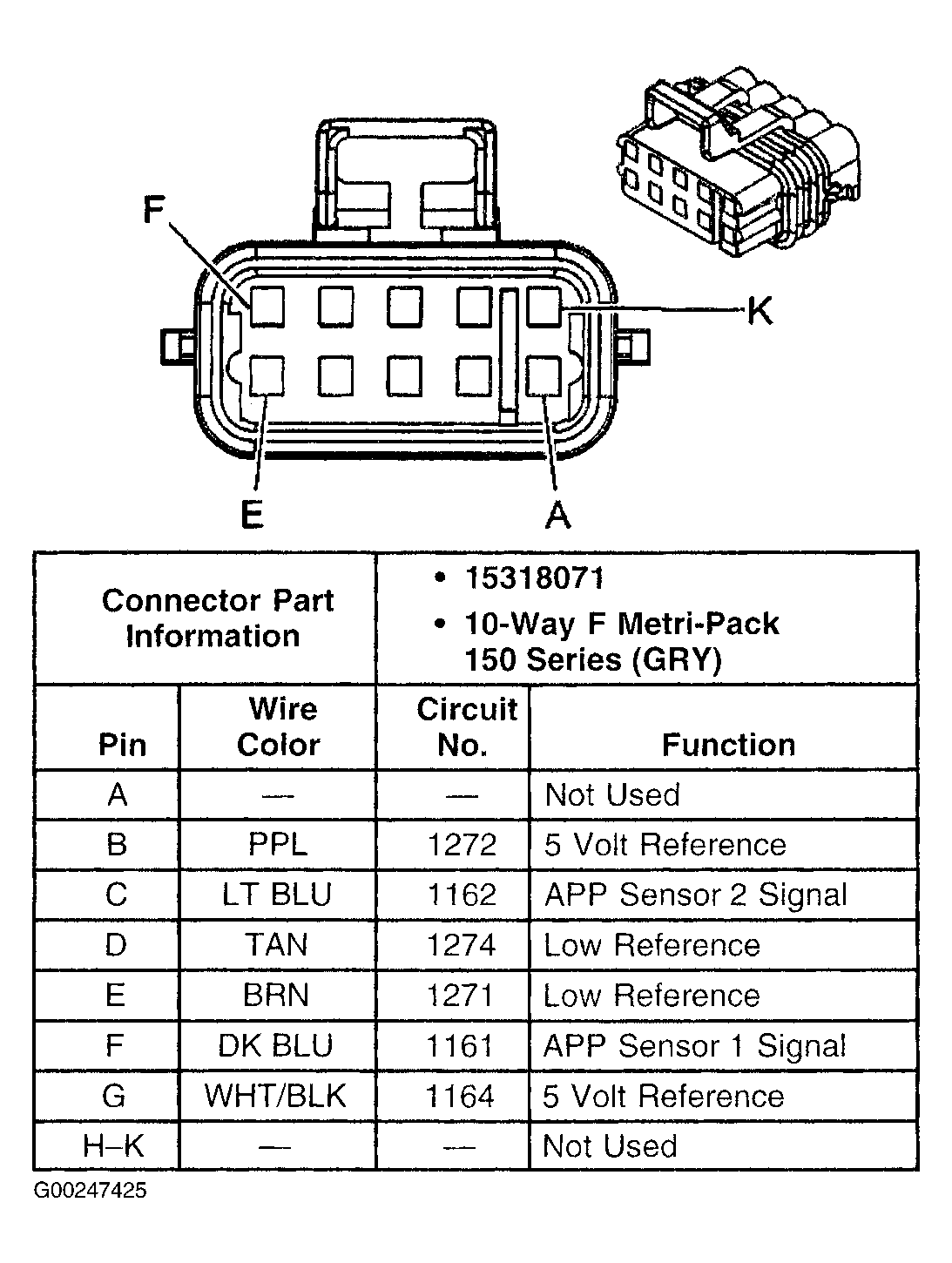

Fig 1: Accelerator Pedal Position Sensor Connector End View (Hummer H2)
G00247425Courtesy of GENERAL MOTORS CORP.
