Front Knock Sensor Connector End View (Hummer H2)

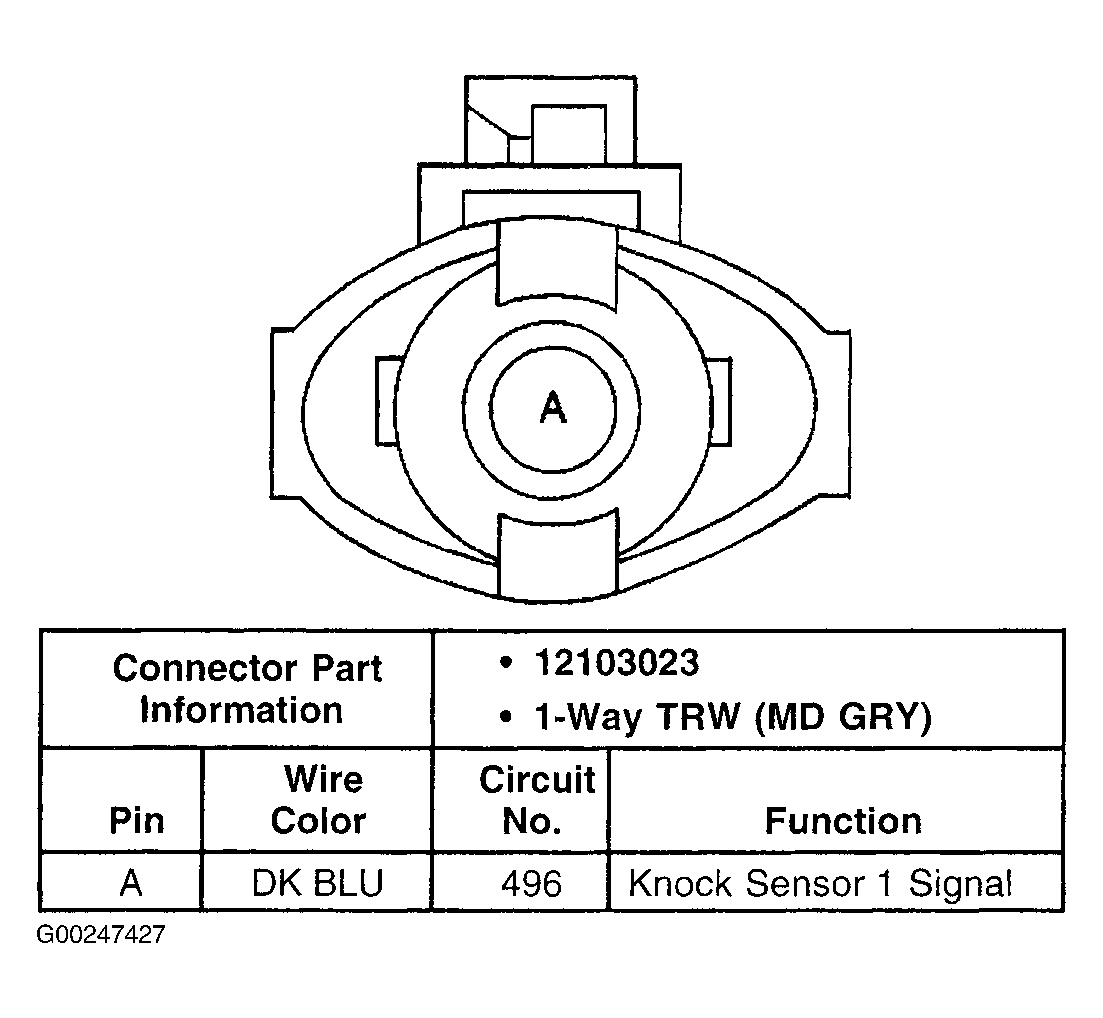

Fig 1: Front Knock Sensor Connector (Hummer H2)
G00247427Courtesy of GENERAL MOTORS CORP.
