Fuel Composition Sensor Connector End View (5.3L Flex-Fuel)

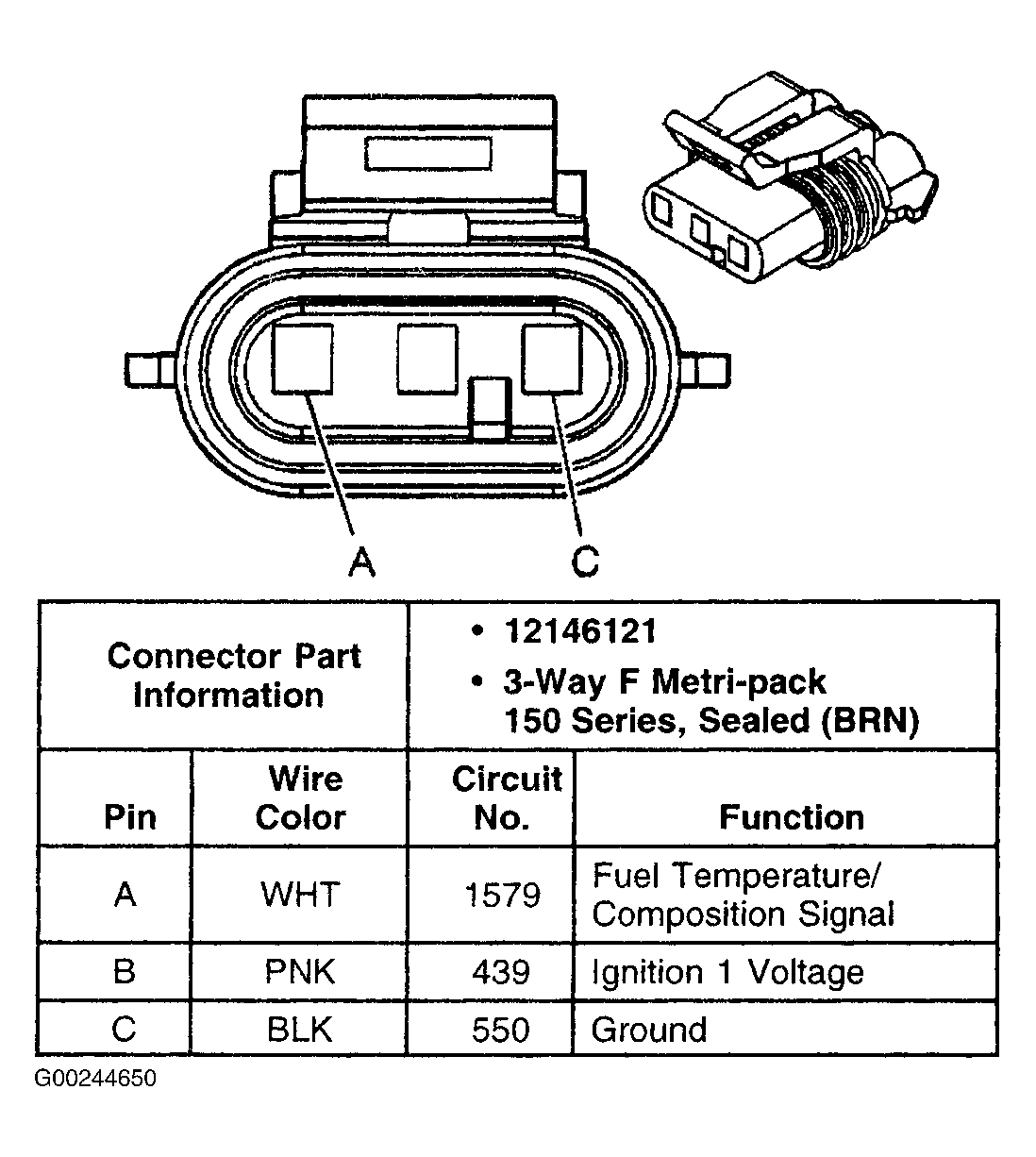

Fig 1: Fuel Composition Sensor Connector End View (5.3L Flex-Fuel)
G00244650Courtesy of GENERAL MOTORS CORP.
