OEM Connector End Views
›
Connector End Views
›
Fuel Tank Pressure Sensor Connector End View
Fuel Tank Pressure Sensor Connector End View

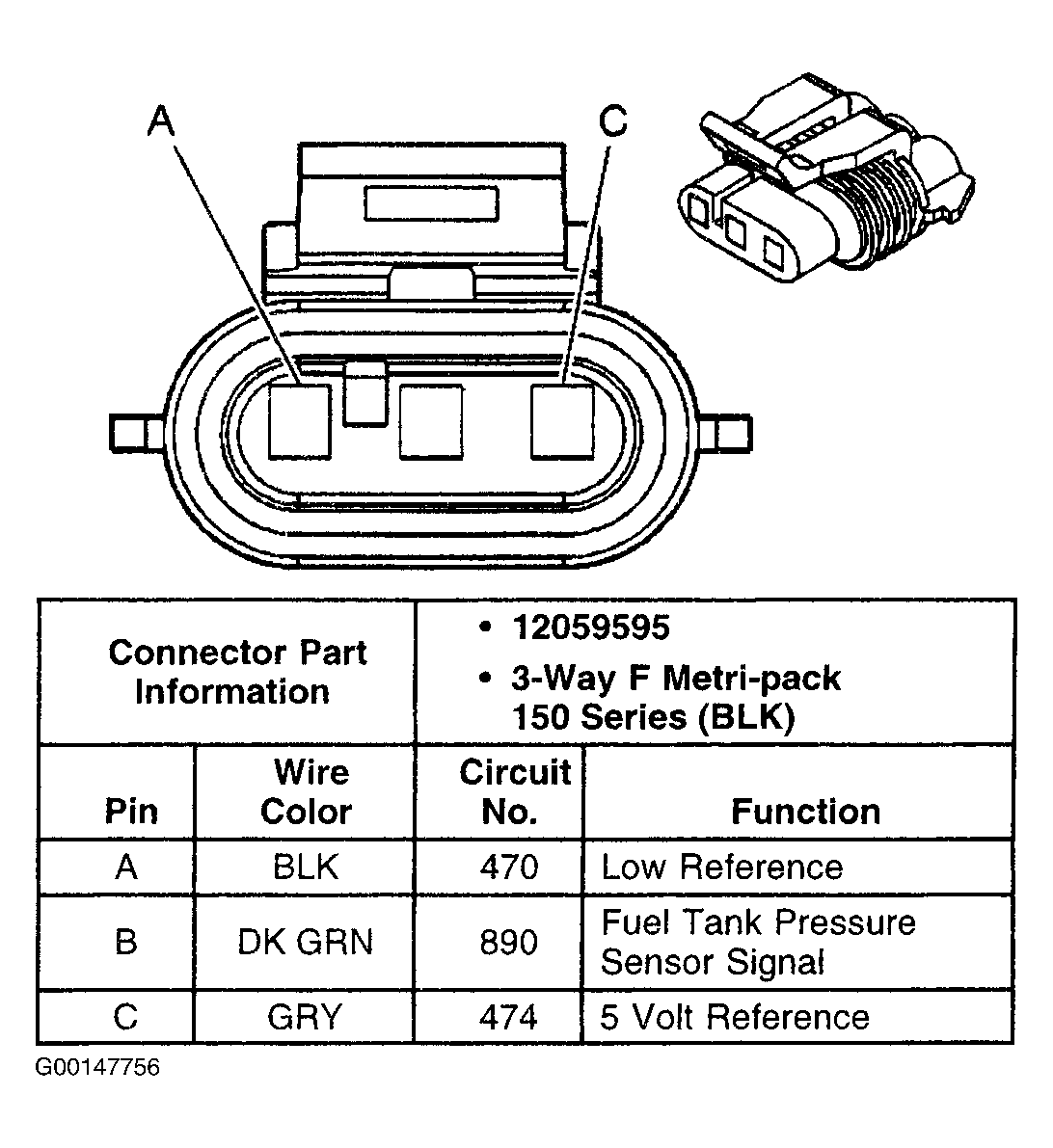

Fig 1: Fuel Tank Pressure Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
