Ignition Coil 8 Connector End View
Ignition Coil 8 Connector End View

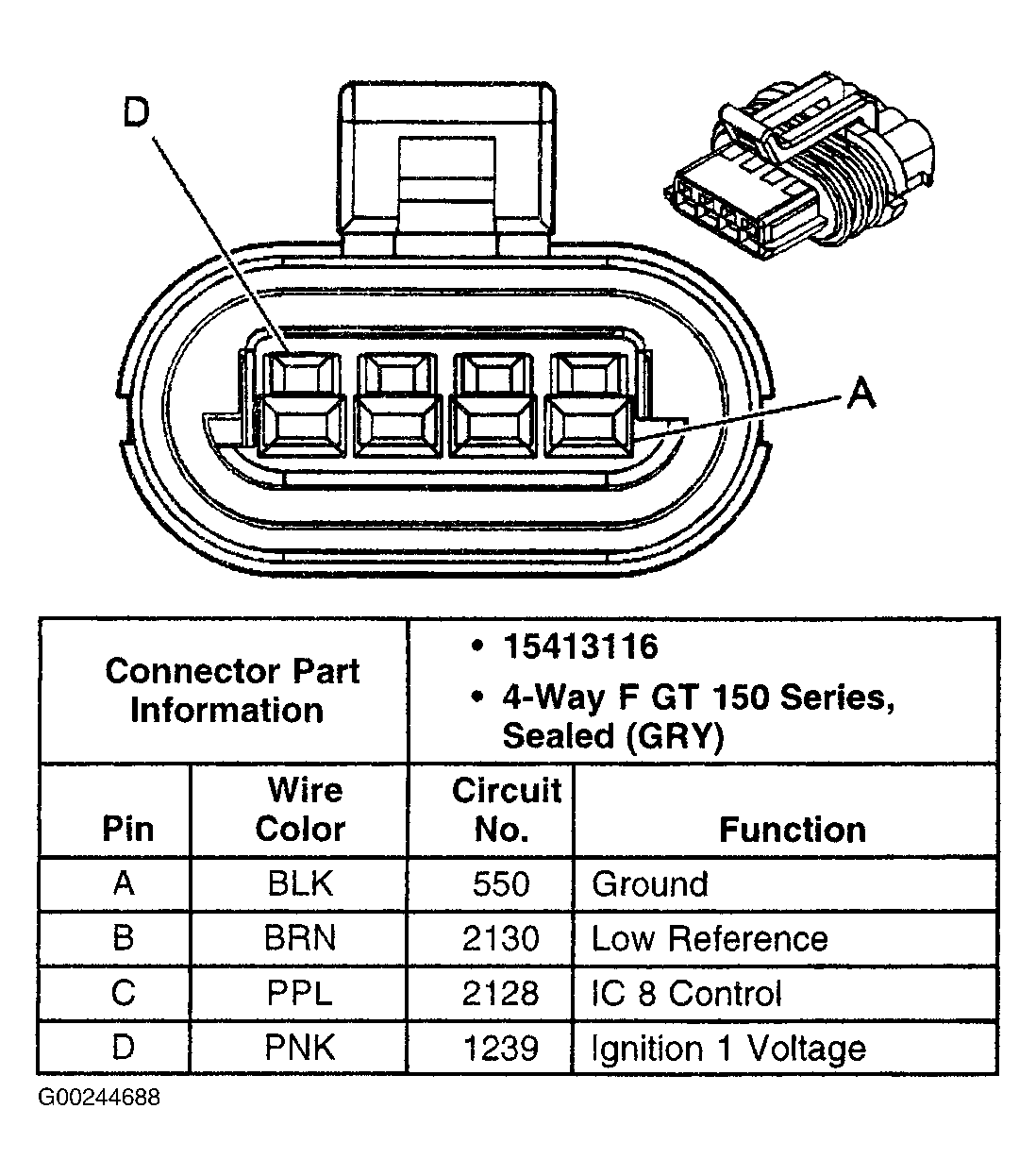

Fig 1: Ignition Coil 8 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
