MAP Sensor Connector End View

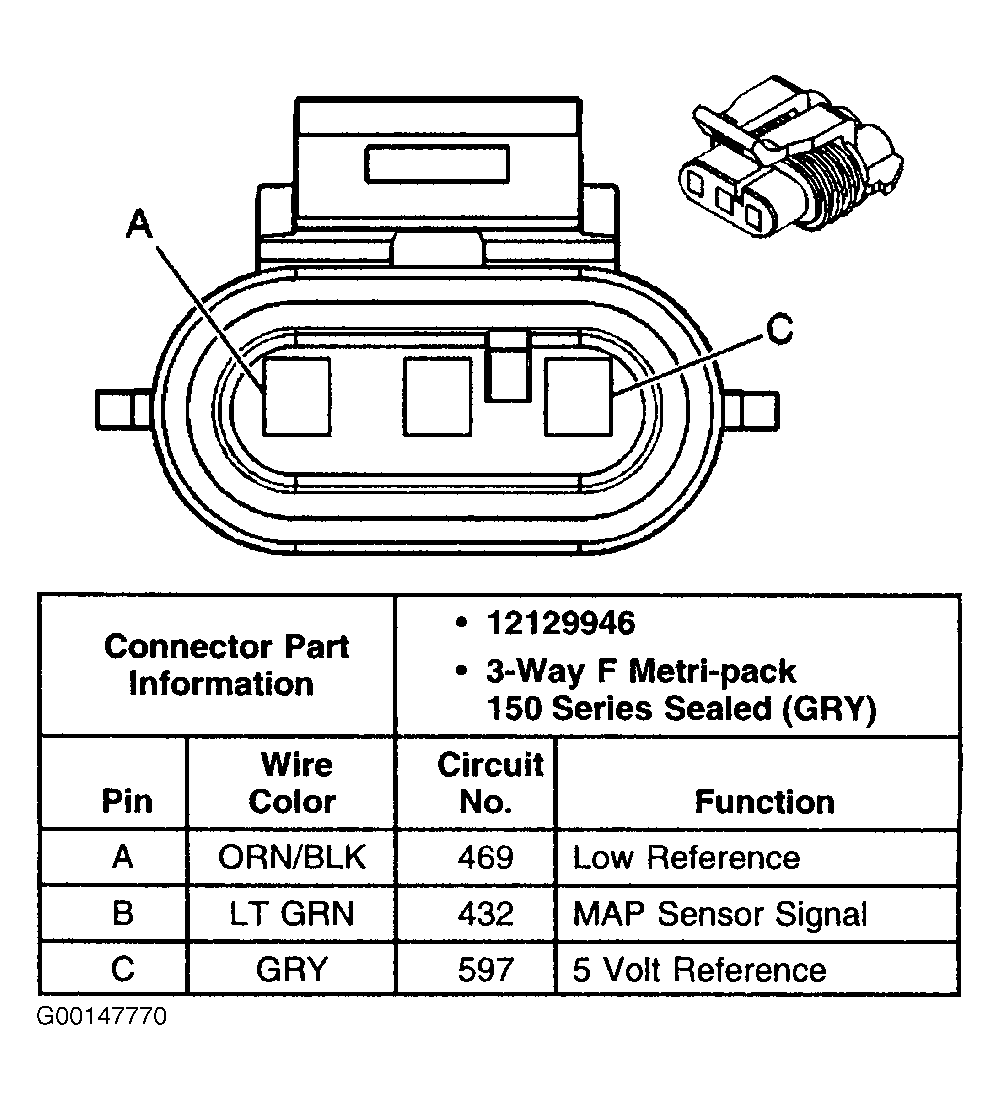

Fig 1: MAP Sensor Connector End View
G00147770Courtesy of GENERAL MOTORS CORP.
