Throttle Body Connector End View
Throttle Body Connector End View

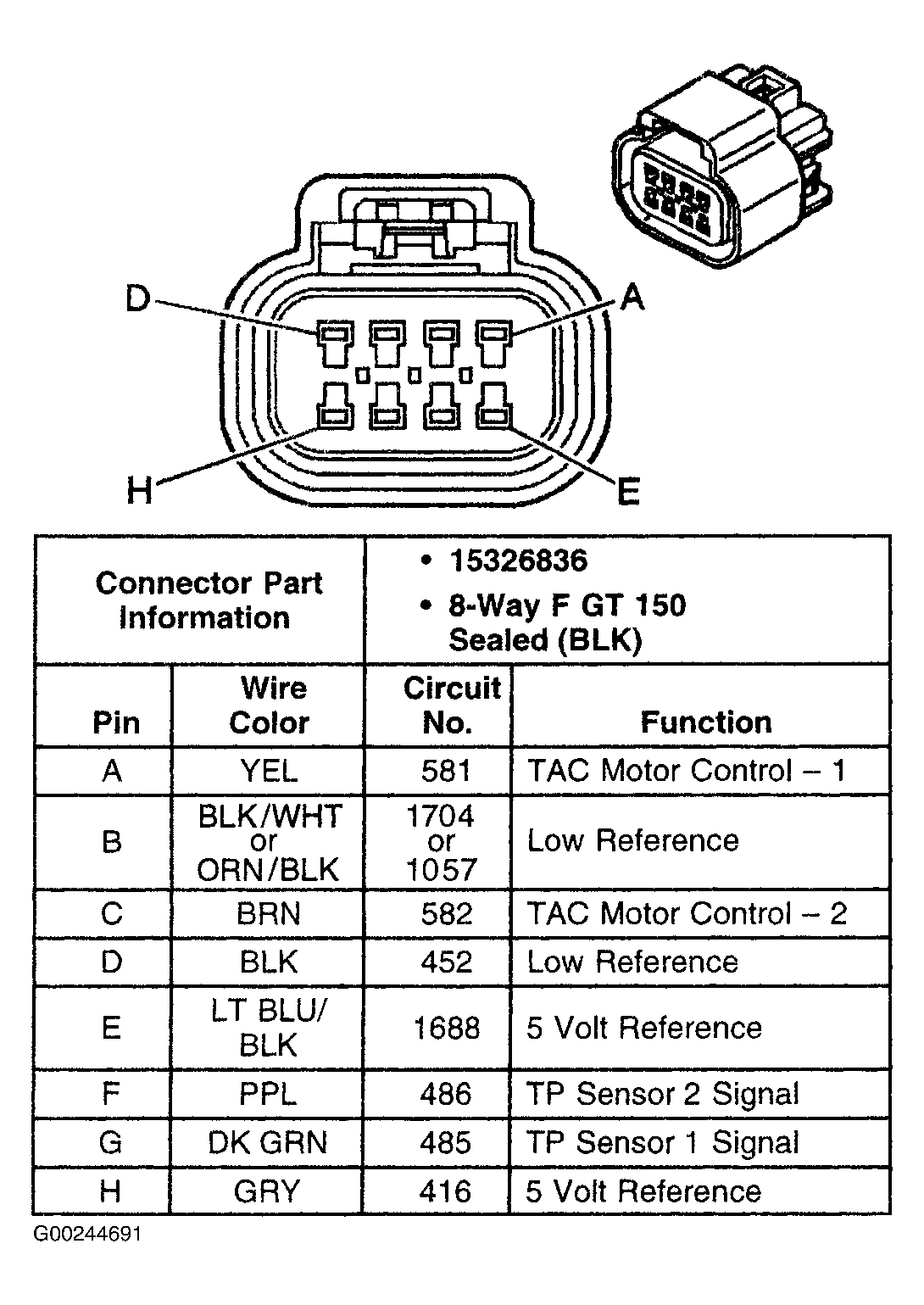

Fig 1: Throttle Body Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
