Horns Component Views
Horns Component Views

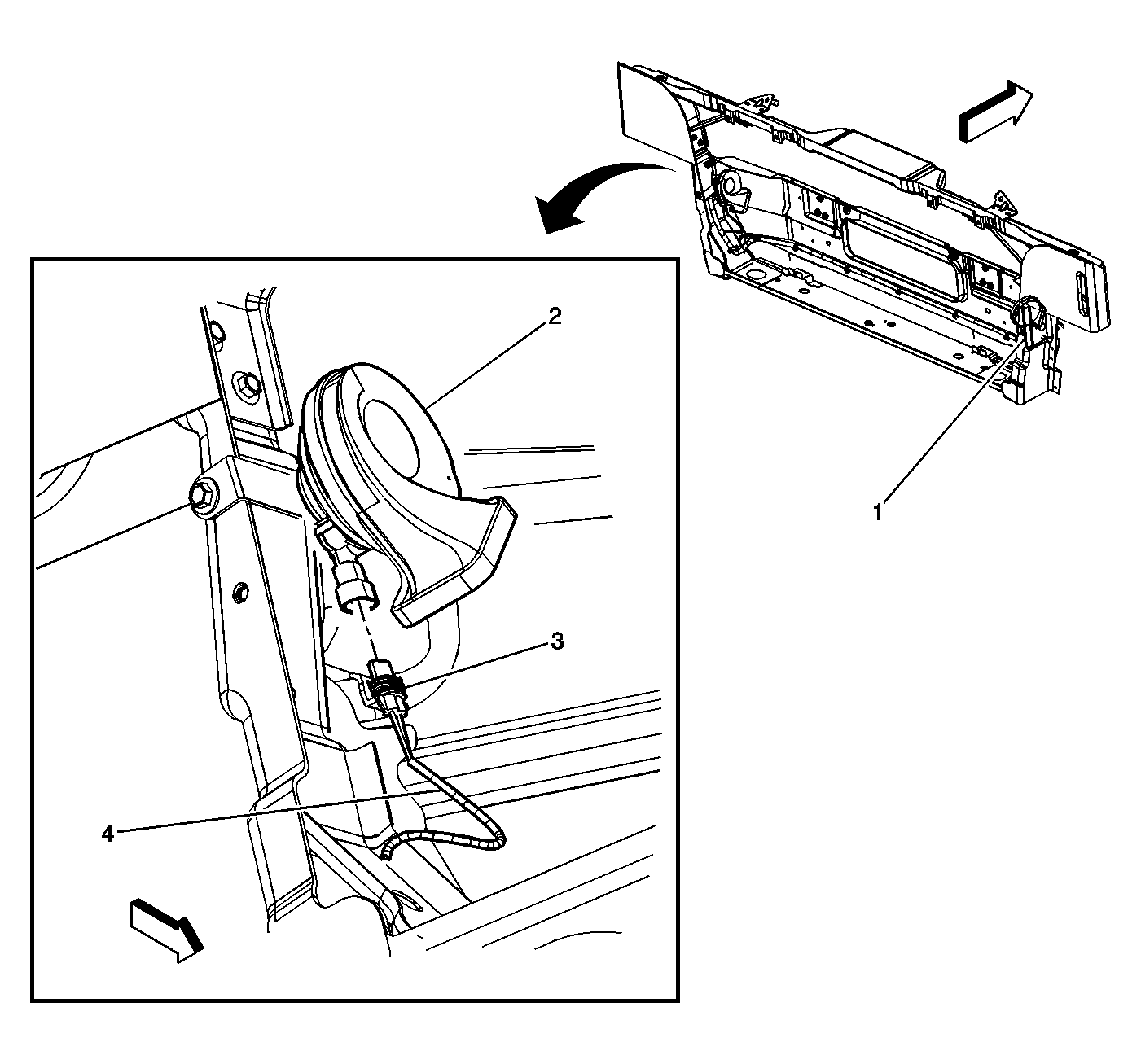

Fig 1: Horns - Low/High Note
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Horn - Low Note
2
Horn - High Note
3
Horn Connector - High Note
4
Forward Lamp Harness

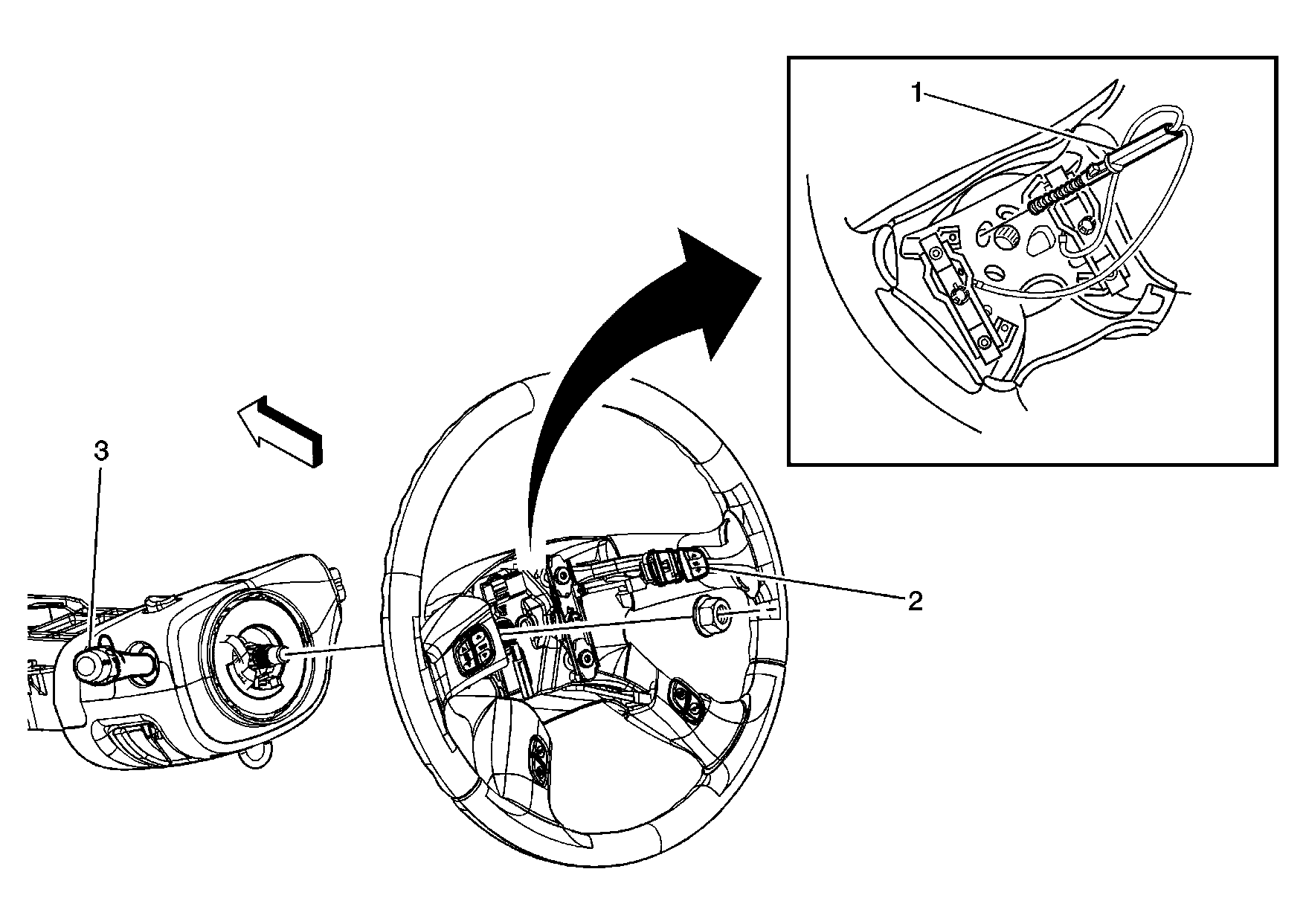

Fig 2: Horn Switch
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Horn Switch
2
Steering Wheel Controls
3
Turn Signal/Multifunction Switch
