Throttle Body: Removal
- Disconnect negative battery cable. Partially drain cooling system to allow the hoses at throttle body to be removed. Remove air intake duct.

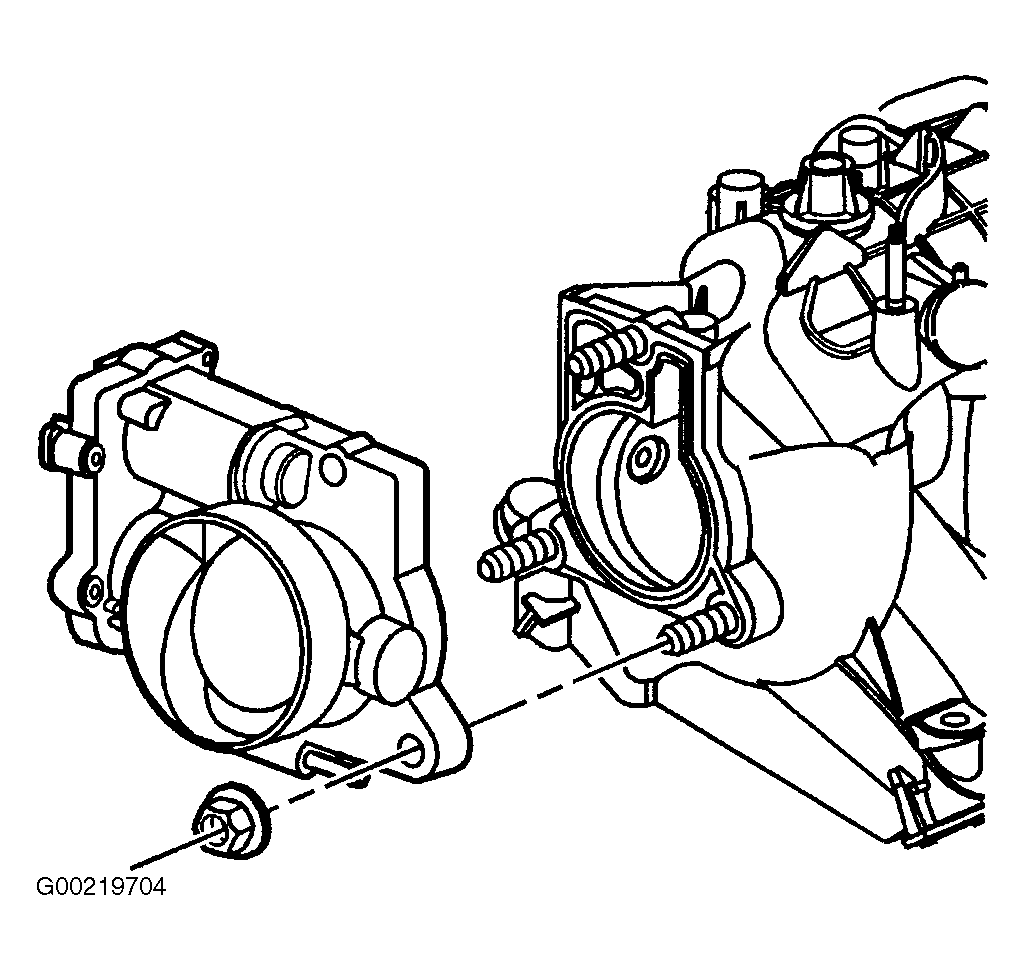

- Disconnect throttle actuator motor harness connector. Disconnect coolant hoses from throttle body. Remove throttle body mounting bolts. Remove throttle body and gasket. See Fig 1.
- Discard throttle body gasket. Inspect crankcase ventilation hose and tube. Replace any damaged components.
