Throttle Position Sensor: Installation
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

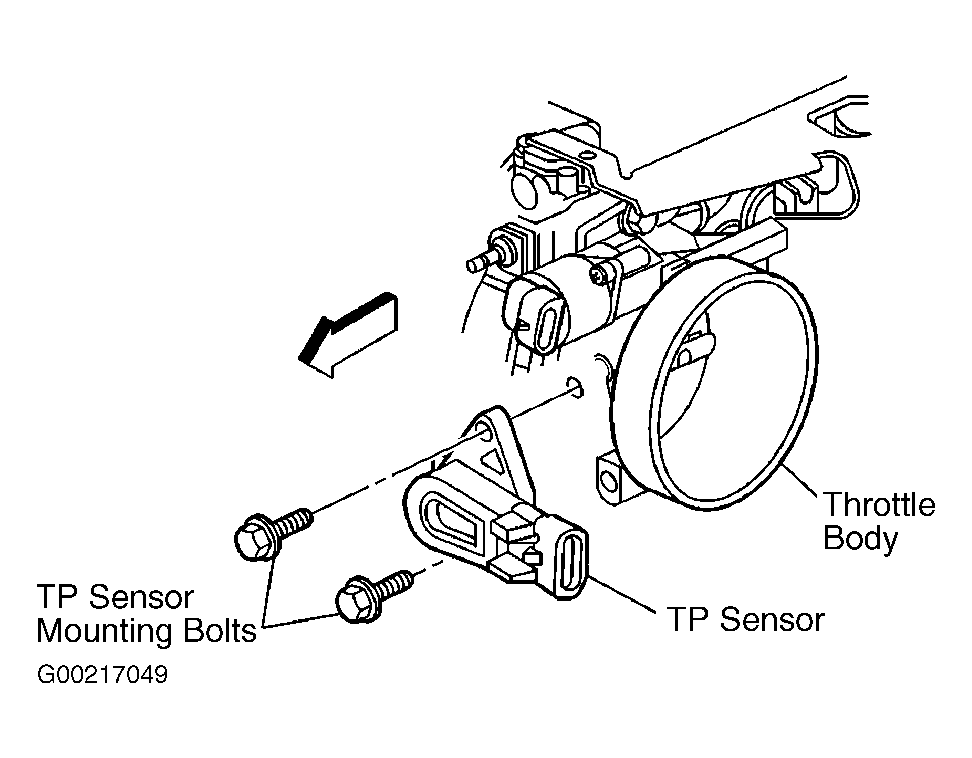

Install a NEW "O" ring on the TP sensor. Install the TP sensor on to the throttle body. See Fig 1 . Tight TP sensor bolts to specification. See TORQUE SPECIFICATIONS . Install throttle body. Reconnect negative battery cable. Install the rear seat cushion.
