Removal & Installation (3.5L)
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue and 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

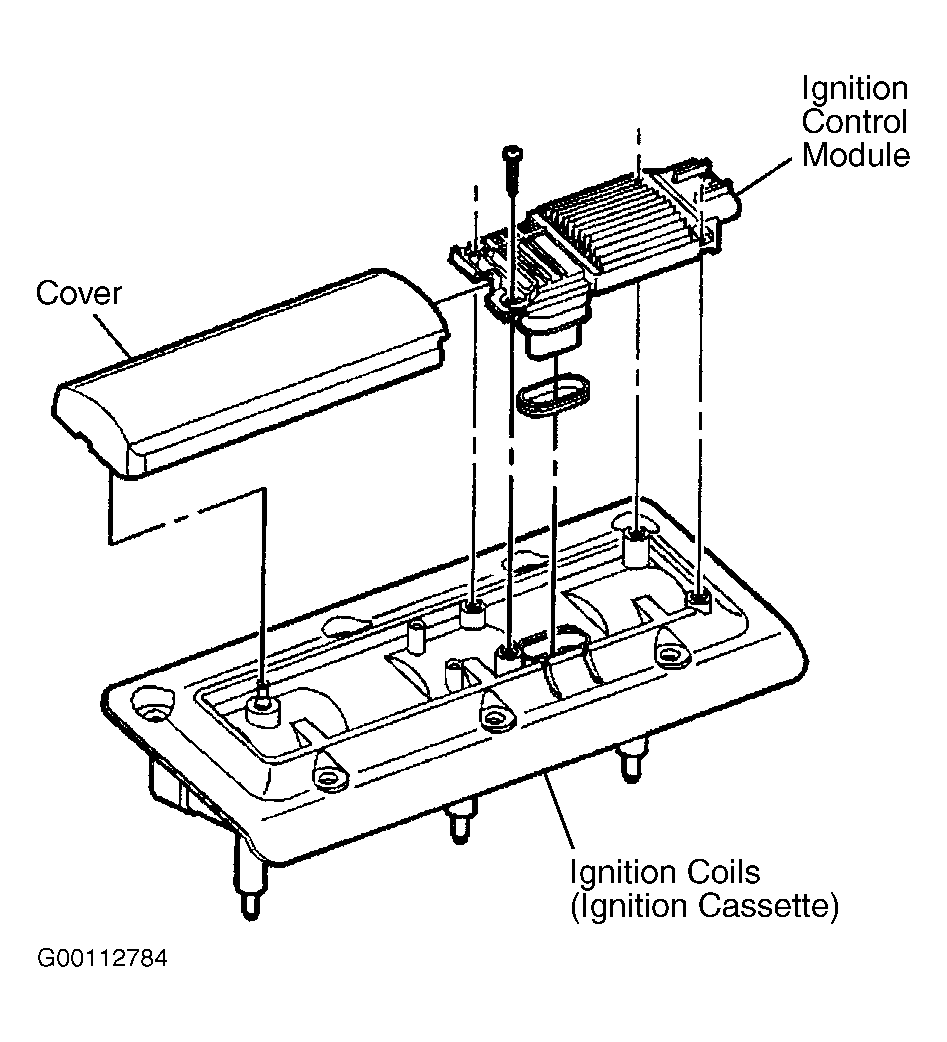

Turn ignition off. Disconnect the electrical connector from the Ignition Control Module (ICM). See Figure. Remove the cover from the ignition coils. Remove the screws retaining the ICM. Remove the ICM. To install, reverse removal procedure.
