Connector Identification

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

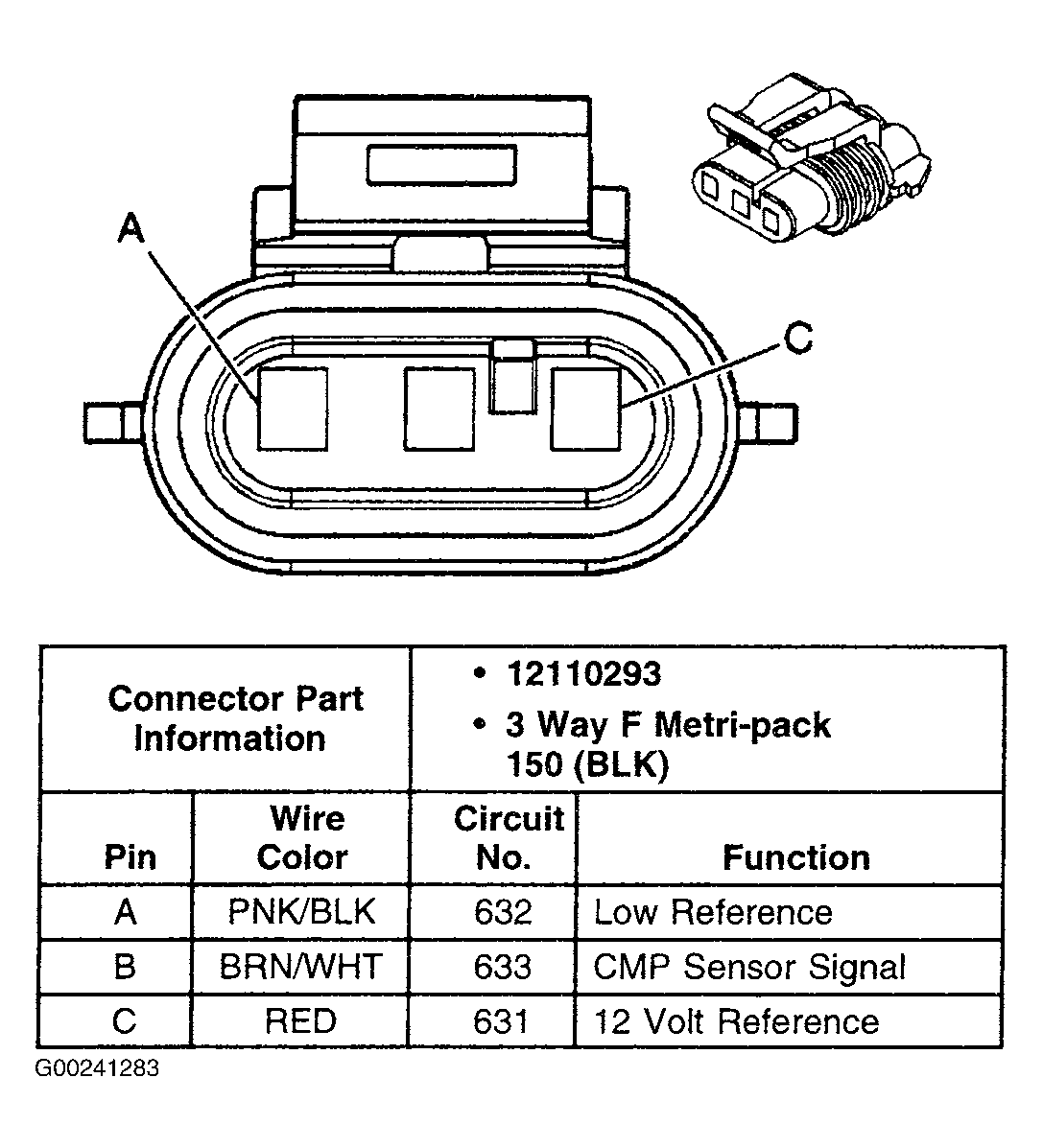

Fig 1: Identifying Camshaft Position Sensor Connector Terminals

G00241283

Courtesy of GENERAL MOTORS CORP.

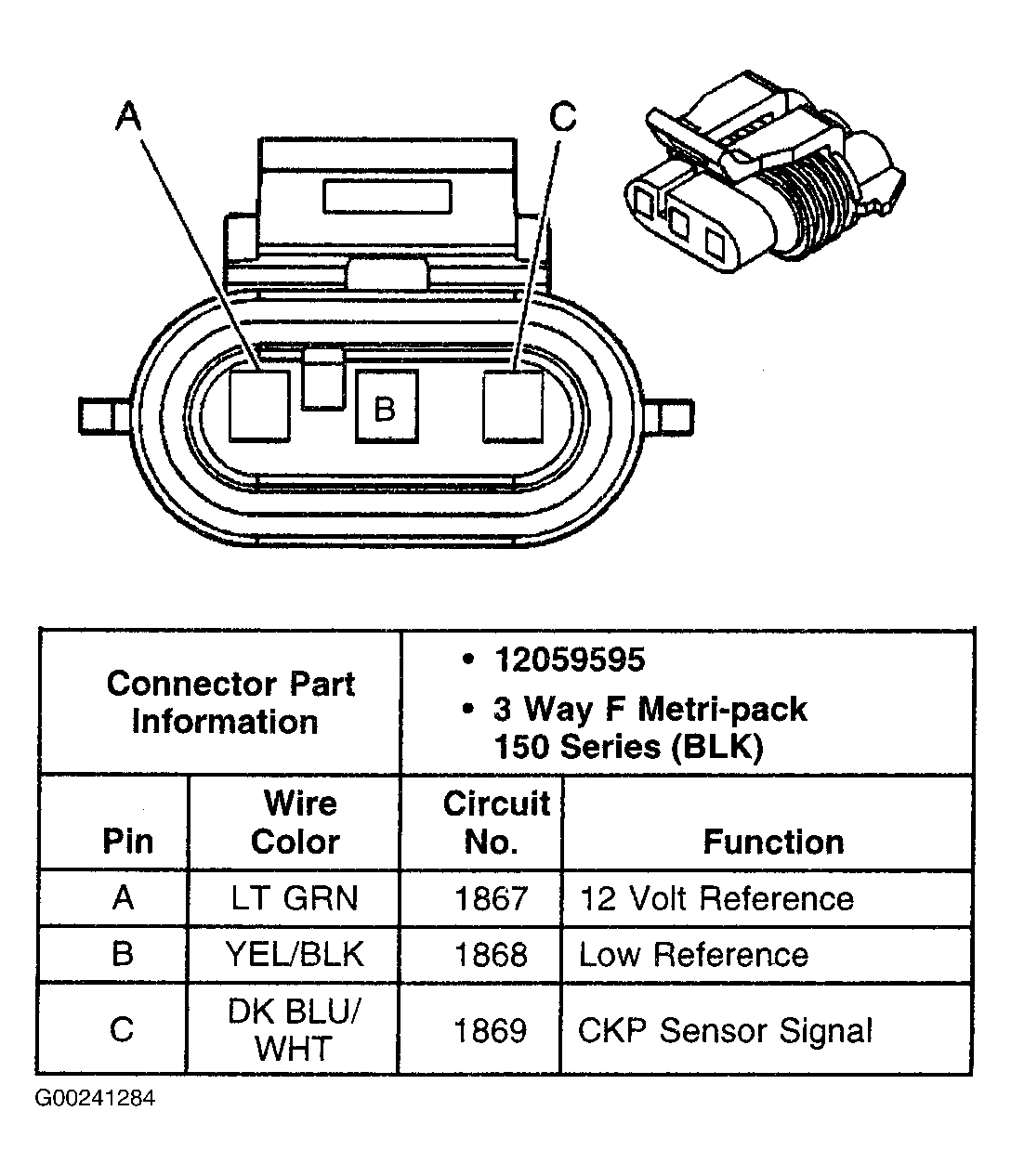

Fig 2: Identifying Crankshaft Position Sensor Connector Terminals

G00241284

Courtesy of GENERAL MOTORS CORP.

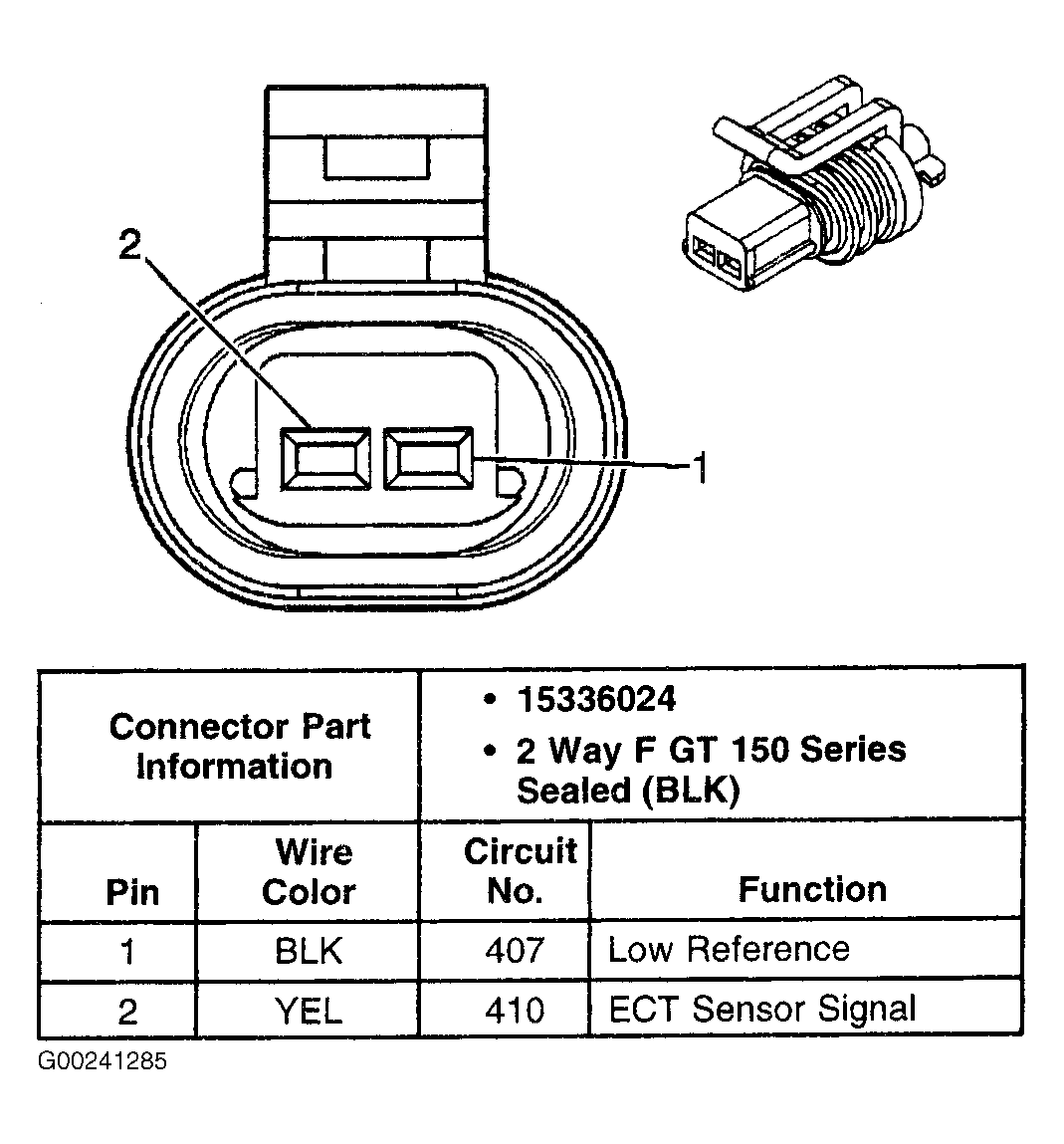

Fig 3: Identifying Engine Coolant Temperature Sensor Connector Terminals

G00241285

Courtesy of GENERAL MOTORS CORP.

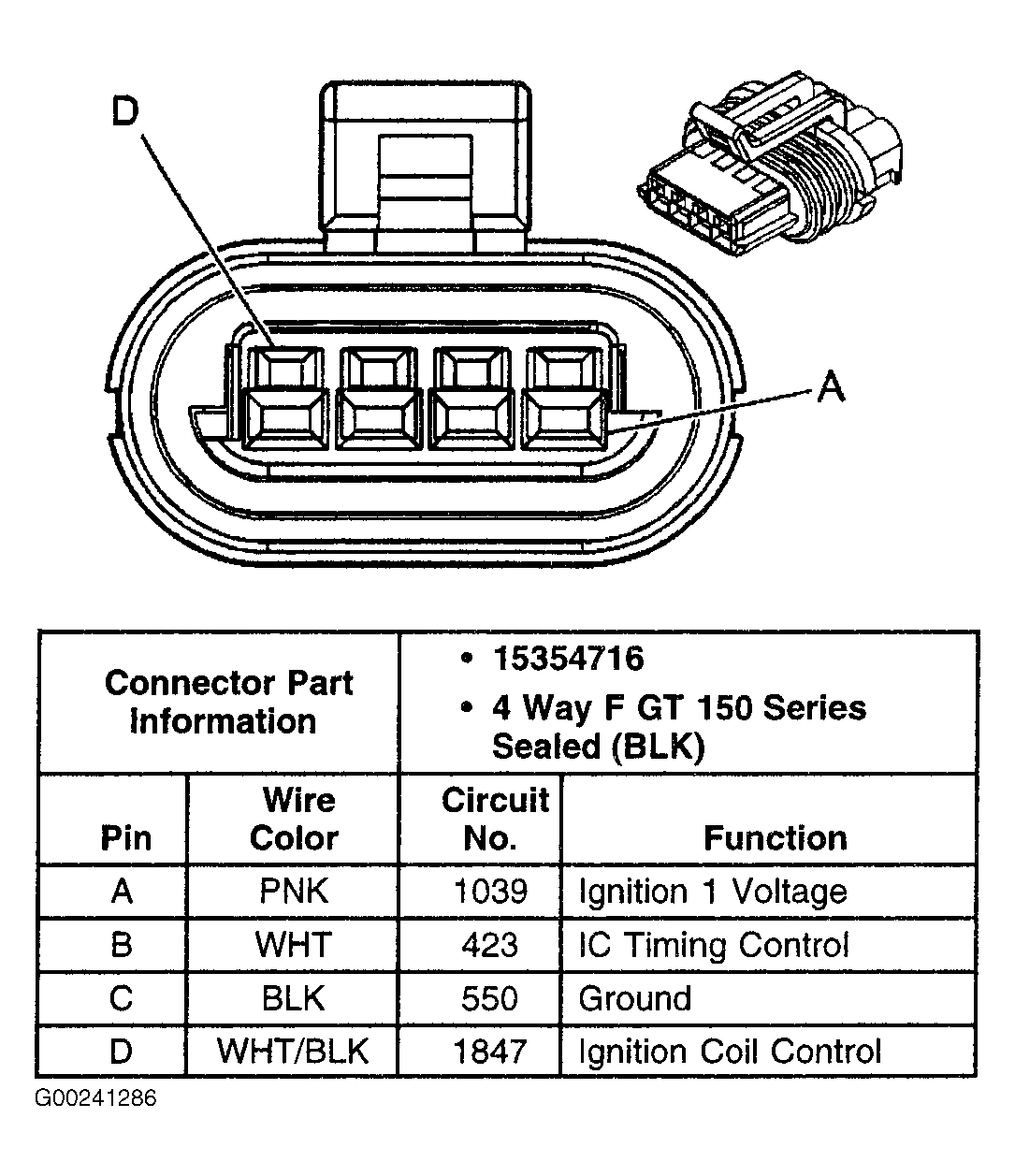

Fig 4: Identifying Ignition Control Module Connector Terminals

G00241286

Courtesy of GENERAL MOTORS CORP.

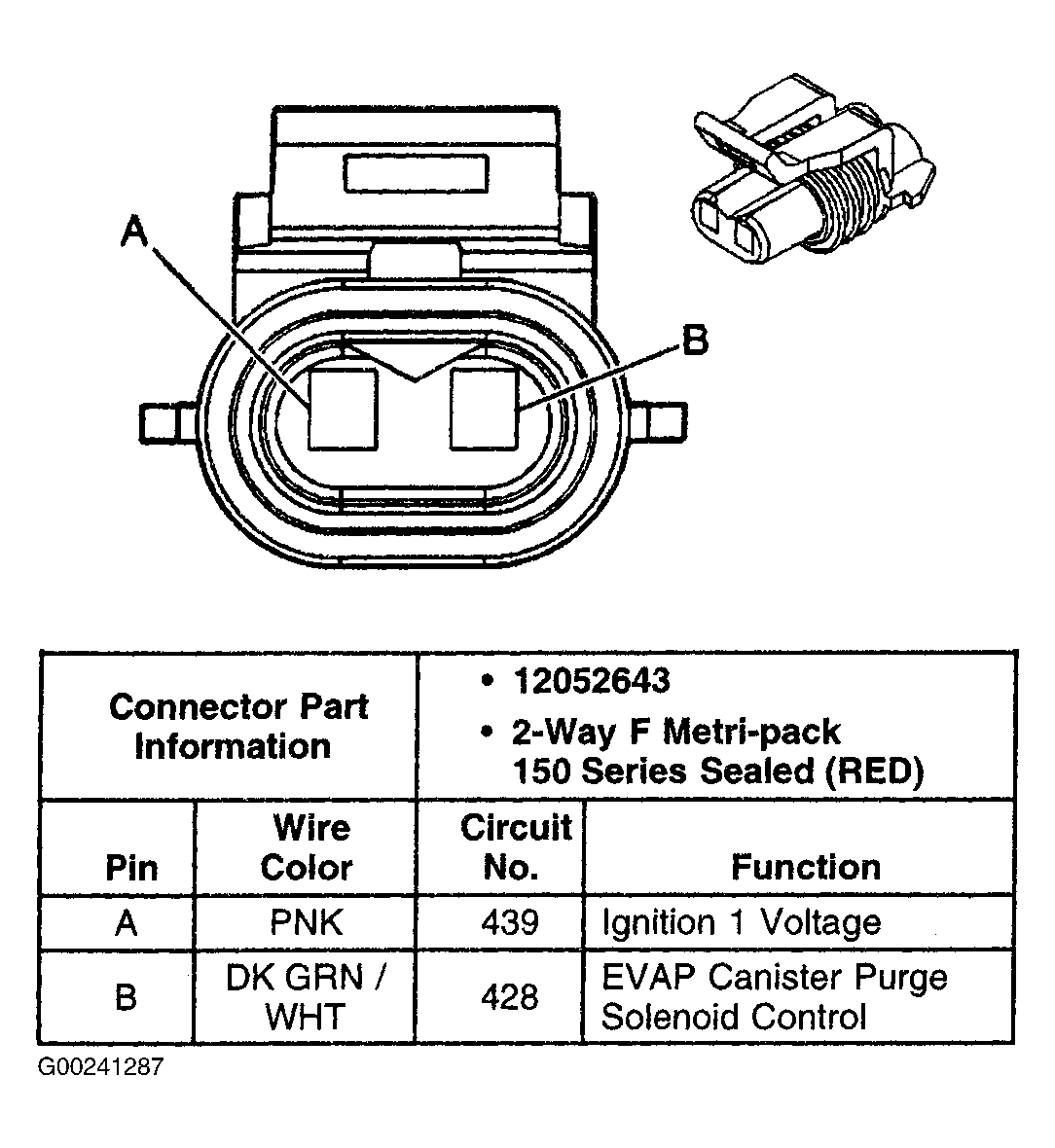

Fig 5: Identifying EVAP Canister Purge Solenoid Connector Terminals

G00241287

Courtesy of GENERAL MOTORS CORP.

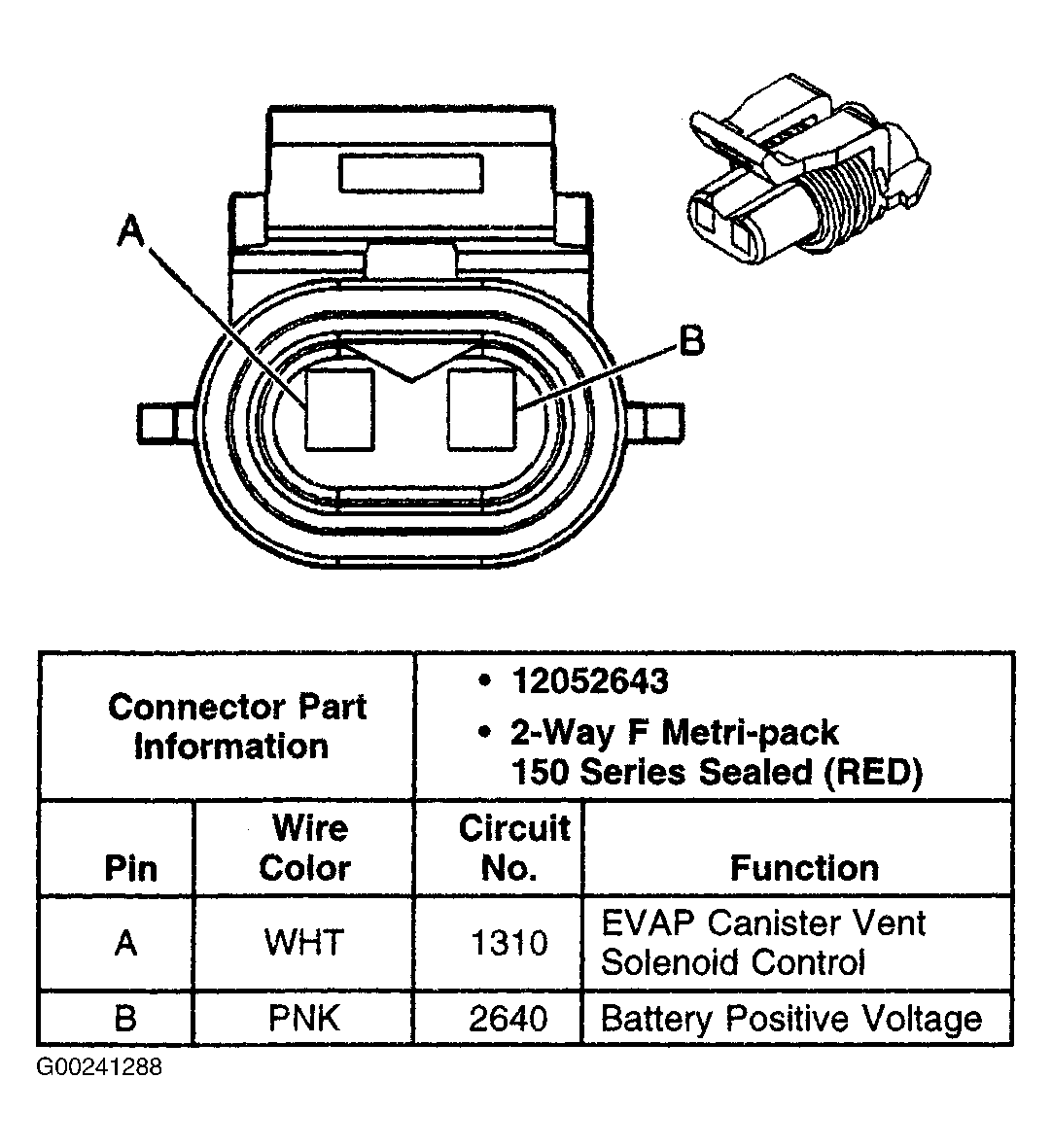

Fig 6: Identifying EVAP Canister Vent Solenoid Connector Terminals

G00241288

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00147756

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Fuel Injector Assembly Connector Terminals

G00147755

Courtesy of GENERAL MOTORS CORP.

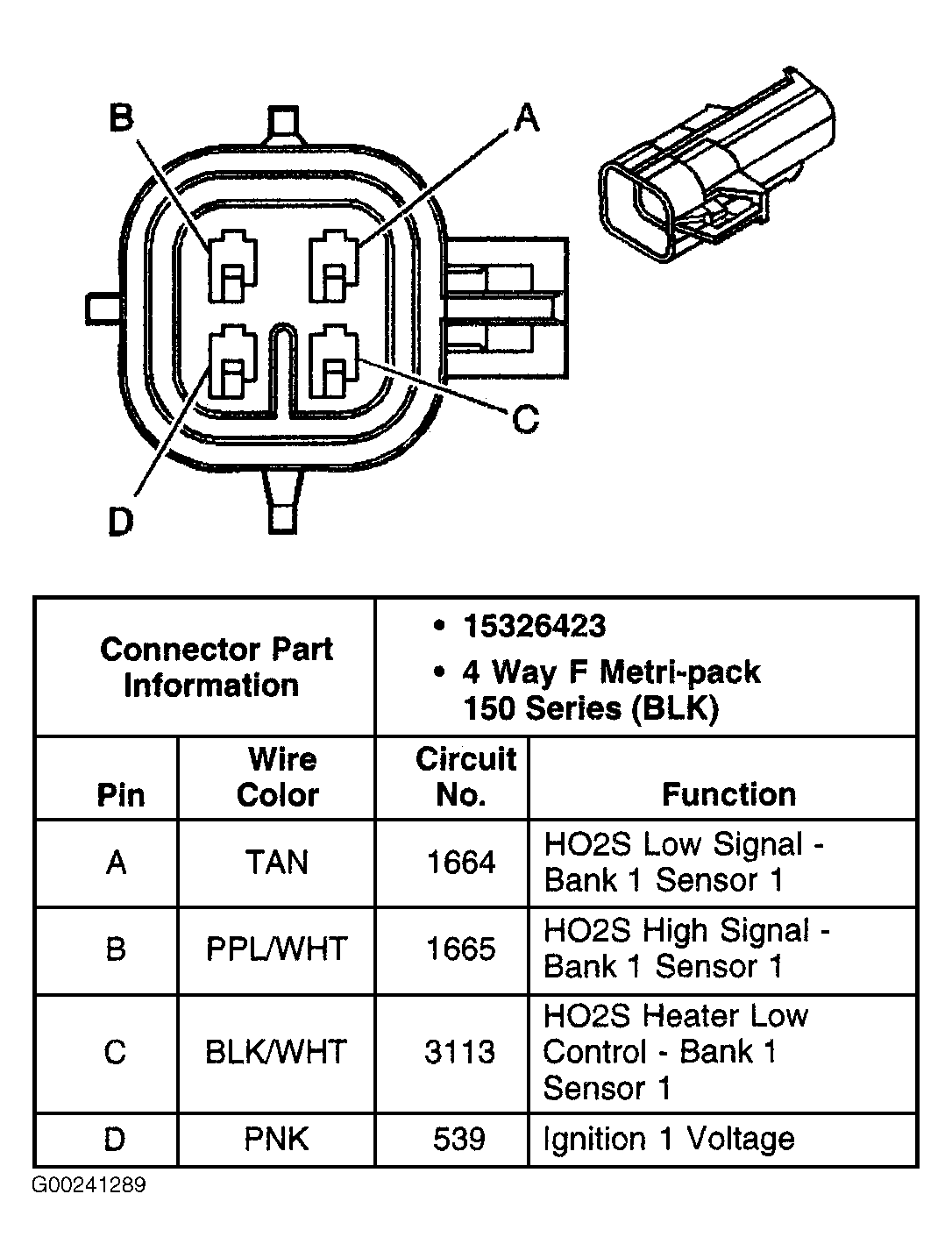

Fig 9: Identifying HO2S Bank 1 Sensor 1 Connector Terminals

G00241289

Courtesy of GENERAL MOTORS CORP.

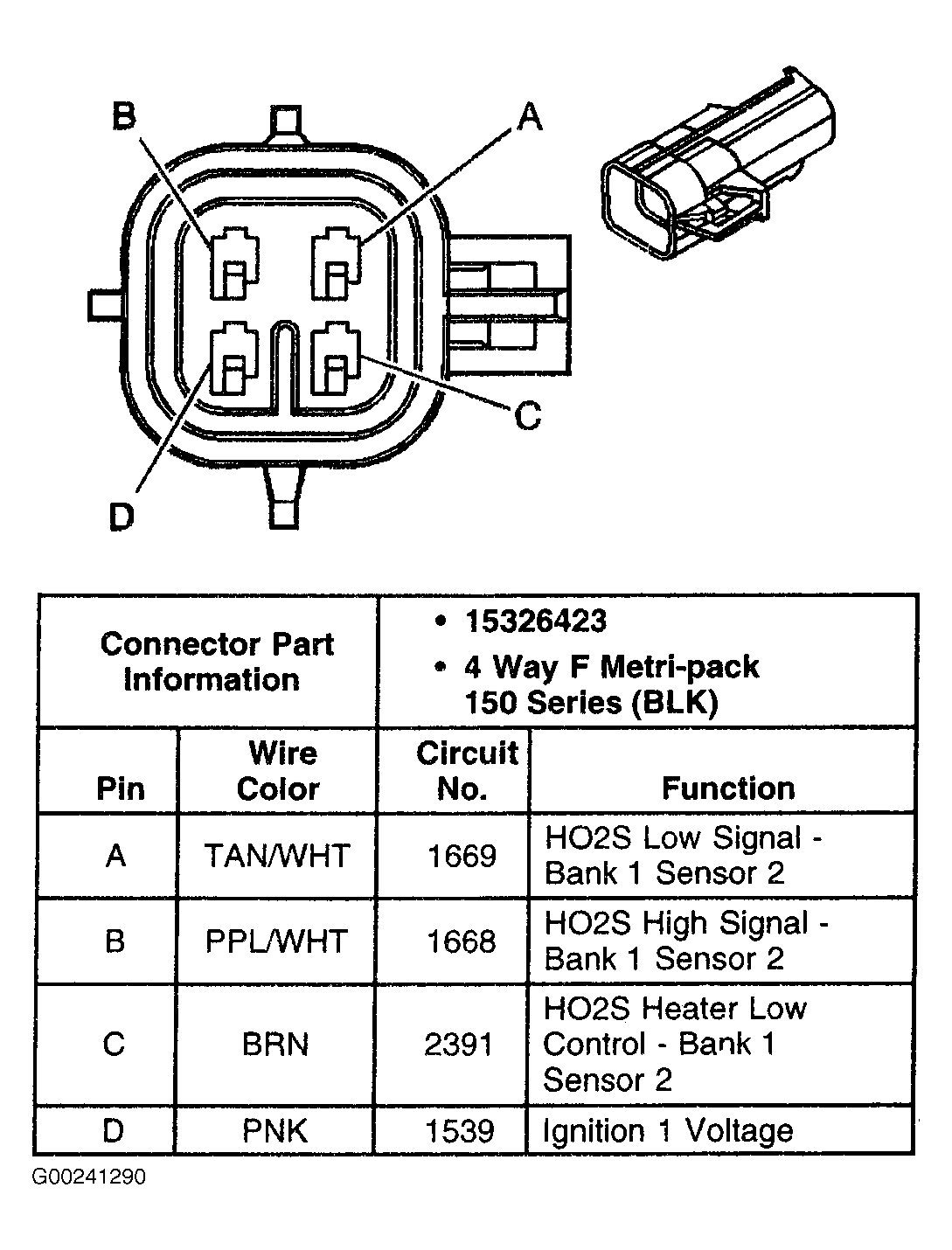

Fig 10: Identifying HO2S Bank 1 Sensor 2 Connector Terminals

G00241290

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying HO2S Bank 2 Sensor 1 Connector Terminals

G00241291

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying HO2S Bank 2 Sensor 2 Connector Terminals

G00241292

Courtesy of GENERAL MOTORS CORP.

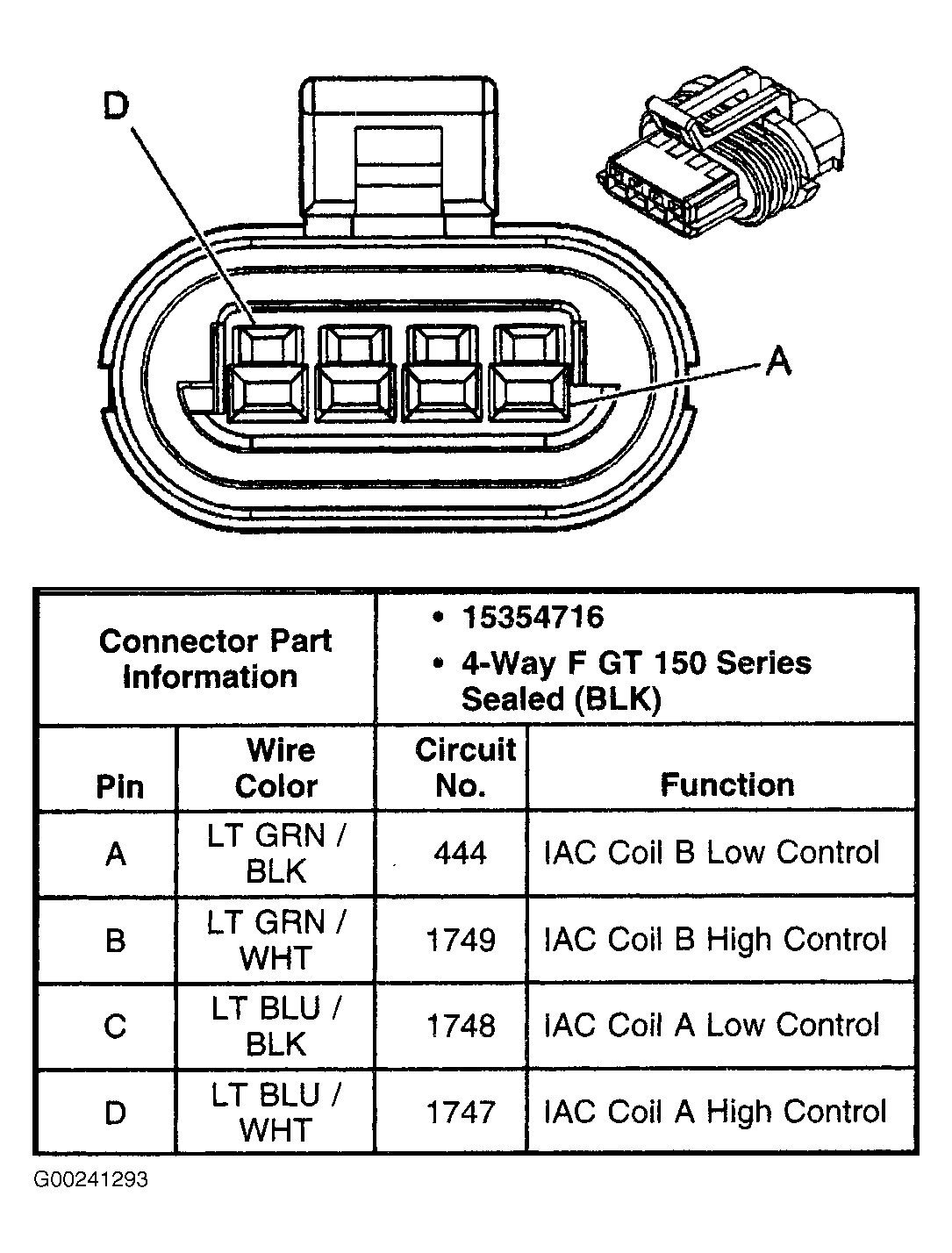

Fig 13: Identifying Idle Air Control Valve Connector Terminals

G00241293

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Intake Air Temperature Sensor Connector Terminals

G00147765

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Ignition Coil Connector Terminals

G00147766

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Knock Sensor Connector Terminals

G00147768

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying MAP Sensor Connector Terminals

G00147770

Courtesy of GENERAL MOTORS CORP.

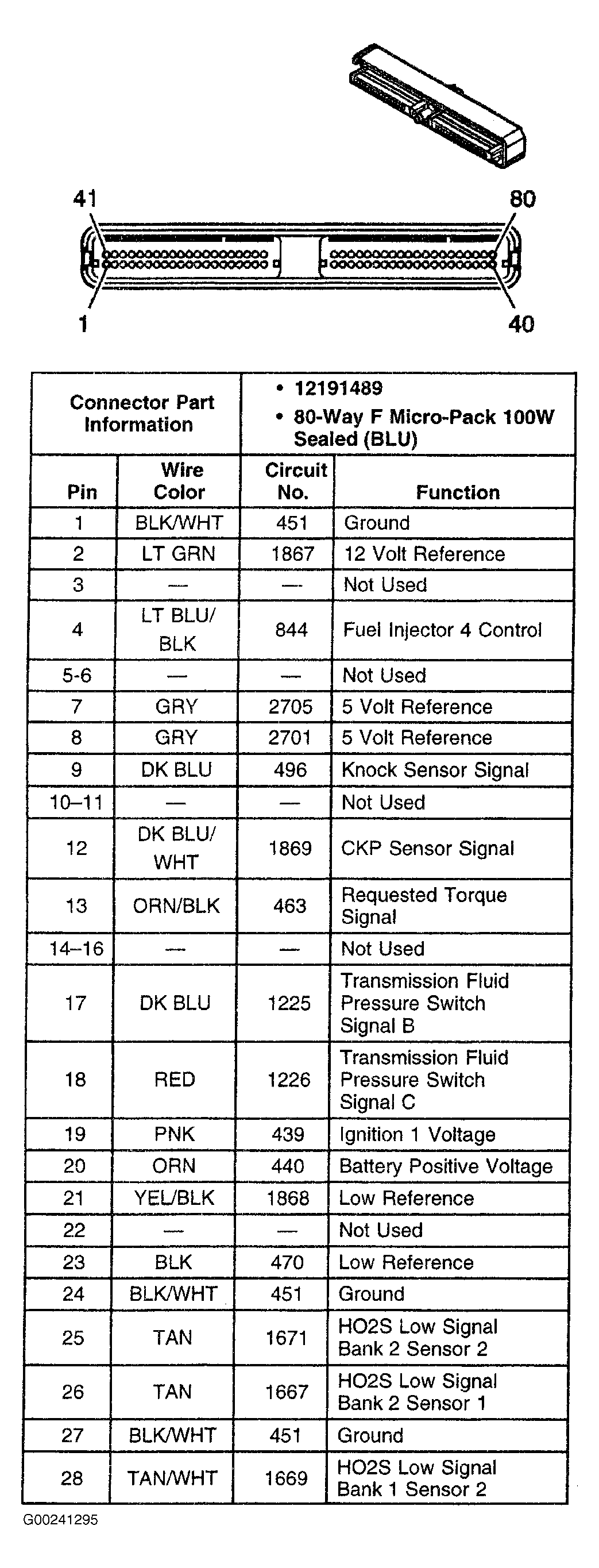

Fig 18: Identifying PCM C1 Connector Terminals (1 Of 3)

G00241295

Courtesy of GENERAL MOTORS CORP.

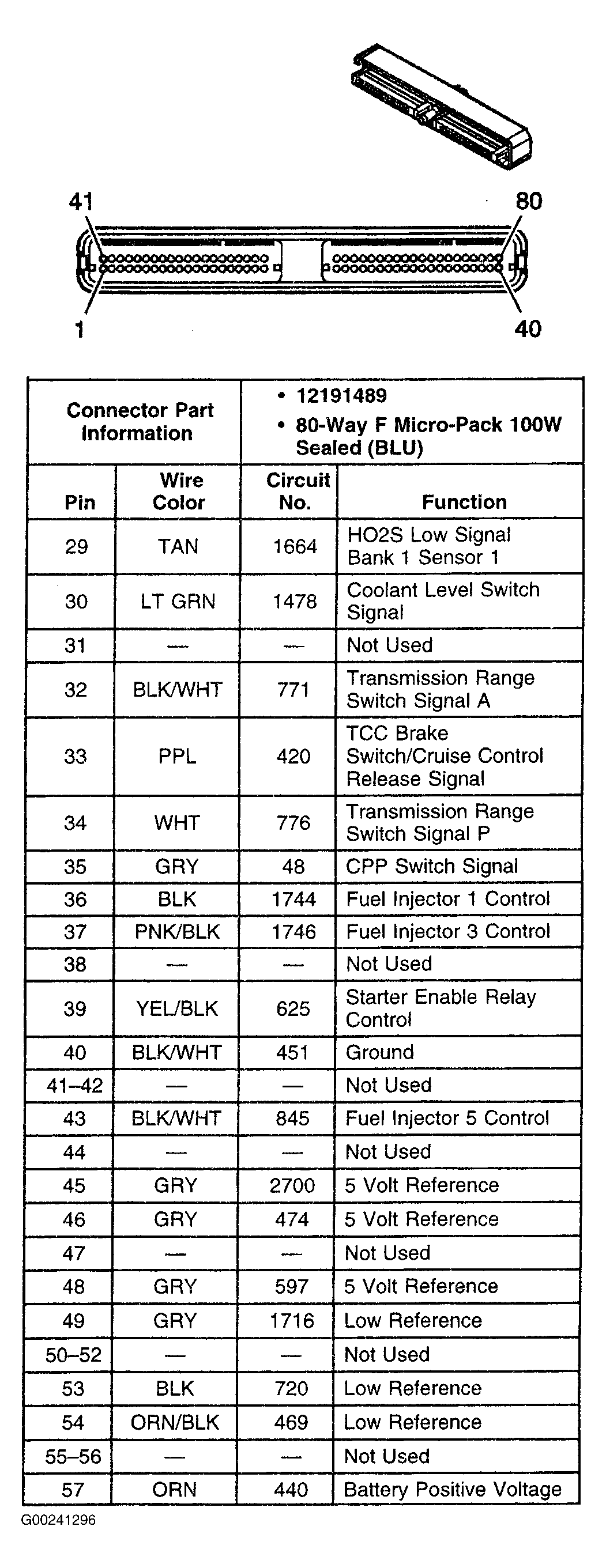

Fig 19: Identifying PCM C1 Connector Terminals (2 Of 3)

G00241296

Courtesy of GENERAL MOTORS CORP.

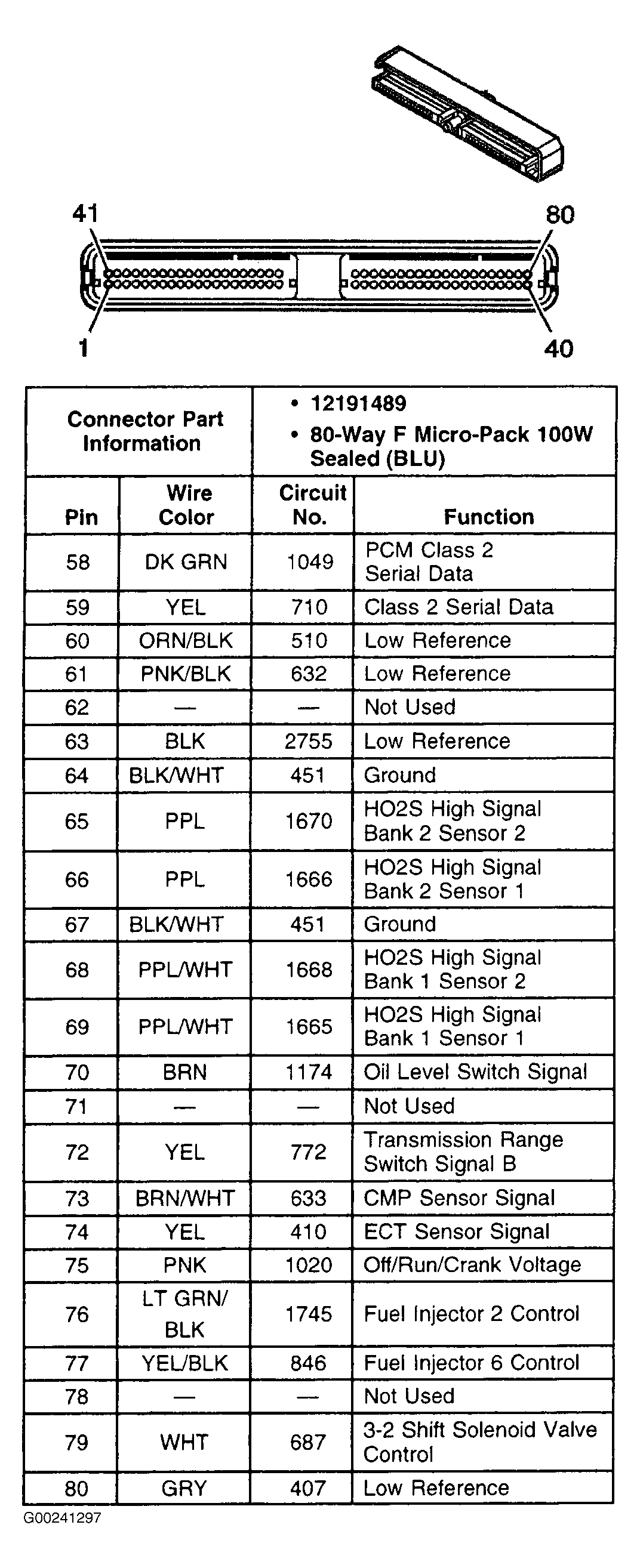

Fig 20: Identifying PCM C1 Connector Terminals (3 Of 3)

G00241297

Courtesy of GENERAL MOTORS CORP.

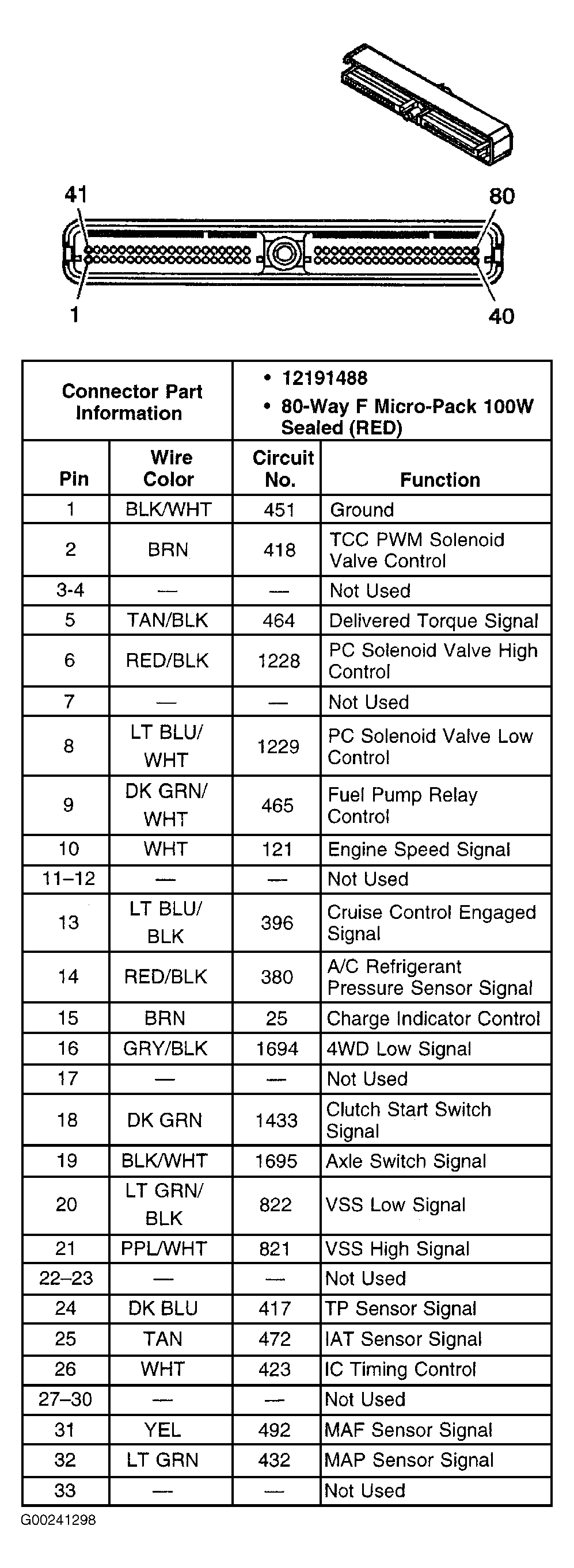

Fig 21: Identifying PCM C2 Connector Terminals (1 Of 3)

G00241298

Courtesy of GENERAL MOTORS CORP.

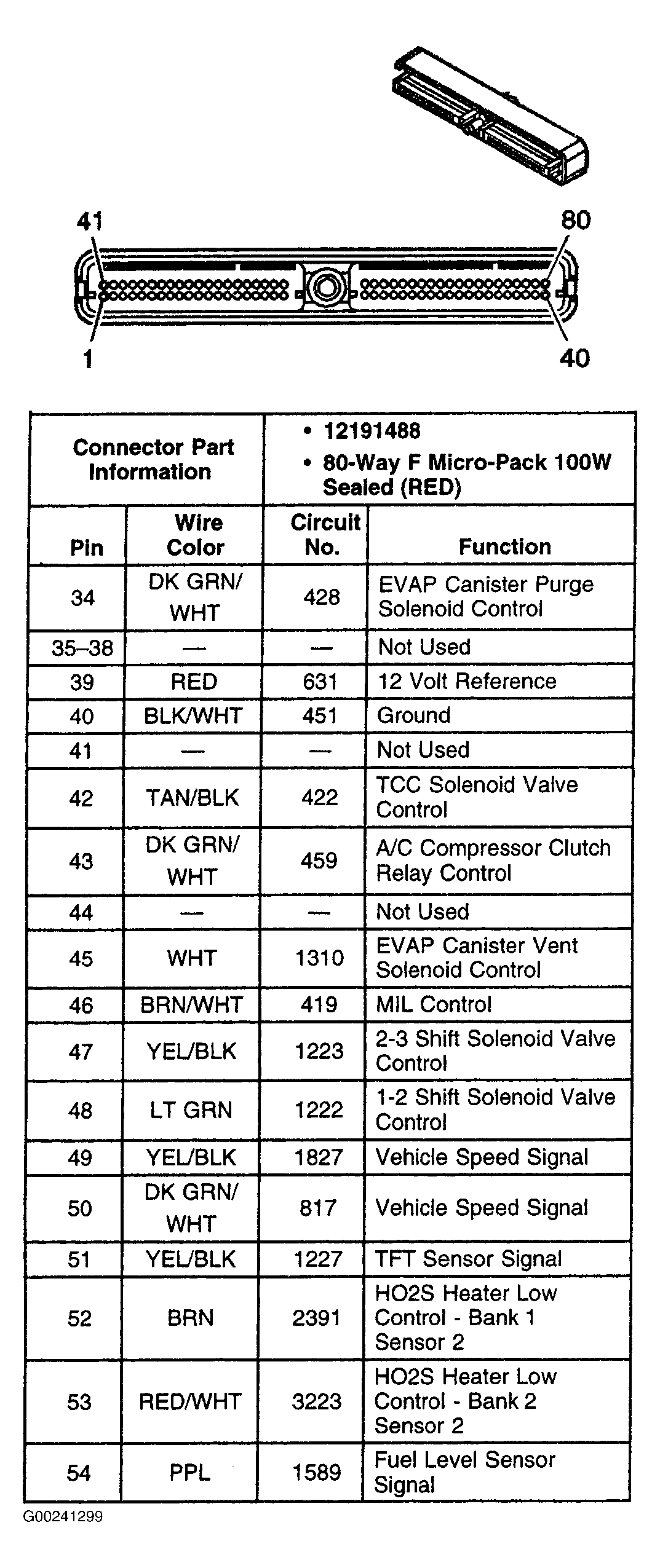

Fig 22: Identifying PCM C2 Connector Terminals (2 Of 3)

G00241299

Courtesy of GENERAL MOTORS CORP.

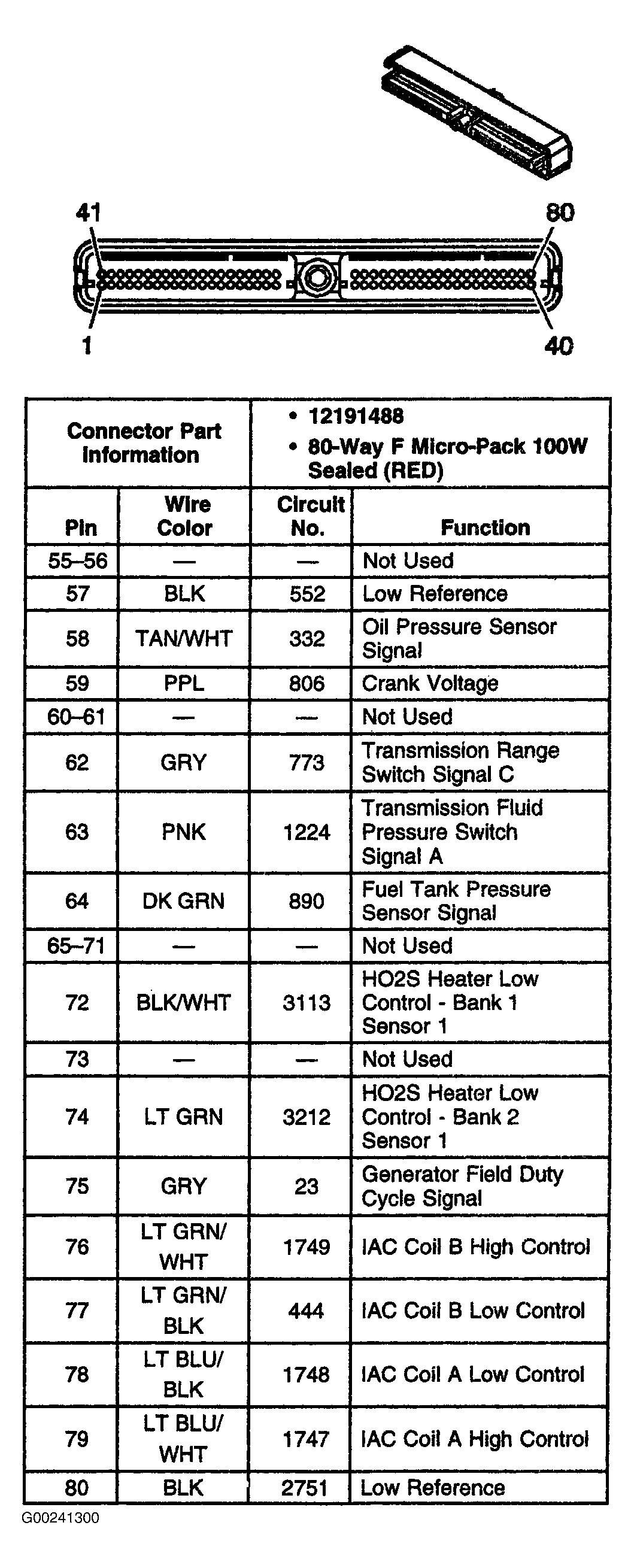

Fig 23: Identifying PCM C2 Connector Terminals (3 Of 3)

G00241300

Courtesy of GENERAL MOTORS CORP.

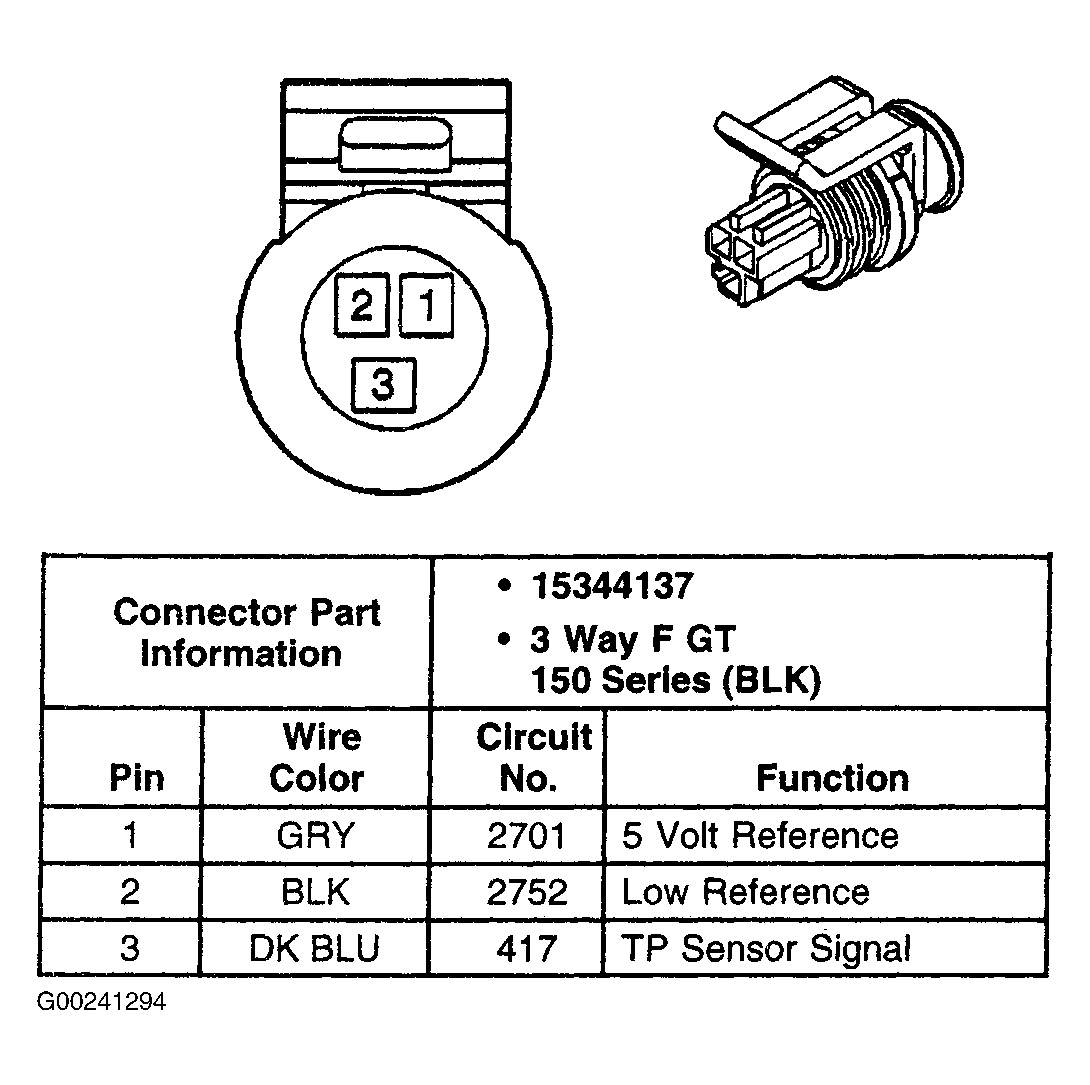

Fig 24: Identifying Throttle Position Sensor Connector Terminals

G00241294

Courtesy of GENERAL MOTORS CORP.
