Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

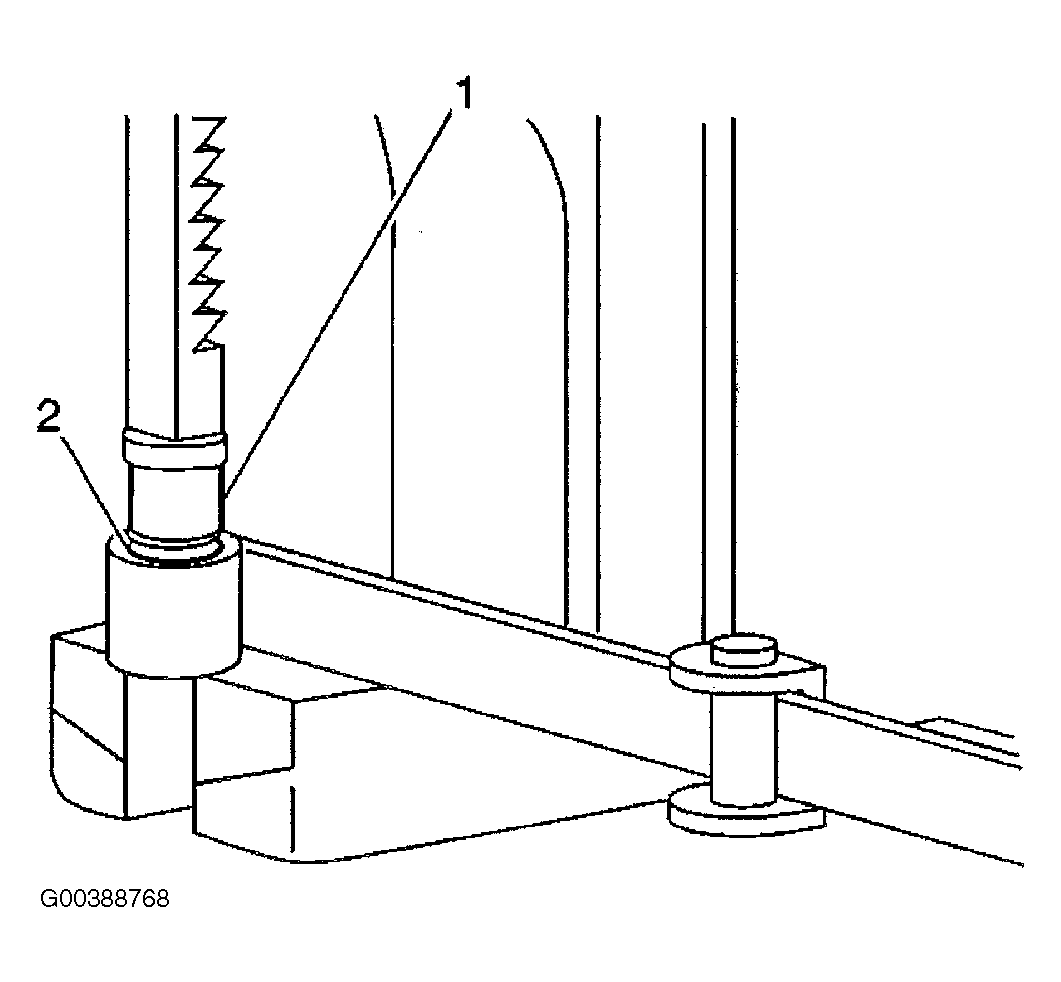

- Apply rubber lubricant to the bushing (1) and spring eye (2). See Fig 1.
- Install the bushing to the leaf spring.
- Place the leaf spring in a press.
- Press the bushing into the spring.
- Install the leaf spring assembly to the vehicle. Refer to Leaf Spring Replacement .
- Remove the safety stands.
- Lower the vehicle.
