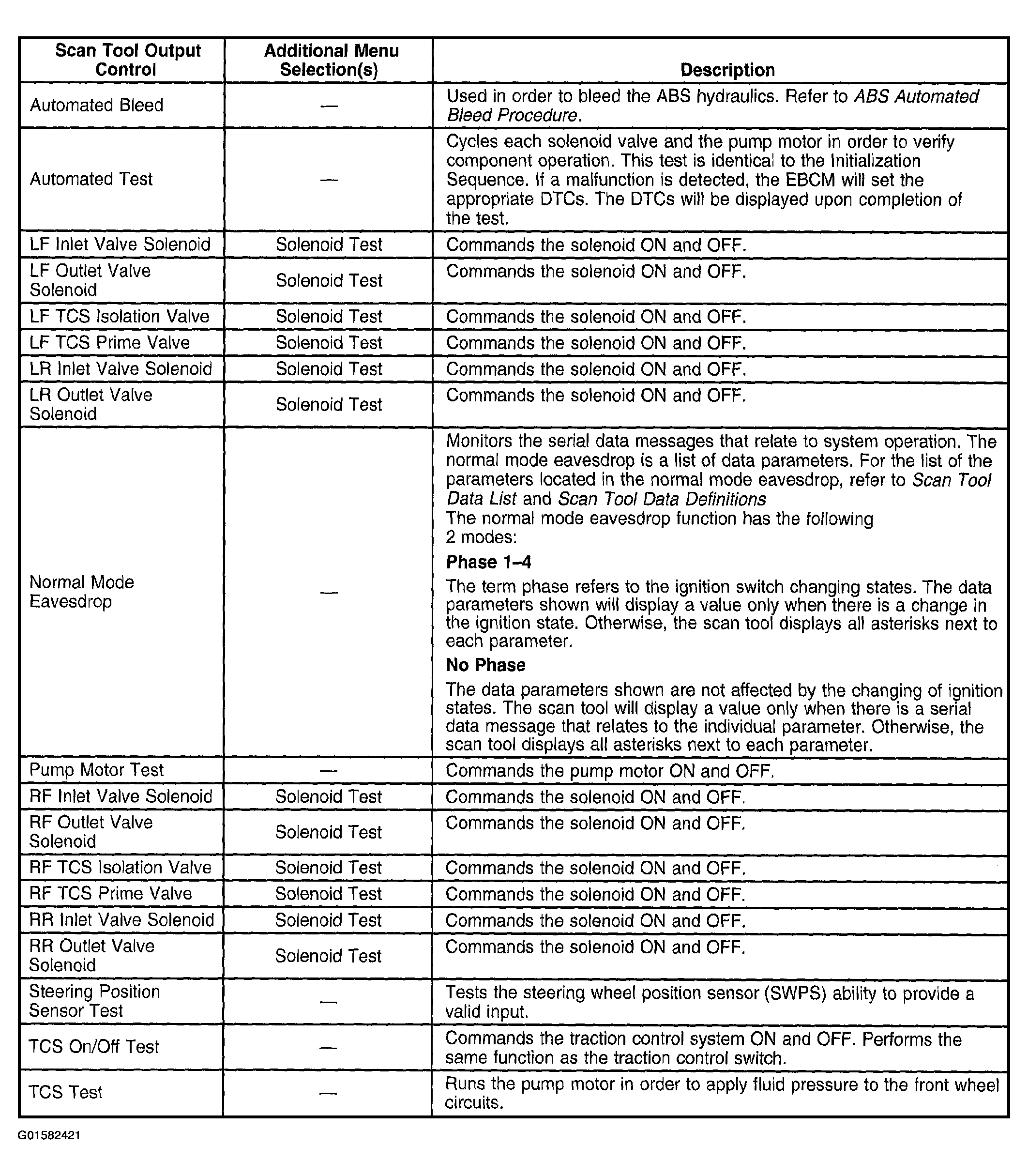

Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Electronic Brake Control Module (EBCM)

Courtesy of GENERAL MOTORS CORP.
