Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the ignition.
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.
  3. Disconnect the lateral accelerometer sensor electrical connector (2).
  4. Remove the 2 lateral accelerometer sensor mounting screws (3).
  5. Remove the lateral accelerometer sensor (1).

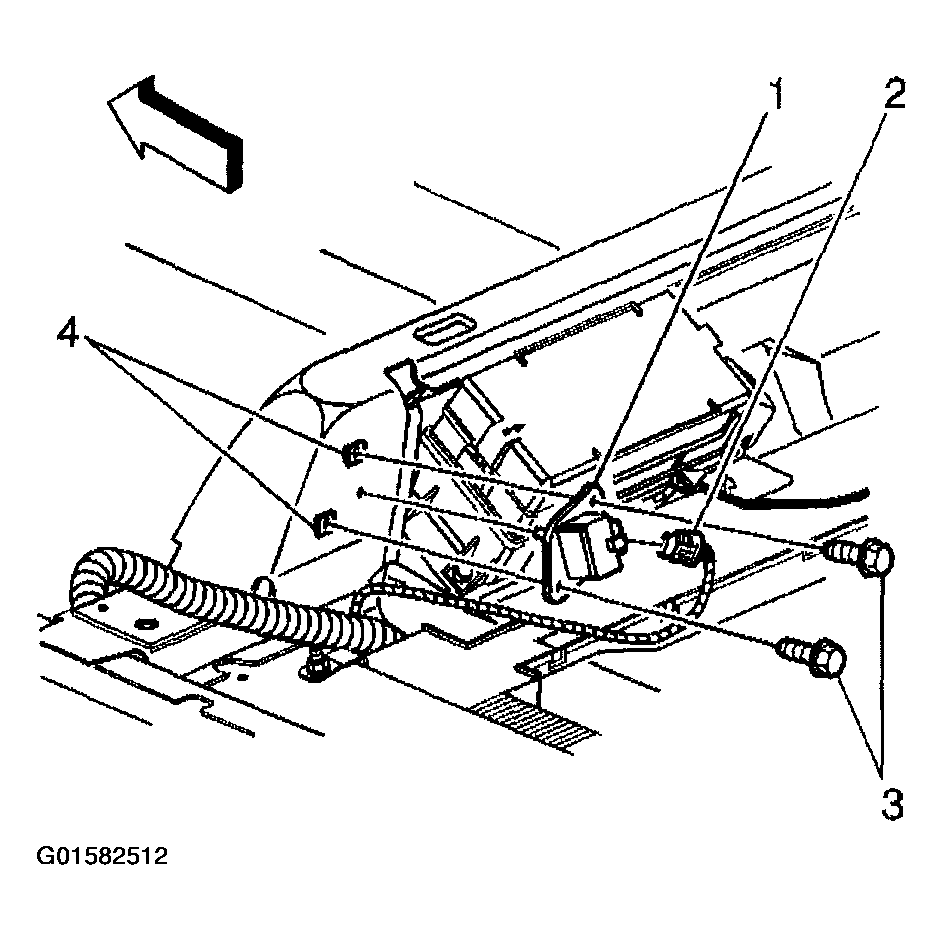

    Fig 1: Removing Lateral Accelerometer Sensor
    G01582512Courtesy of GENERAL MOTORS CORP.
