Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Instrument Panel Trim Plate Bezel. Refer to TRIM PLATE BEZEL REPLACEMENT -- IP CLUSTER .
  2. Disconnect the theft deterrent module electrical connector (1).
  3. Release the retainer clip (2) securing the theft deterrent module (3).

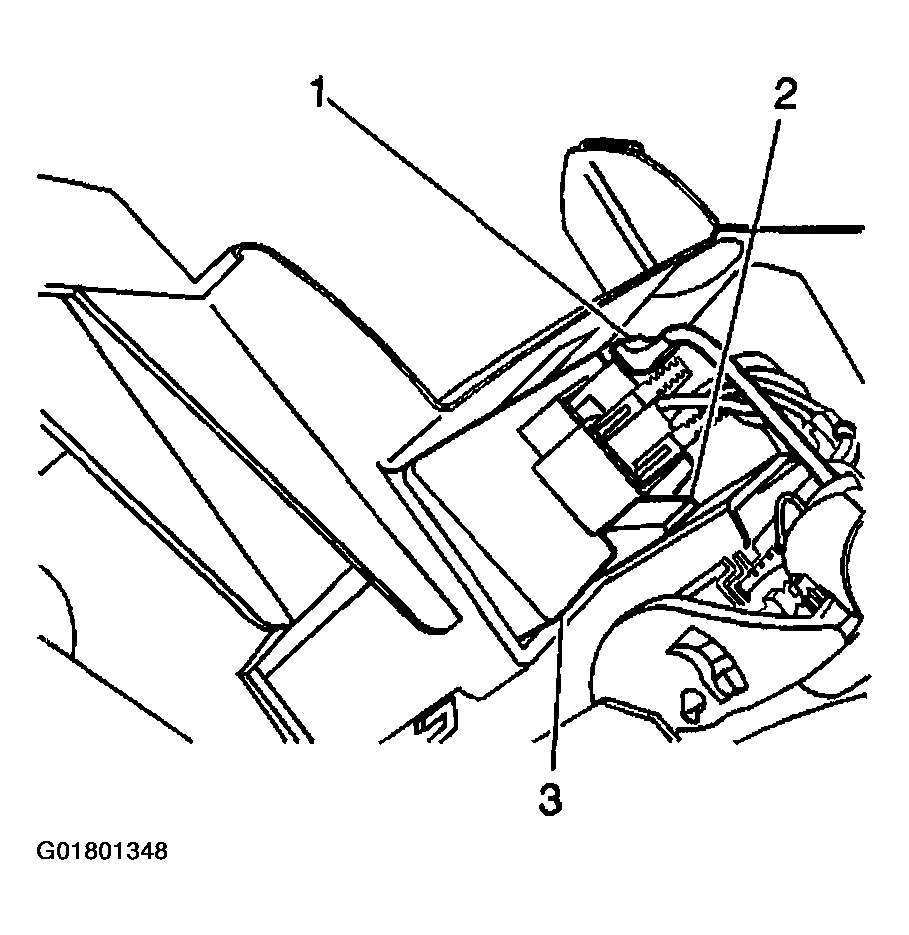

    Fig 1: Disconnecting Theft Deterrent Control Module
    G01801348Courtesy of GENERAL MOTORS CORP.
  4. Slide the theft deterrent module upward out of the Instrument panel retainer.

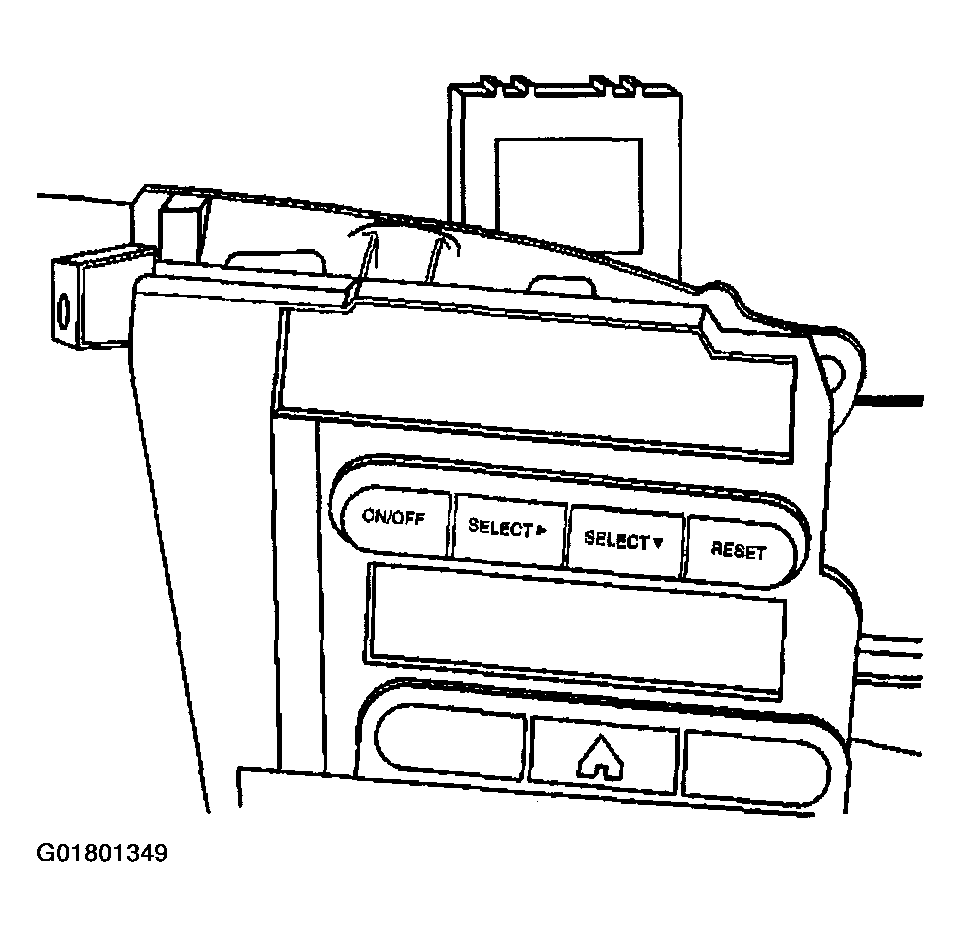

    Fig 2: Removing Theft Deterrent Control Module
    G01801349Courtesy of GENERAL MOTORS CORP.
