Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the liftgate.
  2. With an assistant, install the liftgate window to the liftgate by locating on pins and sliding to the right.

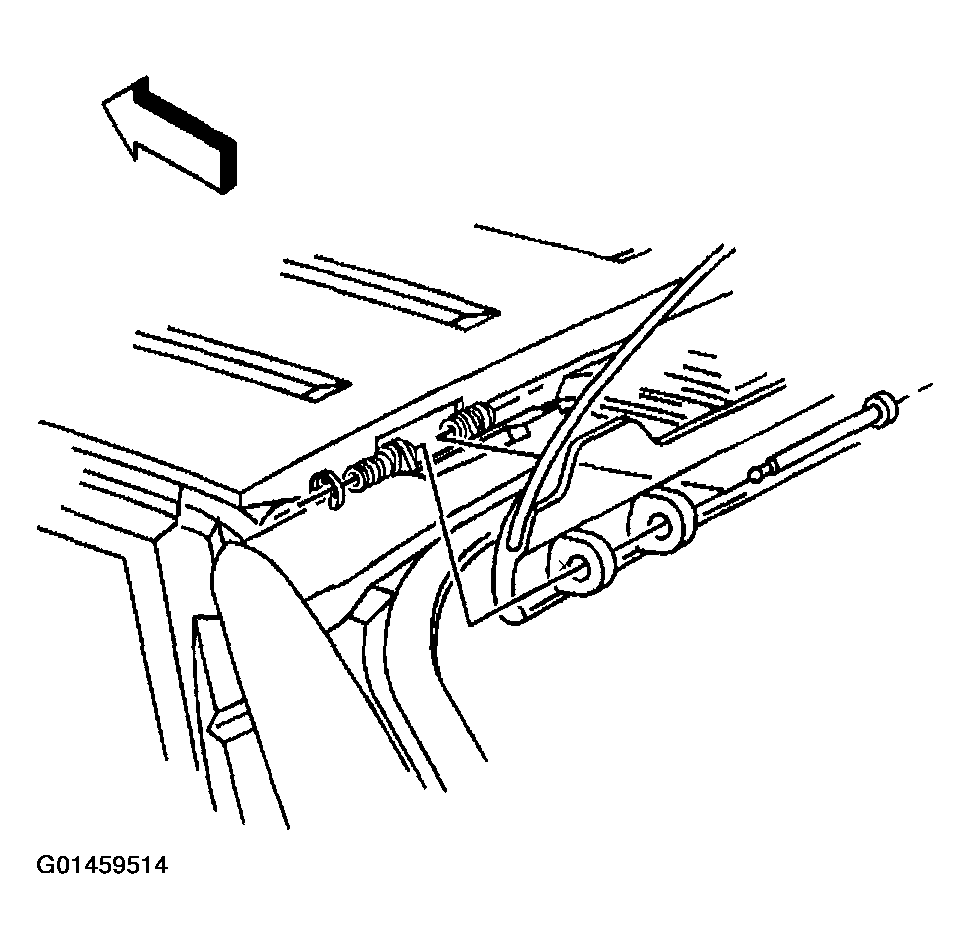

    3. Fig 1: Installing Liftgate Window Struts
    G01459514Courtesy of GENERAL MOTORS CORP.
  3. Open the liftgate.
  4. With an assistant, install the new liftgate window hinge pin retainers. Close the liftgate and open and support liftgate window.
  5. Install the liftgate window struts. Refer to STRUT REPLACEMENT - LIFT GATE WINDOW  .
  6. Connect the liftgate window defogger electrical connectors, if equipped.
  7. Remove the support and close window.
