Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center console trim plate (2). Refer to TRIM PLATE REPLACEMENT - CONSOLE in Instrument Panel, Gages and Console.
Disconnect the traction control switch electrical connector.
Remove the traction control switch (5).

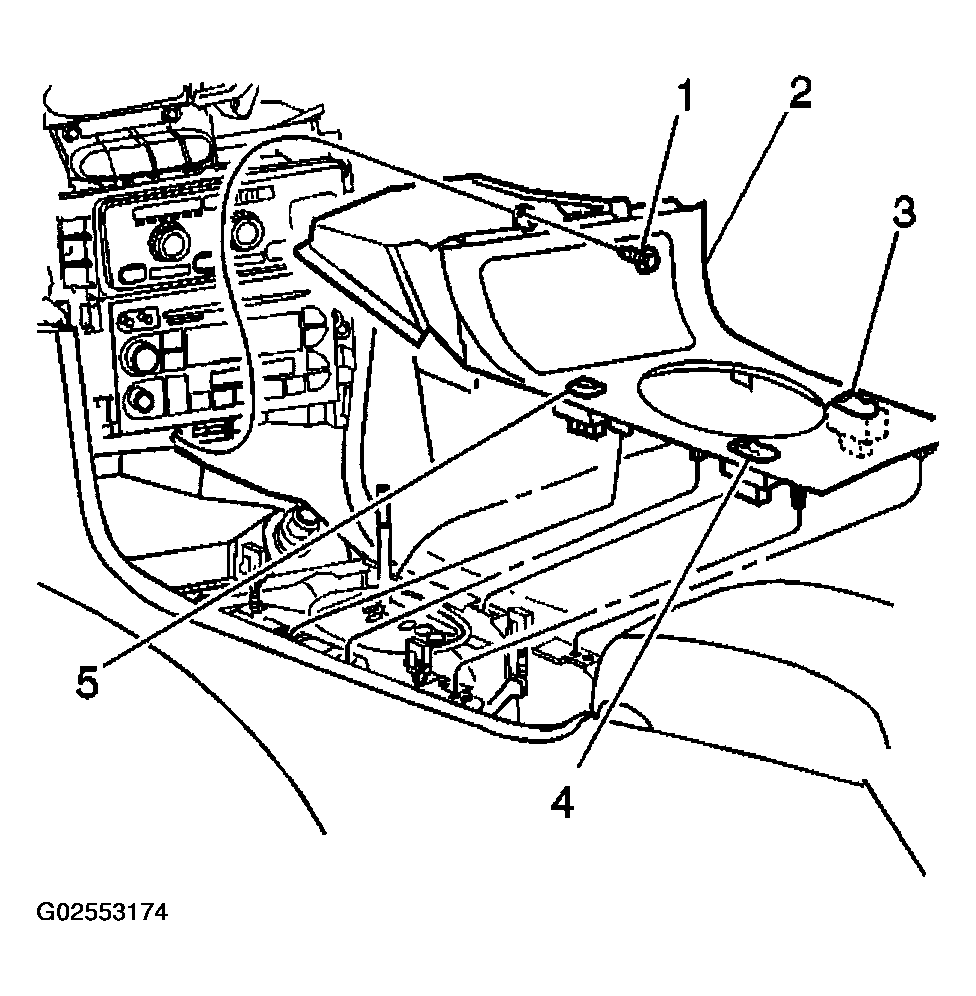

Fig 1: Removing & Installing Center Console Trim Plate & Traction Control Switch

Courtesy of GENERAL MOTORS CORP.
