Removal Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
- Turn OFF the ignition.

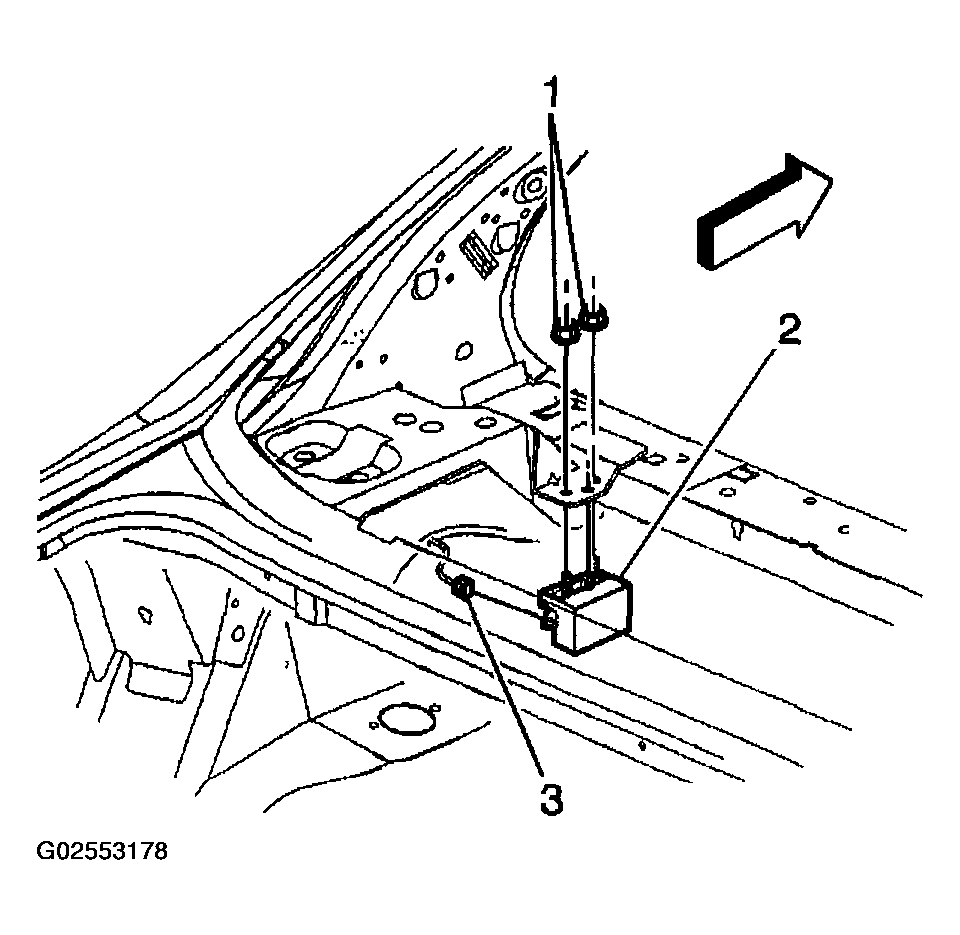

- Remove the 2 yaw rate sensor mounting nuts (1).
- Remove the yaw rate sensor (2).
- Disconnect the yaw rate sensor electrical connector (3).
Courtesy of GENERAL MOTORS CORP.
