HVAC Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

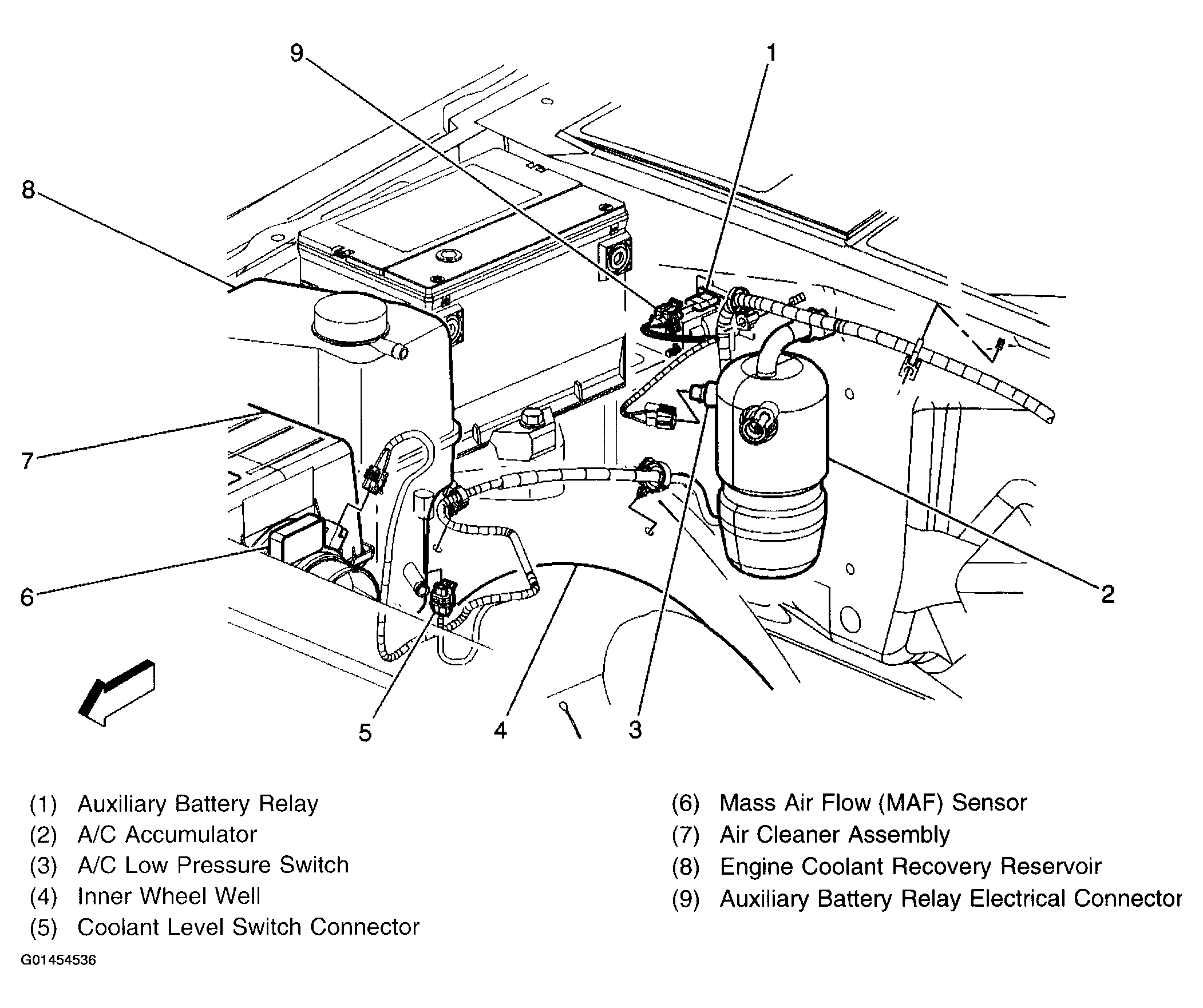

Fig 1: Identifying Component Of A/C Low Pressure Switch And A/C Accumulator

G01454536

Courtesy of GENERAL MOTORS CORP.

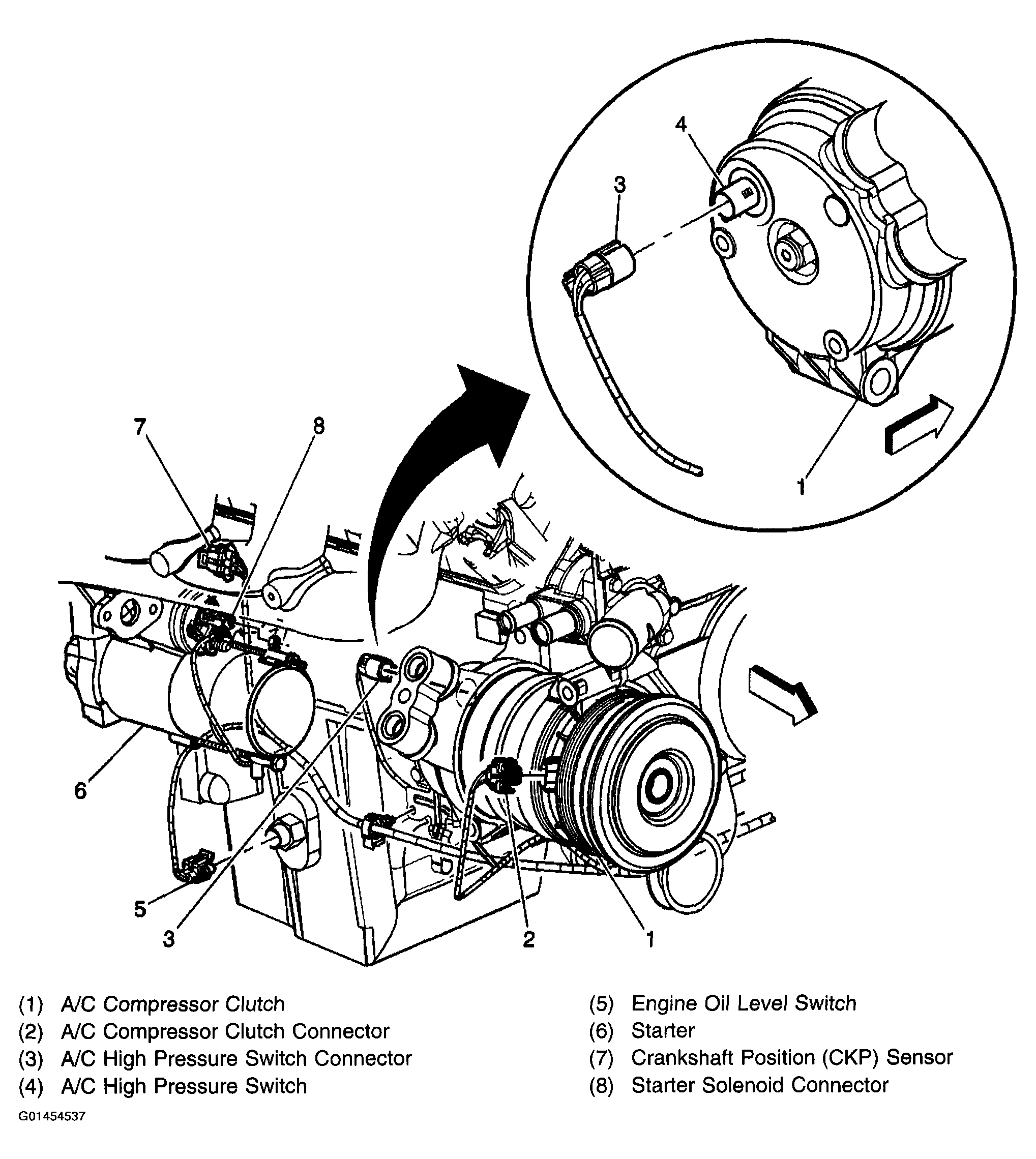

Fig 2: Identifying A/C Compressor High Pressure Switch And Connector - A/C Compressor Clutch -4.8L, 5.3L, 6.0L

G01454537

Courtesy of GENERAL MOTORS CORP.

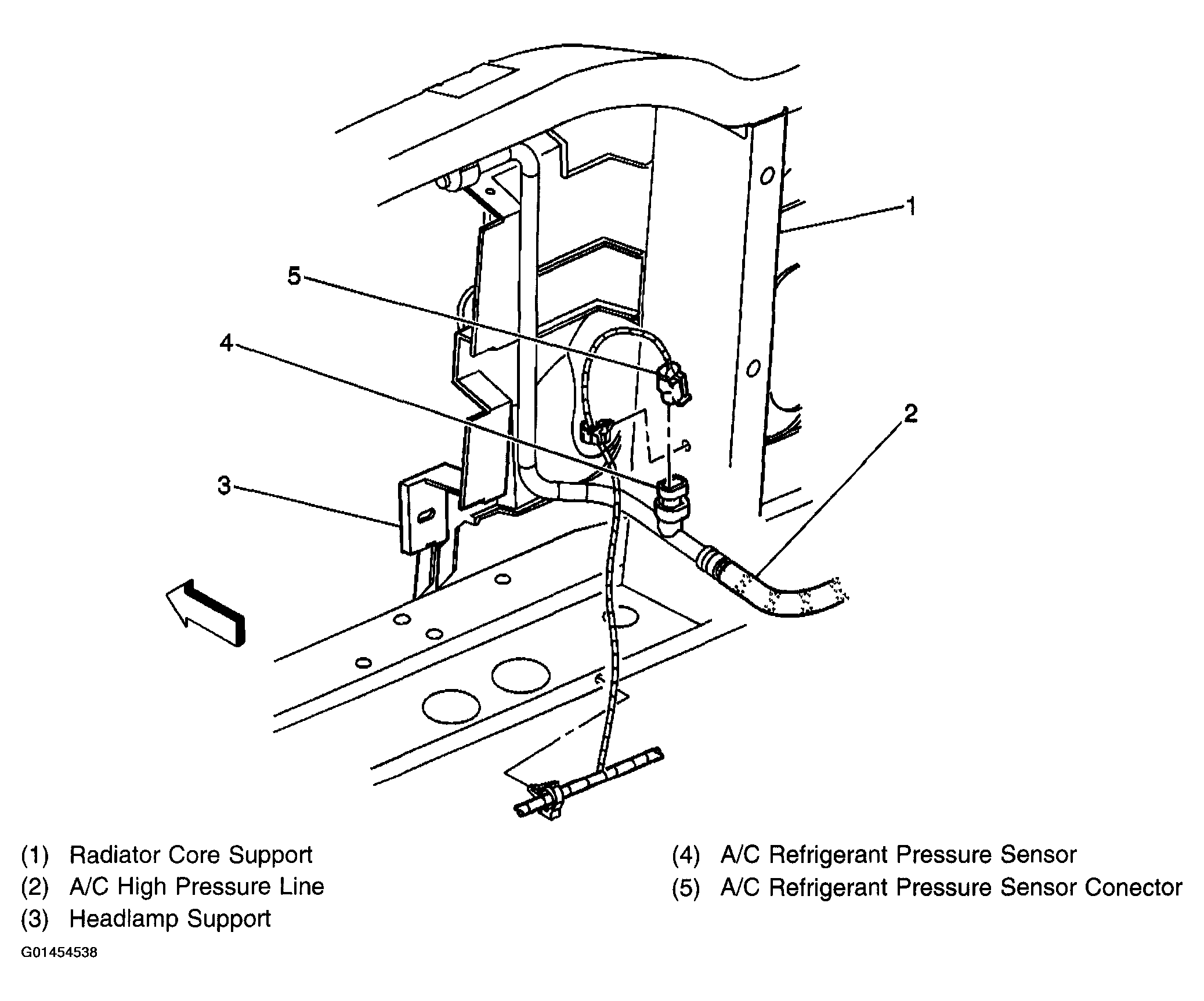

Fig 3: Identifying A/C Refrigerant Pressure Sensor

G01454538

Courtesy of GENERAL MOTORS CORP.

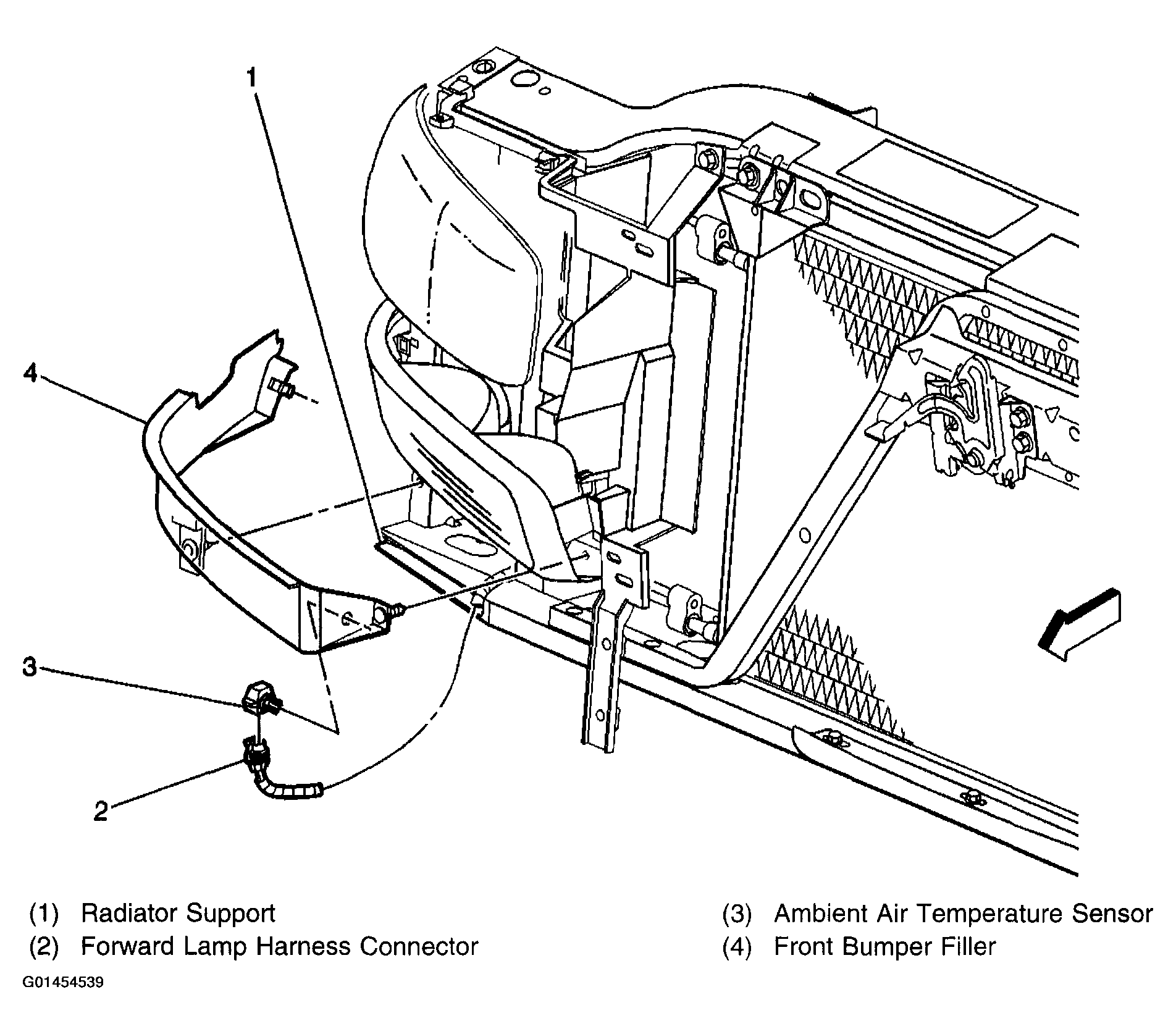

Fig 4: Identifying Ambient Air Temperature Sensor

G01454539

Courtesy of GENERAL MOTORS CORP.

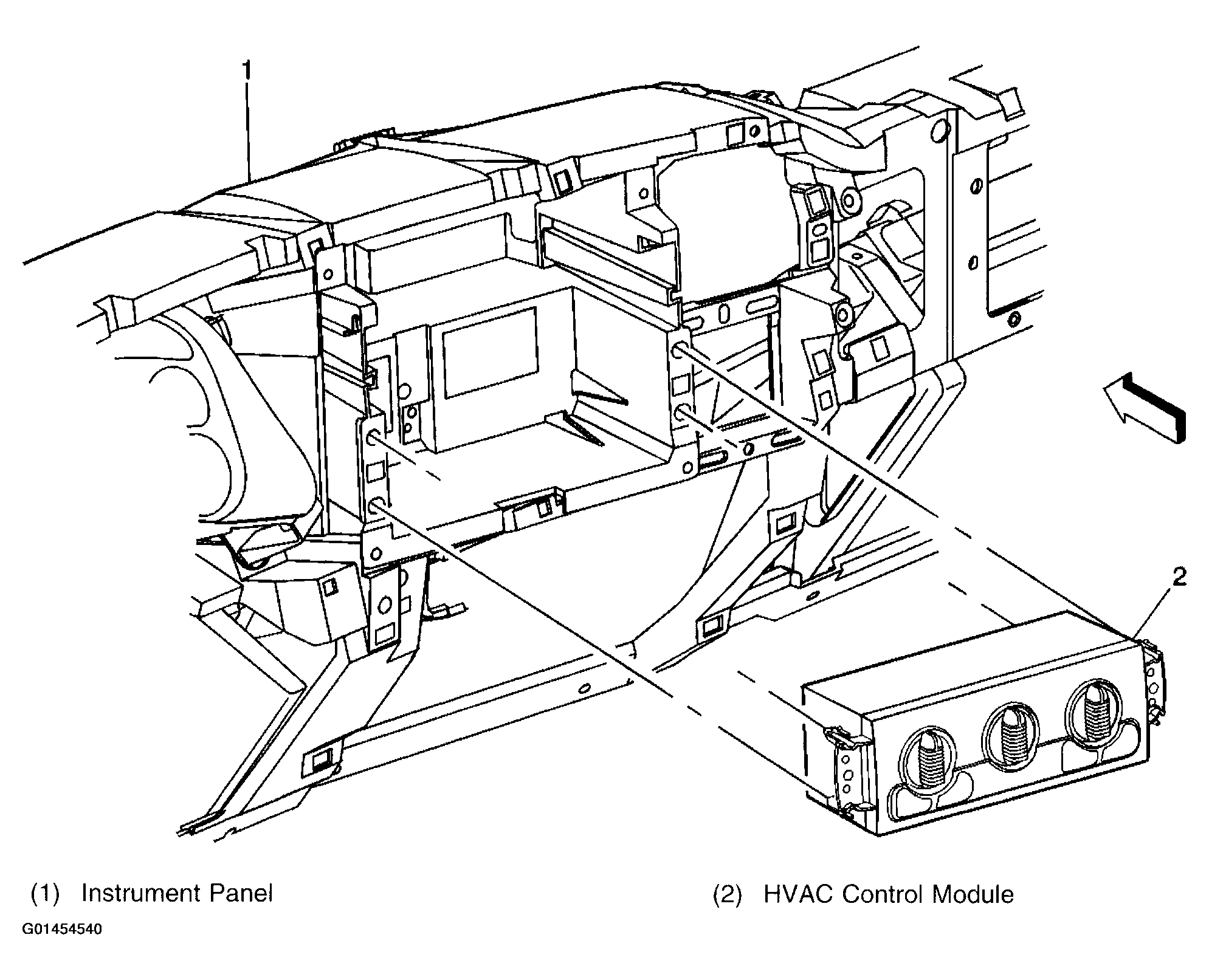

Fig 5: Identifying HVAC Control Module

G01454540

Courtesy of GENERAL MOTORS CORP.

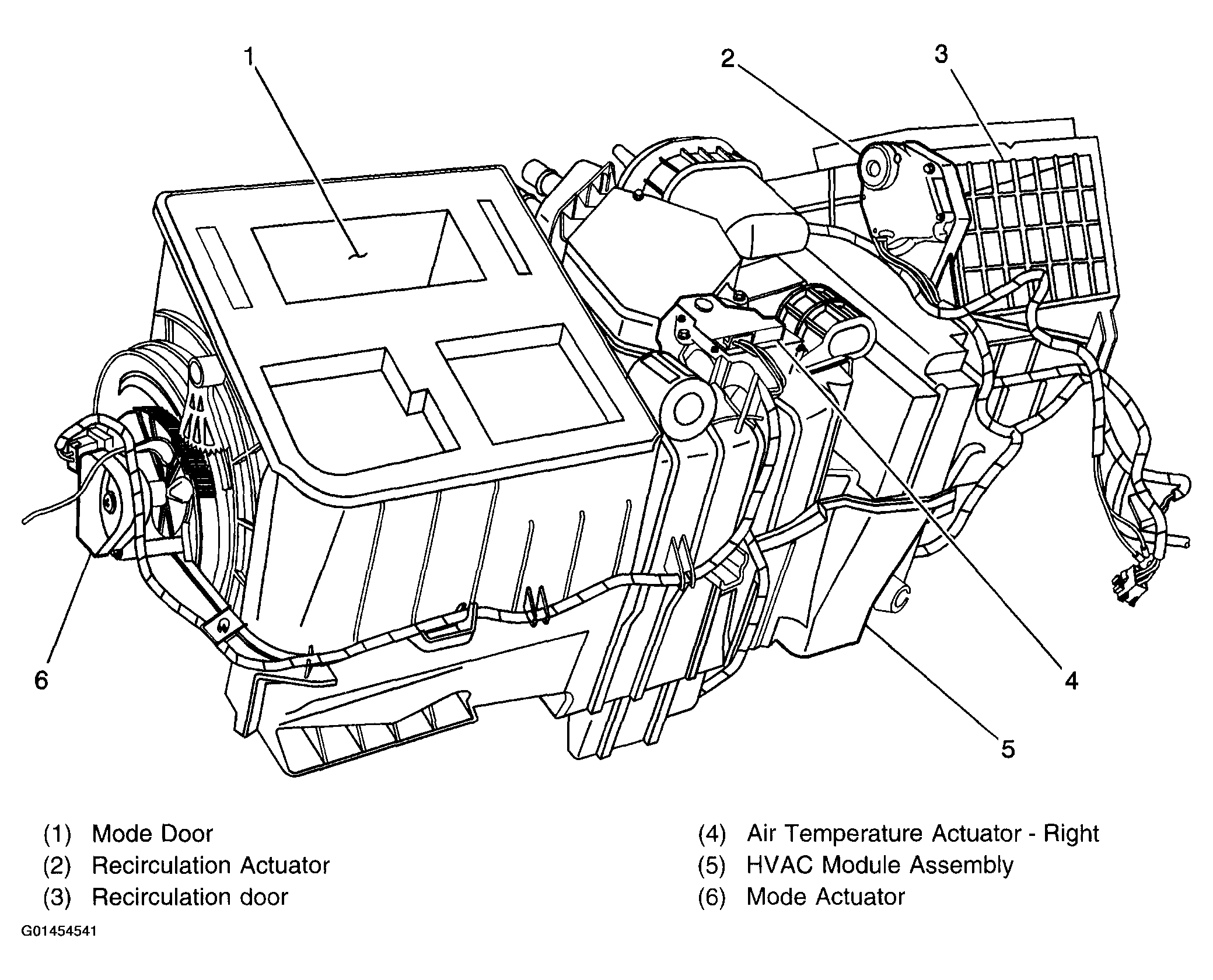

Fig 6: Identifying HVAC Module Assembly - Top

G01454541

Courtesy of GENERAL MOTORS CORP.

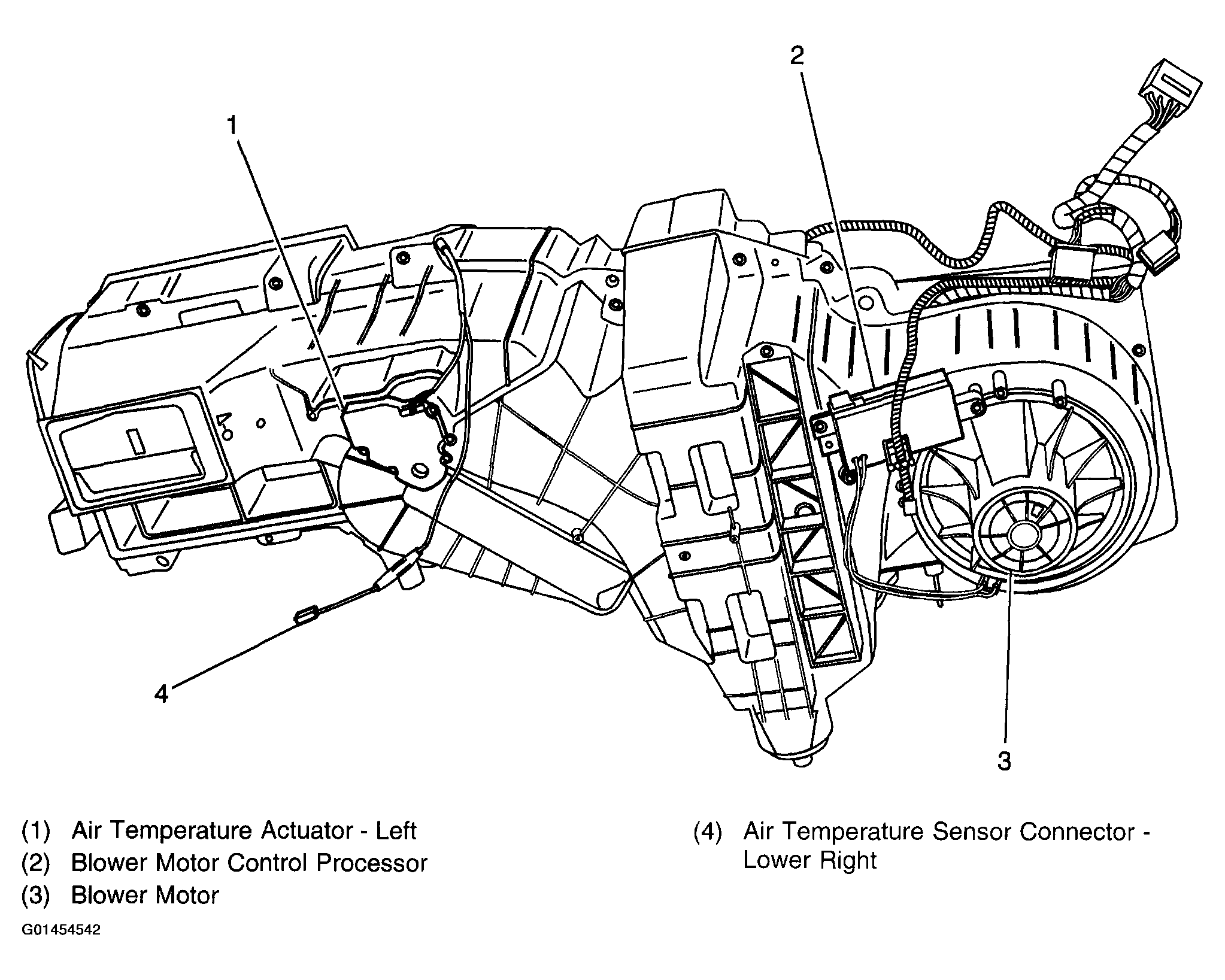

Fig 7: Identifying HVAC Module Assembly - Bottom

G01454542

Courtesy of GENERAL MOTORS CORP.

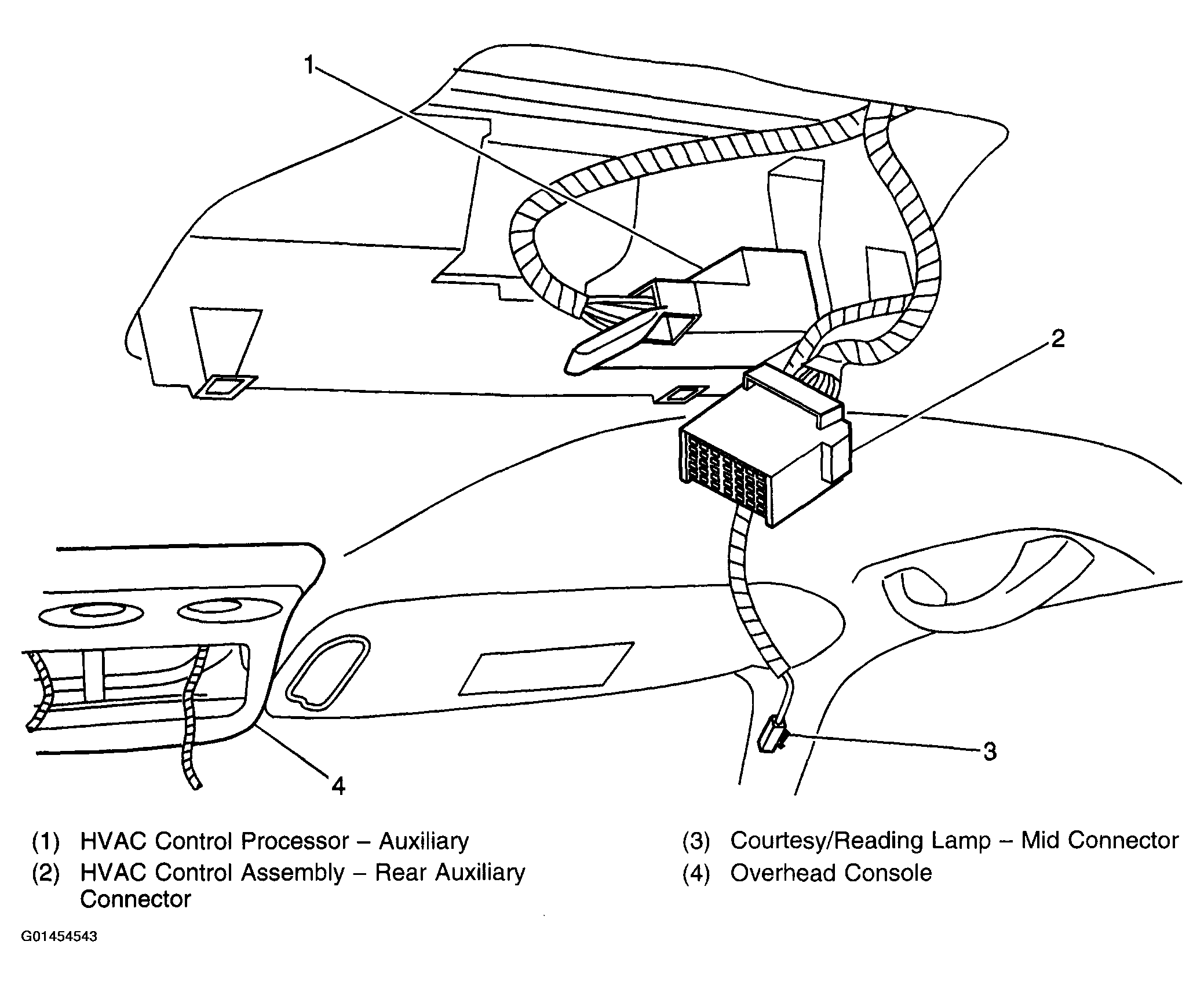

Fig 8: Identifying HVAC Control Processor - Auxiliary

G01454543

Courtesy of GENERAL MOTORS CORP.

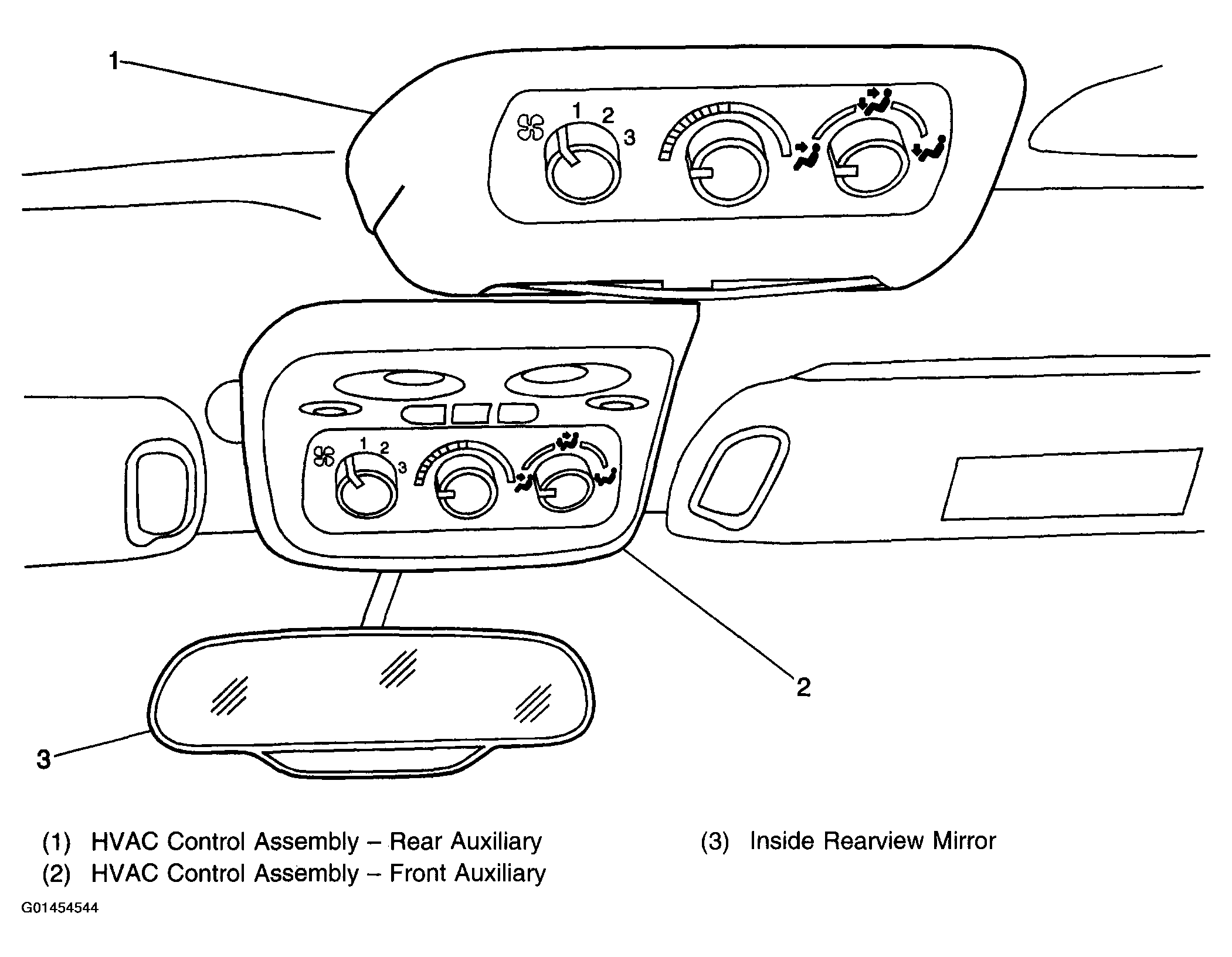

Fig 9: Identifying HVAC Auxiliary Control Assemblies

G01454544

Courtesy of GENERAL MOTORS CORP.

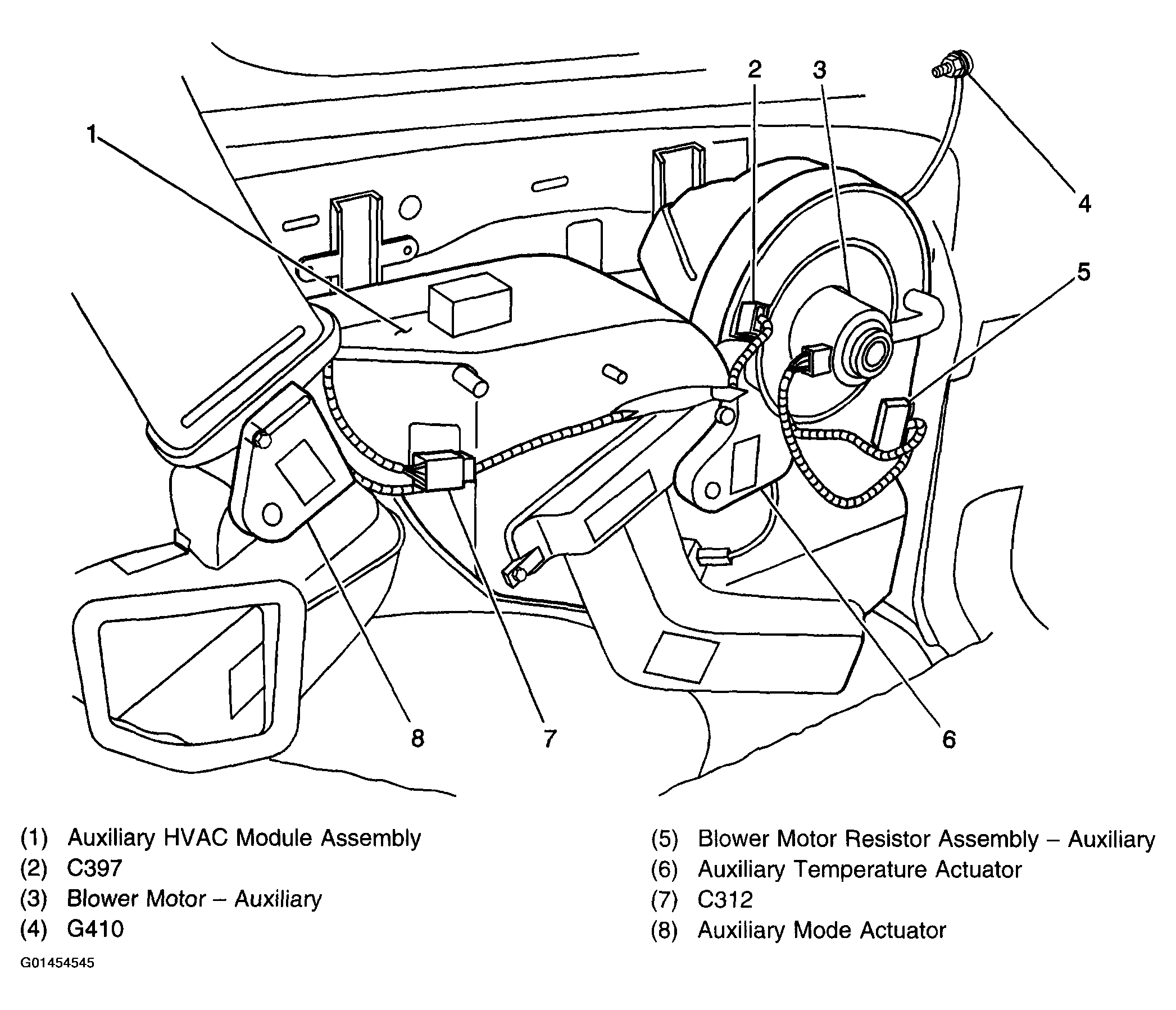

Fig 10: Identifying LR Of Passenger Compartment (Tahoe/Yukon)

G01454545

Courtesy of GENERAL MOTORS CORP.
