Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: The Key should be in the off position when connecting the electrical connectors to ensure proper calibration.
- Connect the electrical connectors to the HVAC control assembly.

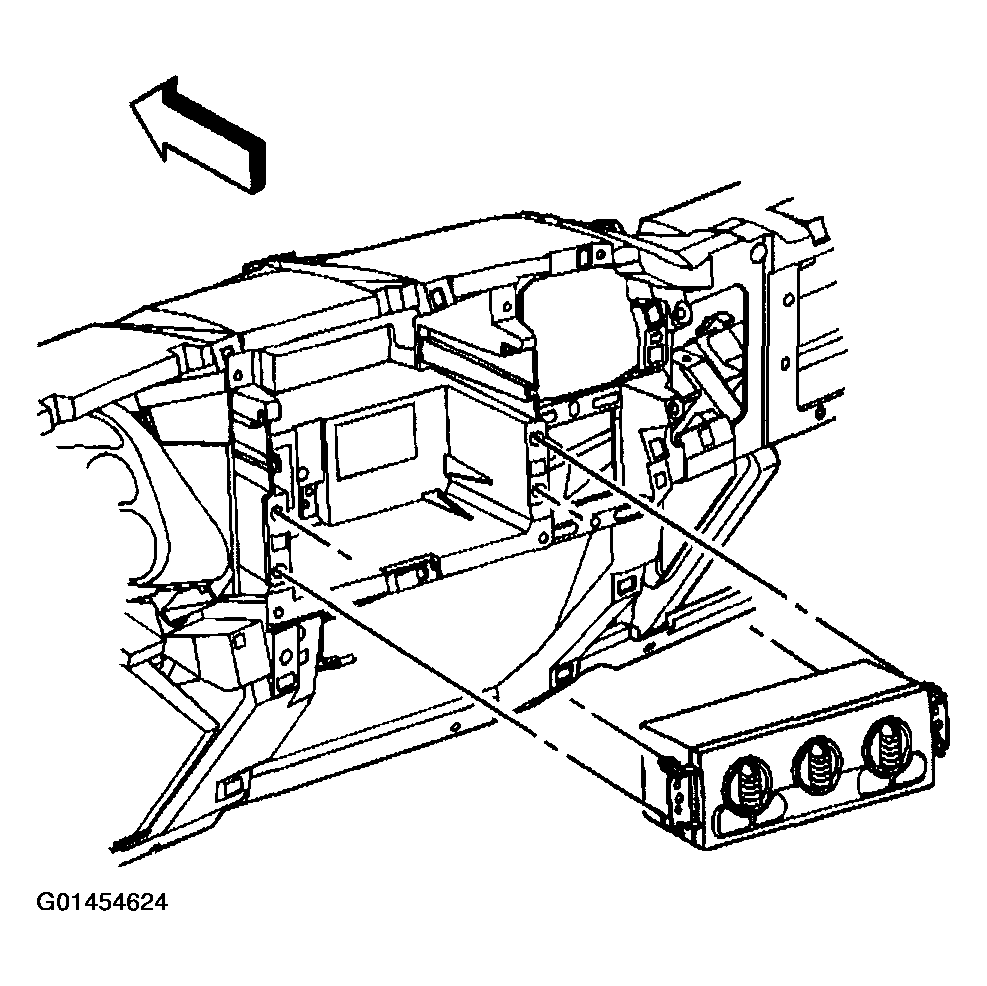

- Install the HVAC control assembly.
- Install the accessory switch assembly to the instrument panel. Refer to ACCESSORY SWITCH REPLACEMENT
in INSTRUMENT PANEL, GAGES, AND CONSOLE
.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the screws from the HVAC control assembly.
Tighten
Tighten the screws to 1.9 N.m (17 lb in).
- Install the instrument panel storage tray.
- Install the instrument cluster trim plate bezel.
Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in INSTRUMENT PANEL, GAGES, AND CONSOLE .
Important: Do not adjust any controls on the HVAC control module while the HVAC control module is calibrating.
If interrupted improper HVAC performance will result.
- Start the vehicle and let run for one minute.
