Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster trim plate bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Remove the instrument panel storage tray.
  3. Remove the accessory switch assembly from the instrument panel. Refer to ACCESSORY SWITCH REPLACEMENT in INSTRUMENT PANEL, GAGES, AND CONSOLE
  4. Remove the screws from the HVAC control assembly.
  5. Remove the HVAC control assembly, with the following procedure:
    1. Release the retaining tabs.
    2. Pull the control head out of the instrument panel carrier.
  6. Disconnect the electrical connectors from the HVAC control assembly.

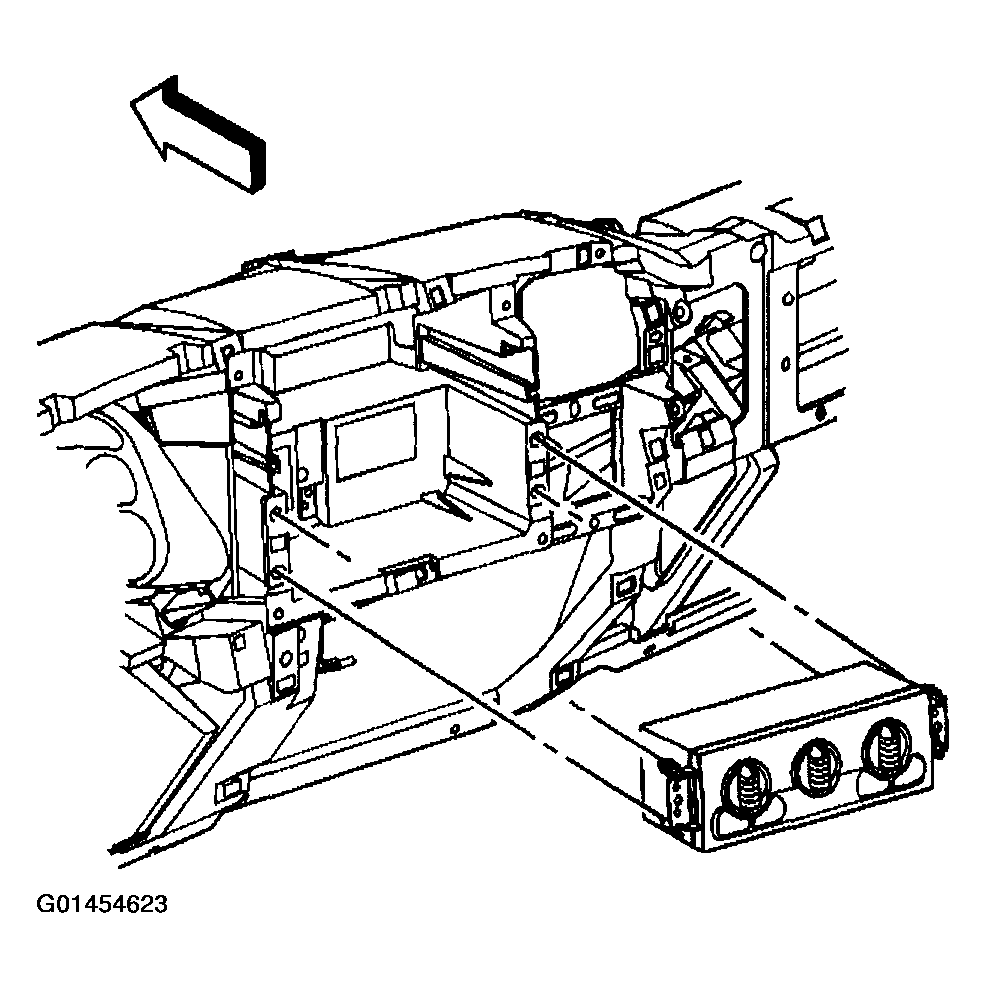

    Fig 1: Removing HVAC Control Module
    G01454623Courtesy of GENERAL MOTORS CORP.
