Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Support the rear axle independently in order to relieve the tension on the leaf springs.
  3. Disconnect the electronic suspension control (ESC) sensors, 25 series utilities, if equipped. Refer to REAR POSITION SENSOR REPLACEMENT--ELECTRONIC SUSPENSION--LEFT (25 SERIES) in Electronic Suspension Control (ESC).
  4. Remove the trailer hitch, if equipped. Refer to Trailer Hitch Replacement in FRAME AND UNDERBODY .
  5. Remove the fuel tank for left side applications. Refer to Fuel Tank Replacement (Single Tank) or Fuel Tank Replacement (Dual Tanks - Front) or Fuel Tank Replacement (Dual Tanks - Rear)   in Engine Controls - 4.8L, 5.3L, 6.0L.
  6. Remove the U-bolt nuts.
  7. Remove the U-bolts.
  8. Remove the spring spacer.
  9. Remove the anchor plate.

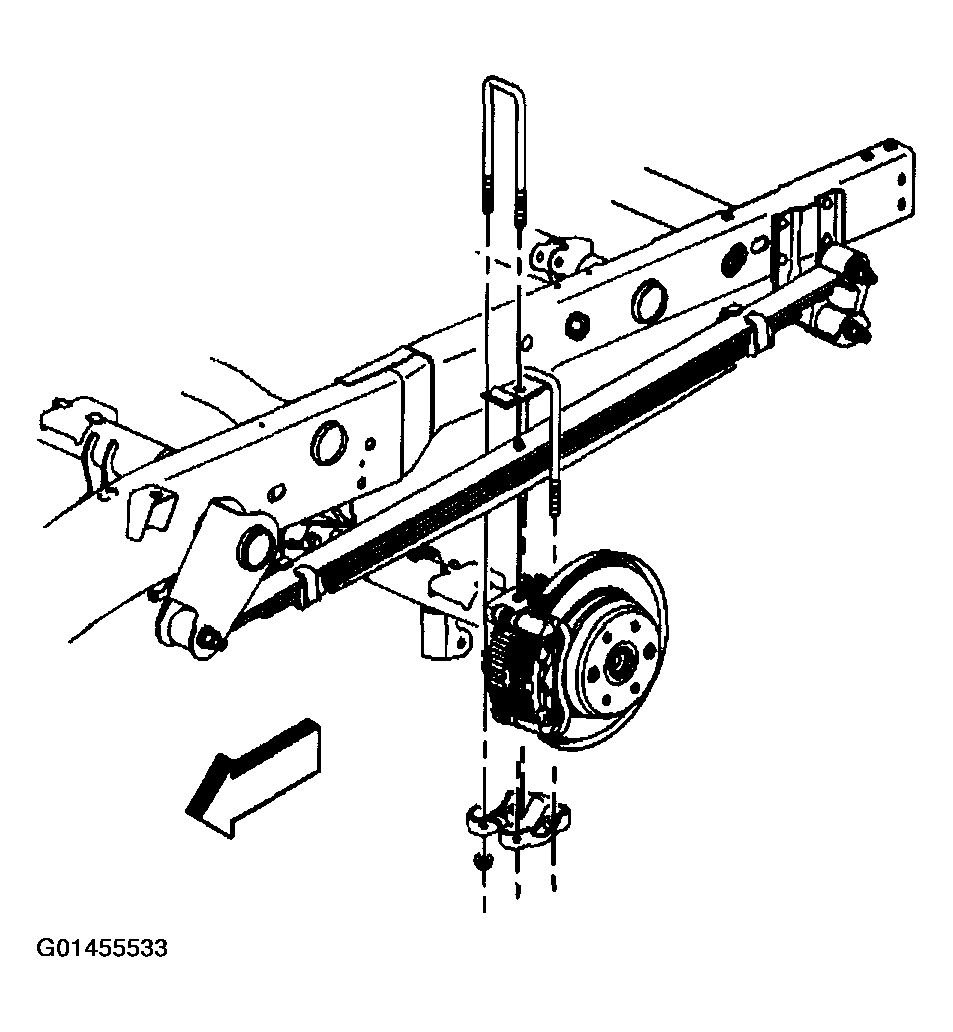

    Fig 1: Removing U-Bolts
    G01455533Courtesy of GENERAL MOTORS CORP.
  10. Remove the rear spring bracket nut and bolt.

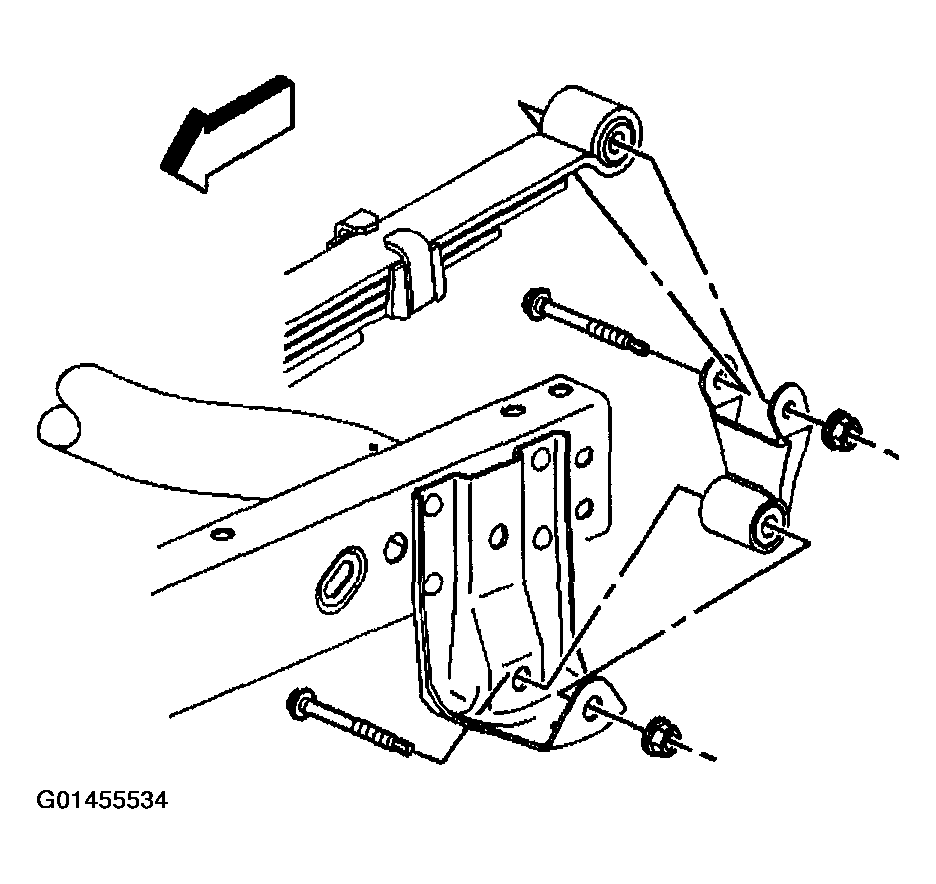

    Fig 2: Removing Rear Spring Bracket Nut And Bolt
    G01455534Courtesy of GENERAL MOTORS CORP.
  11. Remove the front spring bracket nut and bolt.
  12. Remove the leaf spring assembly from the vehicle.

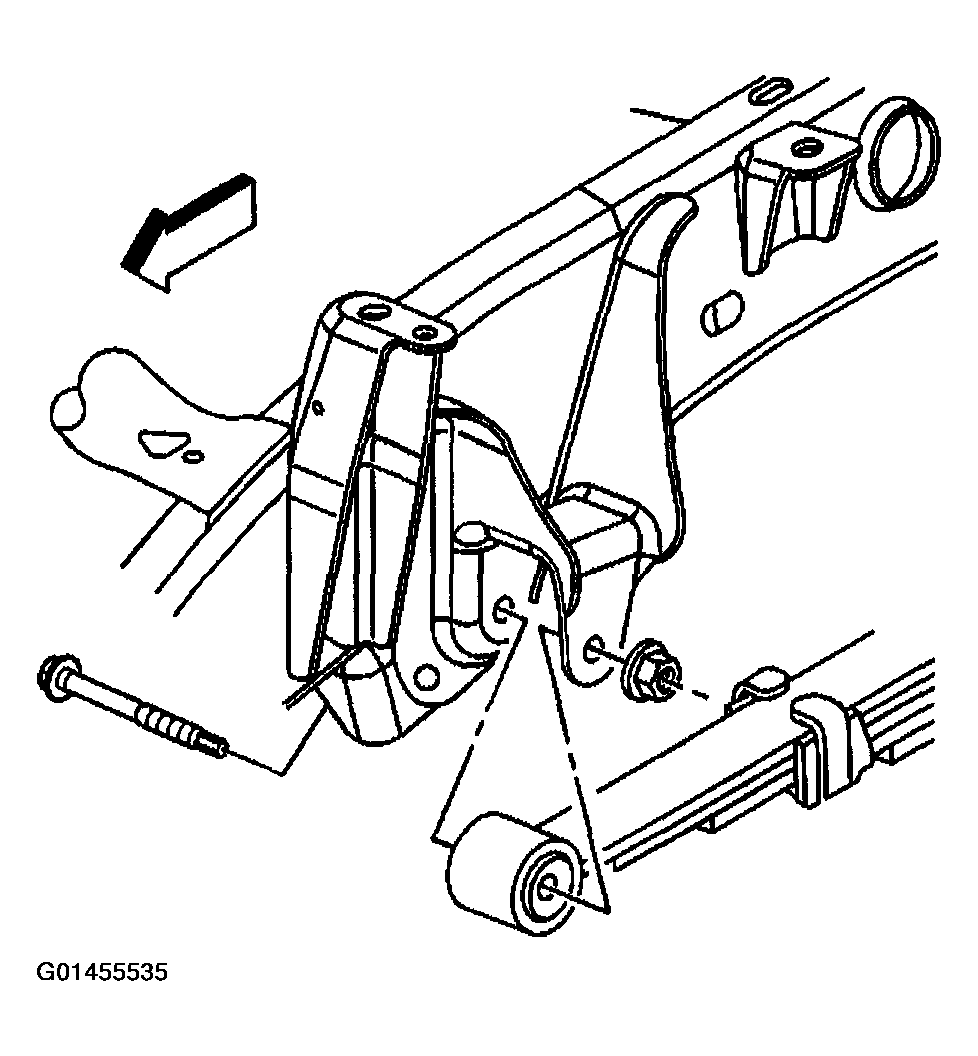

    Fig 3: Removing Front Spring Bracket Nut And Bolt
    G01455535Courtesy of GENERAL MOTORS CORP.
