Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the jounce bumper mounting bolt.
Remove the jounce bumper. The 15 series utilities are snap fit.

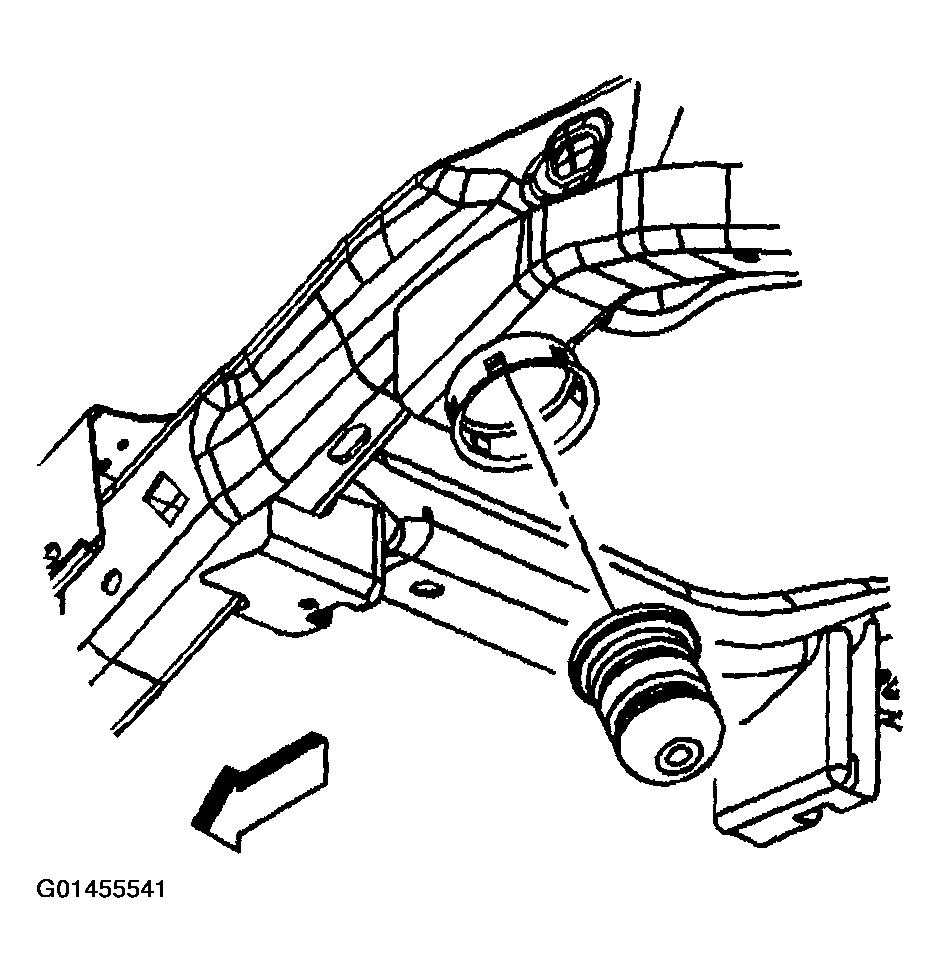

Fig 1: Removing Jounce Bumper
Courtesy of GENERAL MOTORS CORP.
