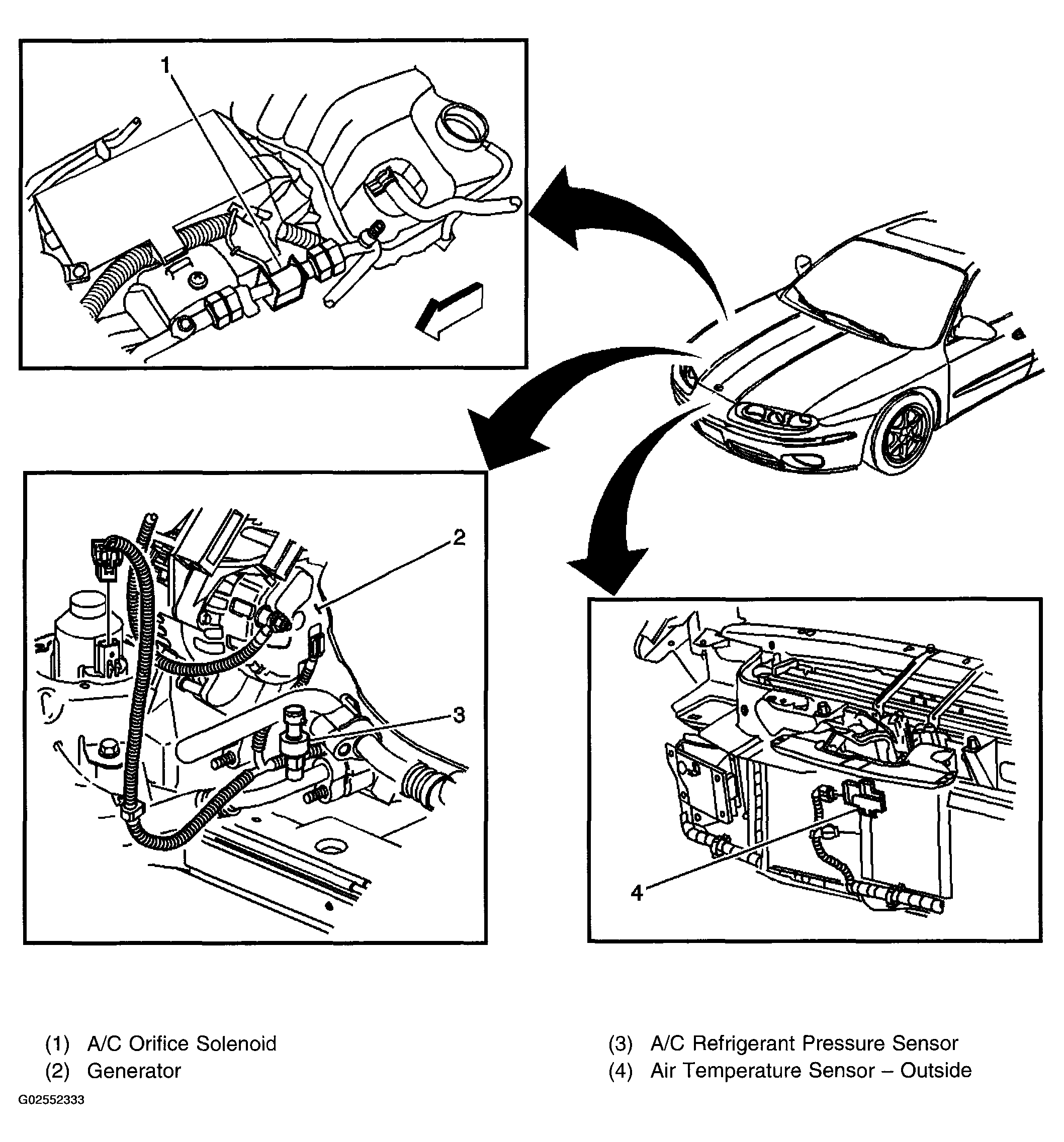

Fig 1: Locating HVAC Components In Engine Compartment
Courtesy of GENERAL MOTORS CORP.

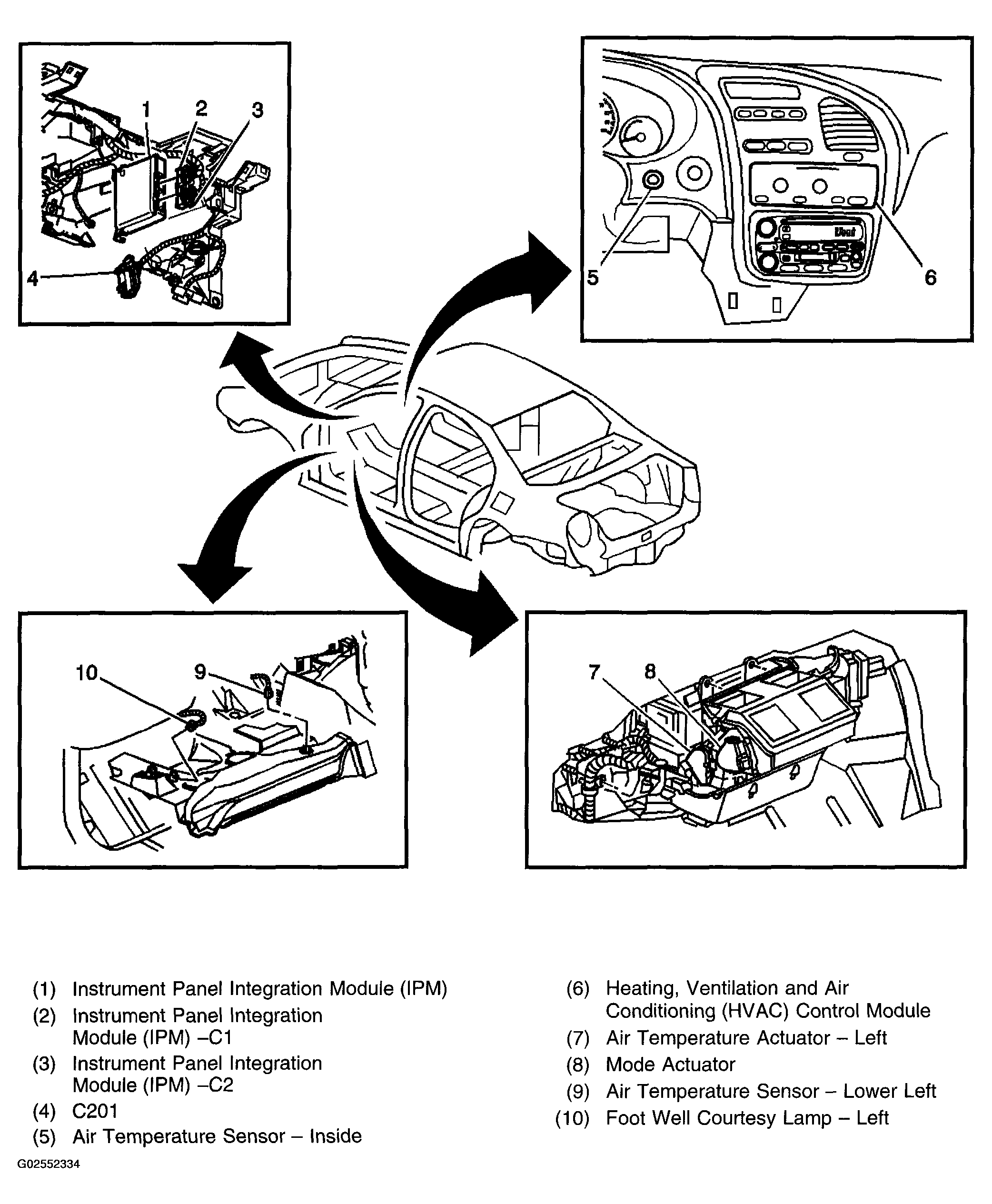

Fig 2: Locating HVAC Components At Left Side Of Interior
Courtesy of GENERAL MOTORS CORP.

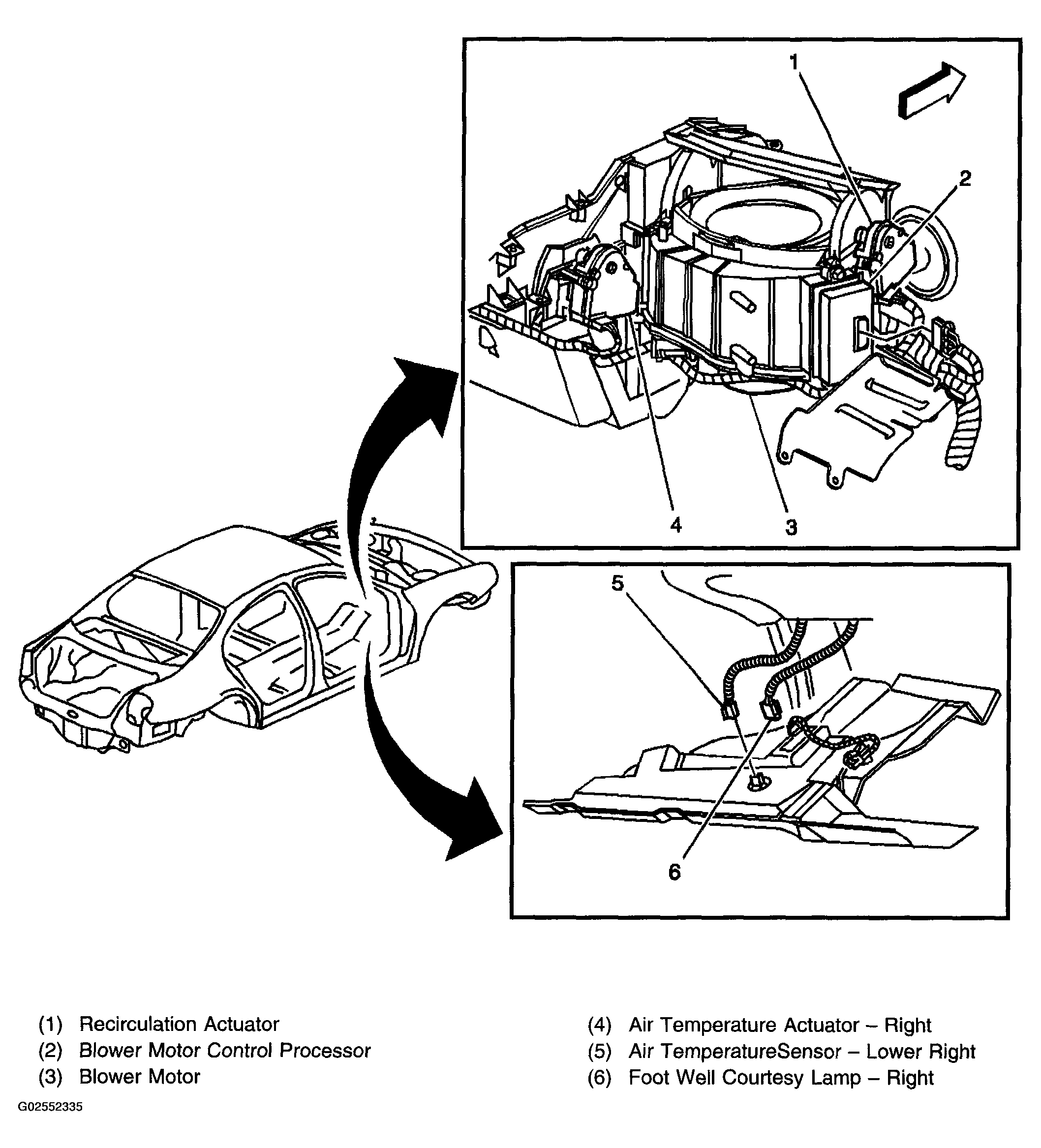

Fig 3: Locating HVAC Components At Right Side Of Interior
