Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right closeout panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT In Instrument Panel, Gages and Console.
  2. Remove the instrument panel compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages and Console.
  3. Remove the dash integration module (DIM) from the bracket and position aside.
  4. Remove the rear DIM bracket screws and lower the bracket enough to access the blower motor control processor.
  5. Disconnect the electrical connector (1).

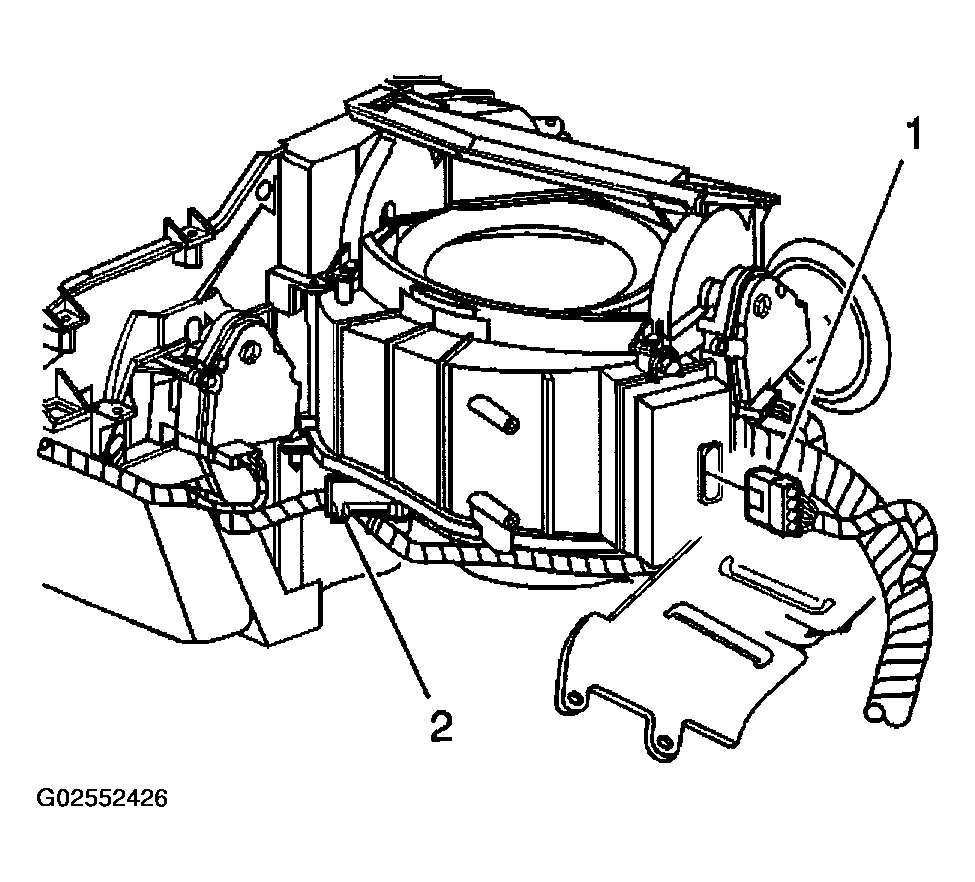

    6. Fig 1: Disconnecting Electrical Connector
    G02552426Courtesy of GENERAL MOTORS CORP.
  6. Remove the blower motor control processor retaining screws.
  7. Remove the blower motor control processor.
